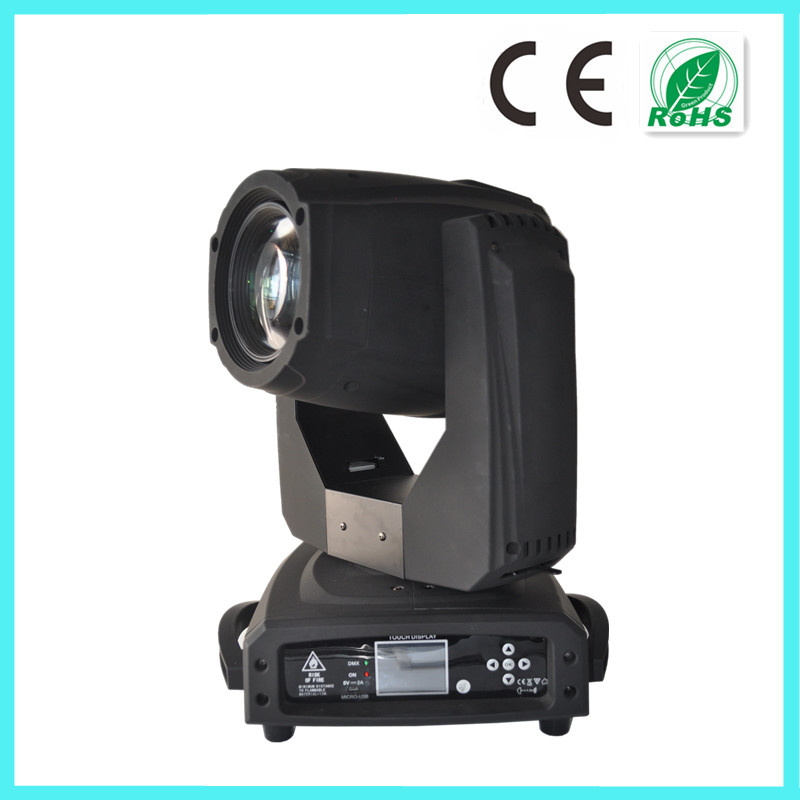

330W Beam Spot Wash Moving Head Light
Techical Paramters:
Lamp: YODN 330W Original Lamp, average life span 1500H
Color Temperature: 6585K
Power Consumption: 660W
Voltage: 100 - 240V/ 50 - 60Hz
Ballast: electronic ballast
Beam Spot angle: 2.50-180 beam,40-200 spot
Color wheel:
1 fixed color wheel with 14 filters +white,half-color effect ,unidirectional flowing
Static gobo:
1 fixed gobo wheel with 16 interchangeable gobos +white, gobo shaking, and unidirectional flowing
Dynamic Gobo:
1 rotate gobo wheel with 8 interchangeable gobos, gobo shaking, and unidirectional flowing
Pan/Tilt Movement:
pan scanning angle 540° (8/16-bit resolution)
tilt scanning angle 270° (8/16-bit resolution)
The magnetic positioning system, can automatically correct X-axis precision / Y axis position, horizontal and vertical band photoelectric switch detection, accidental malfunction automatically homing
Atomization: 1 independent atomizing effect, soft natural light spots
Linear dimming: 0-100% mechanical linear dimming
Fast shutter: strobe switching 0.5 - 14 times per second, full-scale fast strobe
Effect:
2 independent rotating prisms
1pcs 16-facet circular prism, bi-directionally rotate
1pcs 4-facet liner prism, bi-directionally rotate
Control channel: DMX 512 control channel, 16 CH
Protection:
Lamp power intelligent control, shutter closing time reaches 30 seconds, automatically lowering the lamp power
Overcurrent, overvoltage, overtemperature protection
Built-in lamp overheat protection
Display interface: 2.8-inch TFT LCD touch screen, Chinese and English interface
IP Rating: IP20
Product Dimension: 480 x 450 x 610mm
Weight: 24.0Kg
Packing :
flight case or carton( Accessories include: 1pcs user manual, 1pcs safety string, 2pcs clamp, 1pcs
1.5-meter-long signal wire)
Trade terms
MOQ | 1 pcs |
| Price term | FOB / EXW / CIF |
| Payment terms | T/T , Western union , Cash |
| Package | Carton box / Flight case |
| Delivery time | For sample order: about 3 - 5days after payment
For big order : about 5-15days after payment |
| Shipping | By air , By sea ; By express : DHL / UPS / Fedex/EMS |
| OEM | We accept OEM order |
| Warranty | Two years |
| After sells service |
If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what's problem about the product, we will try our best to help you .if the problem can use the part to solve ,we will offer you the replacement for free Within 1 year.
|
Guangzhou CN Eagle Lighting Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments.
The main products include moving head beam, LED stage light, follow spot, LED PAR Lights etc.
We own a professional R&D team, who has about 10 more years experience in stage lighting.
Our sales team can provide best service by engineers and technical staff members' supporting.
Most of our products have passed CE quality management system standard as well.
There are numerous domestic projects we have been undertaken, was praised by all the customers.
Our main products are 200W/230W/280W/330W 5r/7r/10r/15r moving head beam, 19 X 15W bee eye LED moving head, 36/37 X 15W LED moving head, 54 X 3W LED PAR/ non-waterproof LED PAR,
8 X 12W LED moving spider light etc,
Our lighting are suitable for stage event, concert, studio, night club, disco, architectural, karaoke television we currently provide comprehensive service and customer support to over 40 international countries and regions.
We offer high quality products, best after-sales service, fast shipment.
Customer First! We always strive to exceed the customer's expectation. We go thogether to become the leading stage lighting supplier on a global maket.
