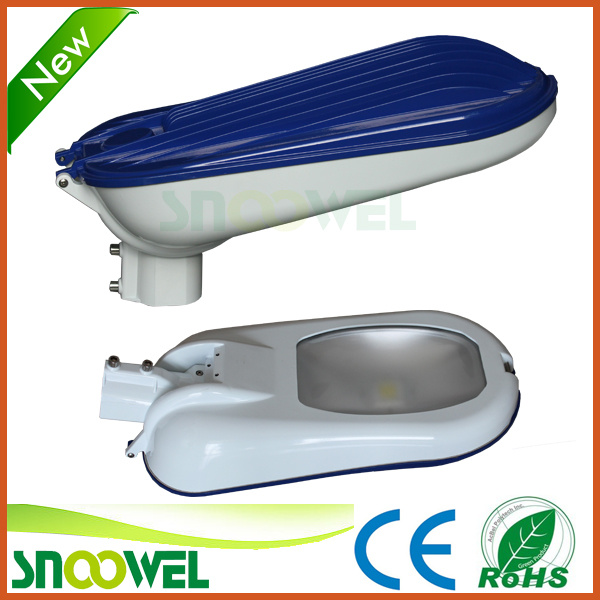

Main features of this LED street light:
The installation direction can be adjusted; in other words, it is suitable for both horizontal and vertical pole.
Specifications of this LED street light:
1. Model No.: SW-SL008-W70, 30w, 40w, 50w, 60w, 70w can be made with this design;
2. Operating voltage: AC85-265V, AC277V, DC12/24V;
3. Lumens: 100-110LM / w;
4. IP65, can be used outdoor directly;
5. With one piece 70w COB led array; BridgeLux 45MIL led chip, highly bright, low lumen decay;
6. UL listed Mean Well driver;
7. PF: over 0.97;
8. Certificates: CE, RoHS;
9. Warranty: 3 years.
|
ITEM: |
SW-SL008-W70 |
|
Input Voltage: |
85-265V, AC277V, DC12-24V(for solar) |
|
Frequence Range: |
50-60Hz |
|
Power Factor: |
>0.97 |
|
LED working Voltage: |
DC30~34V |
|
LED quantity: |
1 piece 70w COB led array |
|
Led Consumpution: |
70w |
|
Total System Consumpution: |
78w |
|
Led Luminous: |
100-110Lm/w |
|
Led Initial Flux: |
>7000Lm |
|
Color Temperature: |
Warm white(2700-3500K), Pure white(4000-5500k), Cool White(6000-7000K) |
|
Color Rendering Index: |
Ra>78 |
|
Beam angle: |
120 ° |
|
LED Junction temperature: |
<50°C |
|
Working Temperature: |
-40 °C ~+55 °C |
|
Working Life-span: |
50000hours |
|
Certificates: |
CE(EMC, LVD), RoHS, FCC, IP65 |
|
Gross weight: |
7.5KGS |
|
Packing size: |
32*66*25CM |
