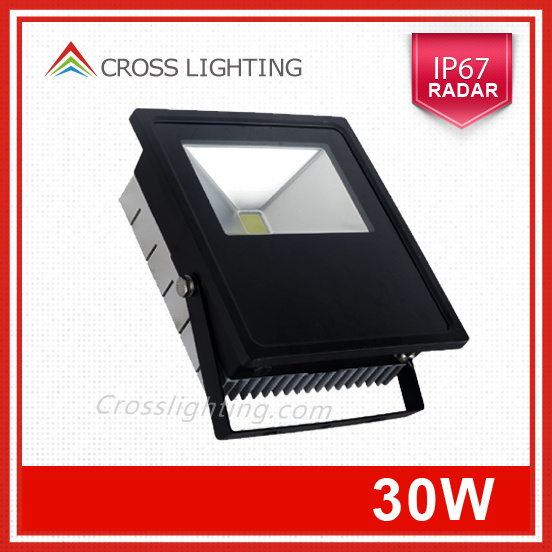

IP67 30W Sensor Light with CE/sensor flood light/sensor lamp, our LED sensor light is good to use, welcome to buy led sensor light from us, thanks.
Product Superiority
--Aluminum die-cast al loy body and toughened glass, durable and completely corrosion resistance.
--Floodlight with Good heat dissipation performance.
--Floodlight IP rateing is up to IP67.
--Floodlight with High utilization of power, PF ≥ 0.9.
-- Floodlight is Compared with traditional ones, Energy-saving percentage: 60%.
--Use 1PCS Integrated high-power (COB).
--Service life over 30000 hours.
--CE Certified.
Operating Environment & Characteristic
Input Voltage: 100-240V AC; 50/60Hz.
Max Current: 0.75A
LED type: Integrated high-power (COB)
LED Number: 1 pieces
Output Power: 10W
Shel l color: Gray painting
Integrated high-power (COB)
LED Floodlight Main Appl ications:
Bars, restaurants, clubs, hotels, stages
Historical and modern bui ldings
Museums, art gal leries
Sculptures and plastic arts
Why to choose us?
* Your enquiry will be replied in 12hours.
* High-quality staffs will serve you in fluent English
* product can be made as per your request.
* All your private information can be protected.
* Strong supply capacity can help you enlarge your market.
ing power supply with constant voltage constant current isolation type, and lightning protection, over-voltage, over-current, over temperature, short circuit protection, drive more stable, higher conversion efficiency.
|
Electrical parameters |
|
Input Voltage(AC,V) |
100-240 V |
|
Input current |
- mA |
|
Frequency |
50/60Hz |
|
Light modulation(yes/no) |
no |
|
Power Consumption, Psystem |
30 W |
|
Power factor |
≥0.9 |
|
Output Voltage(DC) |
28-43 V |
|
Output current |
1050 mA |
|
Optical parameters |
|
CCT |
Luminous Flux |
Color Rendering Index (CRI) |
Luminous Efficiency |
Beam Spread Angle |
H/3m Beam Spread Area |
|
|
|
2700K~3200K |
≥-Lm |
≥- |
≥-Lm/W |
- ° |
- m |
|
3800K~4300K |
≥-Lm |
≥- |
≥-Lm/W |
- ° |
- m |
|
5500K~6500K |
≥2550Lm |
≥70 |
≥85Lm/W |
30°/ |
- m |
|
60*120°/ |
|
100*120° |
|
Notes: Tolerance of Lumen:±10% |
|
Structure parameter |
|
Lamp material |
aluminum alloy |
|
Lampshade material |
tempered glass |
|
Outline Dimensions (L×W×H) |
176*166*57mm |
|
IP Grade |
IP 67 |
|
Installation mode |
fixed |
|
N.W. (Kg) |
1.3Kg |
|
One piece per package(L×W×H) |
185*175*100 mm |
|
G.W.(Kg) |
1.5Kg |
|
Manner of packing (L×W×H) |
535*360*205mm 10pcs/CTN |
Guangzhou Crosslighting Co.Ltd is established on the basis of Poinmark Lighting (founded in 1989) which is professional manufacture of LED flood light, LED high bay light, LED street light, we have all kinds of product, reliable product quality, advanced production equipment, sophisticated detection equipment.Comprehensive technology, also have the design of electronic circuit, heat radiation, optics, and the waterproof of outdoor lights.We adopt the project of Sanken and Xiantong for Our Electronic circuit, using A6063 aluminum to heat radiation which heat transfer coefficient can reach 209W/M-K, waterproof using suction principle, can reach IP67 on the premise that only use sealing ring without glue.The two light distribution can be done well as per request by ourselves.Our major business is exporting.
