1. Use High power Single COB LEDs as light source. High Luminous Effeciency, long life span.
2. Adopt constant-current to control the circuit and make steady performance. Provide with over-temperature protection, short-circuit protection, long life span and high reliability design.

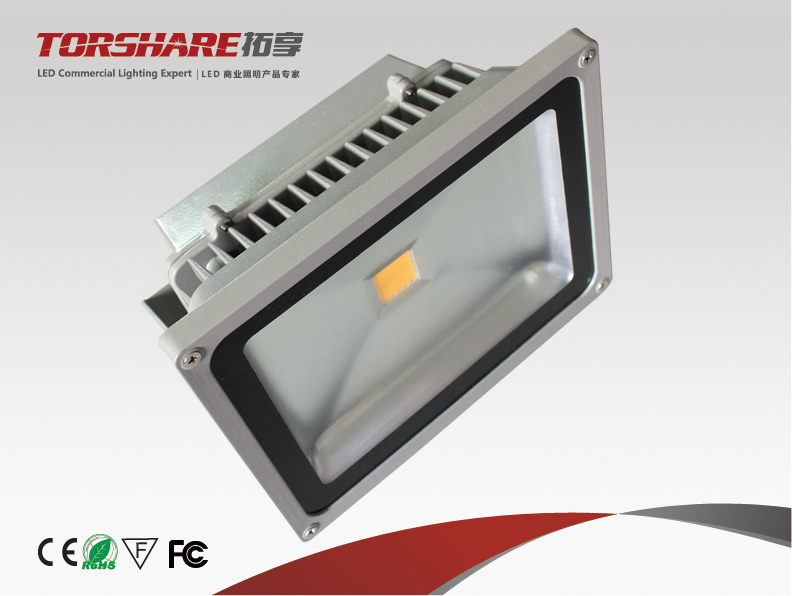

3. Die-casting aluminum as light cover. Driver cavity and Light source cavity are parted. The inside of Light source cavity is tightly closed to LED light source. Good cross-ventilation between external heat sink and air, which guarantee the life span of light source and driver.
4. Made of Toughened glass, high temperature resistant silicon rubber sealing belt. Internal silicone potting to ensure excellent waterproof properties and good thermal performance, high strength toughened glass inside, increasing the safety of lamps. Inner smooth mirror aluminum reflector enlarge the reflecting area. It is the commercial advertising lighting ideal choice.
5. Environmental friendly: No pollution, cold light source design, no heat radiation, no lead, mercury and other pollution elements.
6. Start without delay, Reach full brightness quickly after power on.
7. The inside and outside of the LED flood light is strong shakeproof, effectively to resolve the problems such as LED falls off, lamp bead shorten life, structure breakdown.
Application
Floodlighting and wall washing for bars, clubs, hotels, stages, parks, plazas, commercial buildings facade, mosques, museums, and art galleries, historical buildings. Factories, gymnasiums, yards, advertising boards, buildings, lawns, garden designs and some other outdoor places where need spot lighting and lights decoration.
|
|
TL05 |
TL01 |
TL02 |
TL03 |
TL09 |
|
Power Dissipation |
10W |
20W |
30W |
50W |
70W |
|
Input Voltage |
AC85-265 |
AC85-265 |
AC85-265 |
AC85-265 |
AC85-265 |
|
LED Working Voltage |
9-12 |
32-36 |
32-36 |
32-36 |
32-36 |
|
LED Working Current |
900 |
1500 |
1000 |
1600 |
2300 |
|
LED Light Source |
10 W high power |
20 W high power |
30 W high power |
50 W high power |
70 W high power |
|
CRI |
> 70 |
> 70 |
> 70 |
> 70 |
> 70 |
|
CCT |
White |
5500-6000 |
5500-6000 |
5500-6000 |
5500-6000 |
5500-6000 |
|
Warm White |
2500-3000 |
2500-3000 |
2500-3000 |
2500-3000 |
2500-3000 |
Brightness
|
White |
650 |
1400 |
2300 |
3600 |
5200 |
|
Warm White |
600 |
1300 |
2100 |
3400 |
4900 |
|
Viewing angle |
140 |
140 |
140 |
140 |
140 |
