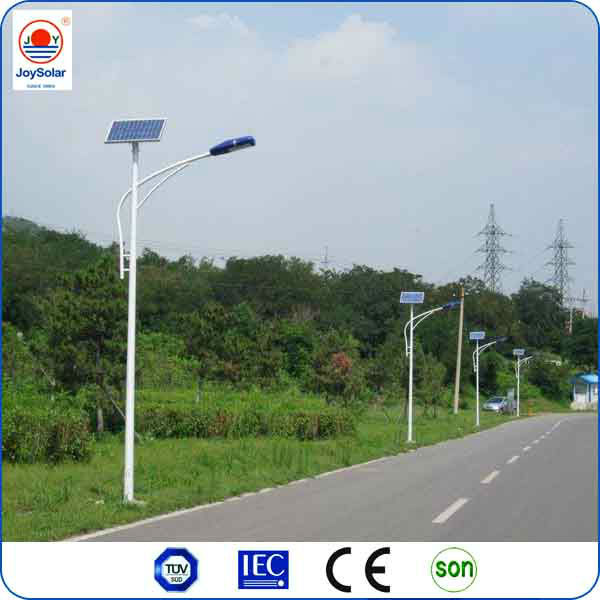

30W 4meter Solar LED street light
Founded in 1984, specializes in developing and manufacturing customized solar products for a wide range of solar energy applications. Our main products are solar outdoor lights, solar modules and solar power systems.
Office &workshop of Joysolar
1. This lighting system is suitable for area which peak sunshine last for five hours, three continuous rainy days, different system be designed according to your specific project requirements and climate conditions.
2. Sun energy power the solar lighting system, it can be affected by sunlight exposure to solar panels, Please avoid tall buildings or other objects that can block the panels when install the lamp.
3. We suggest that you should clean the dust on the solar panels every half of one year, to ensure its beauty and the solar energy absorption, but don't rinse area from the bottom up.
4. Battery is placed on the top of the pole, it's good for battery heat-dissipation, shortening cable length, reducing pressure drop, easy installation & anti-theft.
1, LED lamp cap is a transparent shade and made use of polycarbonate plastic injection molding, high strength, good light; Using LED as the light source, and LED is light emitting diodes, has the characteristics of high efficiency and long life. At present, the lamp is shaping up as a mainstream lighting products of new generation.
2, Gel battery is able to bear overfull charge or overfull discharge, able to bear shaking, shock resistance, Long storage life. High quality alloy plate grid and unique electrolyte formula, Delicate and perfect processing and manufacturing technology, Make the battery has a large capacity, good deep discharge performance, charge acceptance ability, low temperature starting ability, low self-discharge rate, Good performance of resistance to temperature change, , long life characteristics and so on. Security seal structure, no need add acid or water to maintenance it, Does not leak acid, No acid mist, Environmental pollution free.
3, CIS controller is special designed for solar street light, provide perfect, multiple protection for solar street lamps' electrical systems, and through good control strategy, effective extend the system's power supply time
4, Solar panels are made by monocrystalline or polycrystalline silicon solar cells in series parallel, and hot-pressed and sealed by tempering glass and EVA, TPT, equipped with aluminum alloy frame, and have the big ability of the wind resistance, resistance to hail, as well as the characteristic of conveniently stalling. Widely used in solar lighting, lamps, household power supply, road transport, building and photovoltaic power station, etc.
1. Price Term:
The price includes solar panel, LED street lamp, controller, battery, battery box and pole set.
Shipping seaport: Qing Dao Seaport. For CFR or CIF price, please specify which exact model you need and whether pole is needed, and tell us your order quantity so that we can calculate the local charges and sea freight. "
2. Payment: Typically 30% by T/T as down payment, balance by T/T or L/C before shipment. Other payment way can be negotiated.
3. Package: Export standard plywood case or carton packing suitable for tough handling and long-distance ocean transport.
4. Delivery: For 1000sets, goods can be ready for shipment within 20 working days.
5. Parts Design Service Time: Solar Panel 25 years, LED light over 50, 000 hours, Controller 8-10 year, Battery 3-5 years, Pole many years
6. Warranty: 5 years for solar panels, 2 years for other parts.
Our Package of the solar LED street light
JYSL-110080
|
Name
|
Specification
|
Quantity
|
Parameter
|
Solar panel
|
280W/24V
|
1 piece
|
Polycrystalline, 156x156mm, 72 piece.
Vm: 36.145V,Im: 7.775A,Voc: 44.949V, Isc: 8.218A
Size:1956x992x50 with 90cm wires,MC4 Connector. and Weight:27KG
Warranty: More than 90% output power in 10 years .and more than 80% output power in 25 years.
The product have passed TUV, IEC, MCS etc certificate.
|
Light source
|
LED80W/24V
|
1 piece
|
Single Integrated Power LED(80W),Woking Voltage DC24V,General luminous:8000lm, LED Luminous Efficiency :100lm/W,Center illuminance:14lx,Ra>80,Color temperature:2700-7000,Protection Grade :IP65,Working life >50000, It can woke more than 10 years in accordance with 12 hours a day.
Lamp shade is Die-casting molded with aluminum alloy,and its face is UV-resistant and corrosion resistant .
No bad glare; No Strobe; Start without delay .Low maintenance cost .
Production Size :720x320x172mm ,Weight :9.56KG
Packing Size:775x345x258mm,Weight :12.2KG
|
Controller
|
20A
|
1 piece
|
PHOCOS CIS Series,12V/24VAutomatic identification , light control and time control,Protection Grade IP68
|
Battery
|
12V/150AH
|
2 piece
|
Gel Battery that dedicated to solar energy. It can use recurrent more than 400 times in 100% discharge cases For the solar energy street lamp that in simple circulatory system. And its advantage is that :the small self -discharge rate ,the better deep discharge, Top charge acceptance, large capacity,strong start in low ,the good shock resistant and Anti-temperature charge Production
Size: 483x170x240mm,Weight :44.5KG
Packing Size :506x193x290mm,Weight :46.4KG
The two B attery is used in series in this collocation
|
Pole and other steel fitting
|
10M
|
Set
|
Best steel Q235 or Q345;hot dip galvanized and paint coated .
iron plate is rolled into type for one time .
Flange plate :400x400x20mm
Solar panel bracket and 4# or 5# Angle iron,50x5mm and 100x100mm Flat iron. Square tube is assembled by bolt ,any section is made with mold. With high efficiency and precision , standardized parts can replace each other and the same time increase the packing quantity and reduce transport cost .
Battery body are welded after 2mm plate stamping molding
Lamp arm 60x3mm Welded tube and iron plate welding
|
Wires harness
|
--
|
1 piece
|
With the special connector ,standardization,substitutability ,high installing efficiency,saving cost .
Wire harness can be designed according to different lamp type .
|
others
|
Baseplate 20 steel rod ,standard component and so on
|
Conditions
|
Voltage of system: 24V,working time: 10 hours ,Best work temperature -20degree-50degree
|
Packing Quantity
|
70set/40HQ
|
