1. Discription

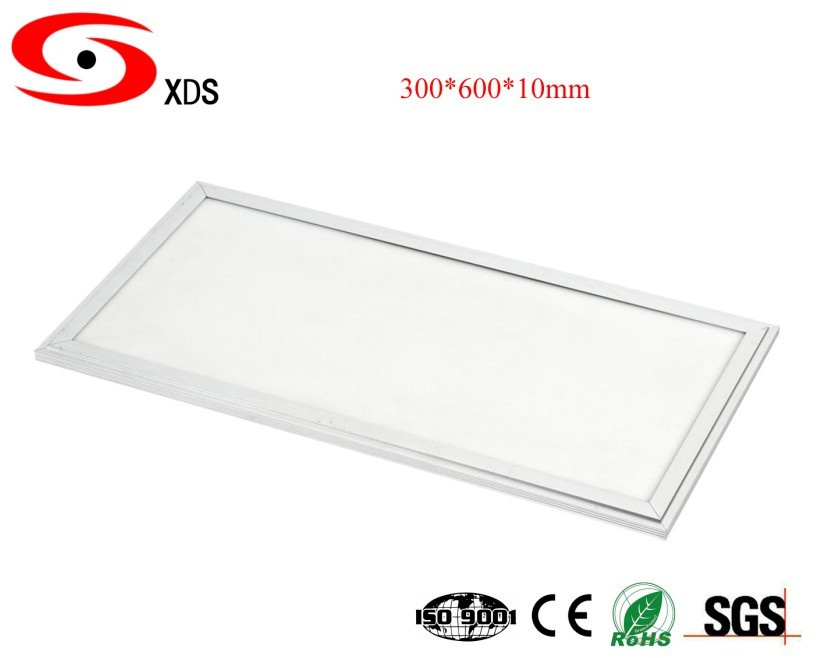

Drawell LED Panel has been design to work with conventional Grid Panel Light with fluorescent tube fixtures. To replace the short lived fluorescent lamps that are typically used in interior lighting. The LED Panel can be used to retrofit existing fluorescent tube grid light installations in all types of applications.
Model No XDS-PB0306-18 XDS-PB0306-24 XDS-PB0306-27 XDS-PB0306-36
Power Consumption 18 W 24W 27 W 36 W
Luminous flux (Lm) 1100 - 1300 Lm 1600 - 1800 Lm 1800 - 2000 Lm 2200 - 2770 Lm
LED Qty(PCS) 180 PCS 242 PCS 264 PCS 360 PCS
LED Type SMD 3014 (Taiwan LumenMax)
Color Temperature (K) 2800 - 7000K
Color Warm/Natural/Cool White
Dimension 300x600x12mm
Beam angle (degree) >120degree
CRI >75
Input voltage AC 110V - 270V
Frequency range (Hz) 50 - 60Hz
Working environment indoor
Material of body Aluminum alloy frame and PMMA cover
IP rating IP42
Operating temperature -20~65 degrees Celsius
Net weight 2200g
Dimmable Optional
Life span 50, 000hours
Warranty 3years
3. Package:
Three layer package
Inner EPE Holder
1PC into Inner Box, 4PCS into Outer Carton
Outer Carton Dimension: L400x W700x H250mm=4PCS/CTN
N. W: 8.5 kg/carton
G. W: 10.8kg/carton
4. Applications:
Home and office lighting
Shopping mall lighting
Display case lighting
Under cabinet lighting
Art lighting
Board lighting
Back lighting, step lighting, light boxes
Cabinet and under counter lighting
Metro Station / Lobby & Passageway
Conference & Meeting rooms /Factories
Commercial Purposes & decoration
5. Feature:
1. Low power consumption, High power efficiency
2. No UV or IR radiation
3. Products are compact of aluminum material.
4. Superior thermal performance, high applicability
5. Enviromental friendly: NO UV infrared and other radiation, shock vibration resistant
6. Imported light source ensure high brightness,
7. External constant- current driver, stable performance.
8. Color: Warm/pure/cool white
