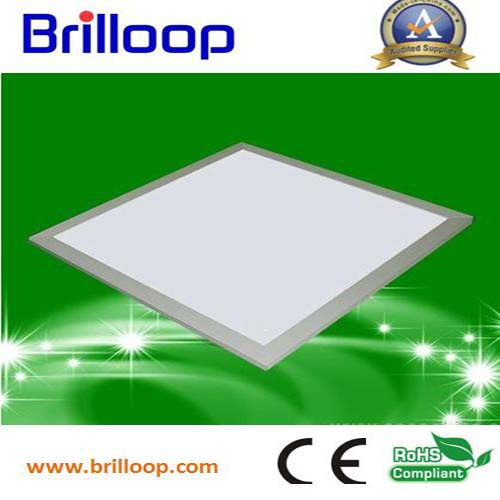

LED Panel / LED Office Panel Light
1. LED Type: Lumenmax SMD 3014
2. Beam angle: 120 degree
3. Standard warranty: 2 years
4. CE&RoHS ceitification
5. Saving energy: 50%
6. Long l ifespan: 50, 000Hrs
7. IP code: IP44
Advertage:
1> Use slap-up import material; Can control the dimming by the Remote Controller.
2> Saving energy: 50%. Replace the energy saving lamp
3> The LED is the special high-quality chips, more high intensity, less light decline and longer life more than 50, 000h
4> Special aluminum base board. Heat dispel is double than the common one;
5> The super-thin design. Only 13mm thick;
6> We will warrant Two years about the quality;
7> No UV and IR radiation. 2 years warranty:
8> Applying the international patent and have the CE. RoHS, FCC
Certificationand the test Report.
Applications
LED panel light can be widely used in the Hotel, restaurant, supermarket, school, Office, factory, fields or open spaces and The other architecture.
Trade Terms:
1. Payment: T/T, 30% deposits in advance, 70% balance before shipment
2. Production lead time for <1000PCS: 7days, >500<2000PCS: 15days
3. Sample can be delivered within 3 days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities
|
Specification |
|
Dimension: |
295x295x12.4mm |
Power: |
21W |
|
Material: |
Aluminium + Acrylic |
LED Type: |
SMD3014 |
|
Surface Treatment: |
Anodic Oxidation |
LED Qty: |
216 pcs |
|
Colour Temperature: |
Optional (2800K - 7500K) |
Voltage: |
AC85-265V |
|
Colour: |
W/CW/WW |
Frequency: |
50-60Hz |
|
Beam Angle: |
120° |
Work Temperatur: |
-20-40 |
|
CRI: |
≥ 70 (or ≥ 80) |
Lifespan: |
50, 000 Hrs |
|
LED Luminous Flux: |
1600 lm |
Net Weight: |
1.4 Kg |
|
Remark: |
Non-dimmable |
Install type: |
Pendant/Recessed |
|
Dimension: |
595x595x12.4mm |
Power: |
30W |
|
Material: |
Aluminium + Acrylic |
LED Type: |
SMD3014 |
|
Surface Treatment: |
Anodic Oxidation |
LED Qty: |
264 pcs |
|
Colour Temperature: |
Optional (2800K - 7500K) |
Voltage: |
AC85-265V |
|
Colour: |
W/CW/WW |
Frequency: |
50-60Hz |
|
Beam Angle: |
120° |
Work Temperatur: |
-20-40 |
|
CRI: |
≥ 70 (or ≥ 80) |
Lifespan: |
50, 000 Hrs |
|
LED Luminous Flux: |
1900 lm |
Net Weight: |
4.6 Kg |
|
Remark: |
Non-dimmable |
Install type: |
Pendant/Recessed |
|
Dimension: |
595x595x12.4mm |
Power: |
55W |
|
Material: |
Aluminium + Acrylic |
LED Type: |
SMD3014 |
|
Surface Treatment: |
Anodic Oxidation |
LED Qty: |
528 pcs |
|
Colour Temperature: |
Optional (2800K - 7500K) |
Voltage: |
AC85-265V |
|
Colour: |
W/CW/WW |
Frequency: |
50-60Hz |
|
Beam Angle: |
120° |
Work Temperatur: |
-20-40 |
|
CRI: |
≥ 70 (or ≥ 80) |
Lifespan: |
50, 000 Hrs |
|
Luminous Flux: |
3800-3900 lm |
Net Weight: |
4.6Kg |
|
Remark: |
Non-dimmable |
Install type: |
Pendant/Recessed |
|
Dimension: |
618x618x12.4mm |
Power: |
30W |
|
Material: |
Aluminium + Acrylic |
LED Type: |
SMD3014 |
|
Surface Treatment: |
Anodic Oxidation |
LED Qty: |
276 pcs |
|
Colour Temperature: |
Optional (2800K - 7500K) |
Voltage: |
AC85-265V |
|
Colour: |
W/CW/WW |
Frequency: |
50-60Hz |
|
Beam Angle: |
120° |
Work Temperatur: |
-20-40 |
|
CRI: |
≥ 70 (or ≥ 80) |
Lifespan: |
50, 000 Hrs |
|
Luminous Flux: |
2000-2800 lm |
Net Weight: |
4.8Kg |
|
Remark: |
Non-dimmable |
Install type: |
Pendant/Recessed |
|
|
|
|
|
|
Dimension: |
618x618x12.4mm |
Power: |
55W |
|
Material: |
Aluminium + Acrylic |
LED Type: |
SMD3014 |
|
Surface Treatment: |
Anodic Oxidation |
LED Qty: |
552 pcs |
|
Colour Temperature: |
Optional (2800K - 7500K) |
Voltage: |
AC85-265V |
|
Colour: |
W/CW/WW |
Frequency: |
50-60Hz |
|
Beam Angle: |
120° |
Work Temperatur: |
-20-40 |
|
CRI: |
≥ 70 (or ≥ 80) |
Lifespan: |
50, 000 Hrs |
|
Luminous Flux: |
3900-4200 lm |
Net Weight: |
4.8Kg |
|
Remark: |
Non-dimmable |
Install type: |
Pendant/Recessed |
|
Dimension: |
295x595x12.4mm |
Power: |
30W |
|
Material: |
Aluminium + Acrylic |
LED Type: |
SMD3014 |
|
Surface Treatment: |
Anodic Oxidation |
LED Qty: |
264 pcs |
|
Colour Temperature: |
Optional (2800K - 7500K) |
Voltage: |
AC85-265V |
|
Colour: |
W/CW/WW |
Frequency: |
50-60Hz |
|
Beam Angle: |
120° |
Work Temperatur: |
-20-40 |
|
CRI: |
≥ 70 (or ≥ 80) |
Lifespan: |
50, 000 Hrs |
|
LED Luminous Flux: |
1900 lm |
Net Weight: |
2.4 Kg |
|
Remark: |
Non-dimmable |
Install type: |
Pendant/Recessed |
|
Dimension: |
295x1195x12.4mm |
Power: |
55W |
|
Material: |
Aluminium + Acrylic |
LED Type: |
SMD3014 |
|
Surface Treatment: |
Anodic Oxidation |
LED Qty: |
528 pcs |
|
Colour Temperature: |
Optional (2800K - 7500K) |
Voltage: |
AC85-265V |
|
Colour: |
W/CW/WW |
Frequency: |
50-60Hz |
|
Beam Angle: |
120° |
Work Temperatur: |
-20-40 |
|
CRI: |
≥ 70 (or ≥ 80) |
Lifespan: |
50, 000 Hrs |
|
LED Luminous Flux: |
3900-4200 lm |
Net Weight: |
4.5 Kg |
|
Remark: |
Non-dimmable |
Install type: |
Pendant/Recessed |
|
Dimension: |
595x1195x12.4mm |
Power: |
55W |
|
Material: |
Aluminium + Acrylic |
LED Type: |
SMD3014 |
|
Surface Treatment: |
Anodic Oxidation |
LED Qty: |
528 pcs |
|
Colour Temperature: |
Optional (2800K - 7500K) |
Voltage: |
AC85-265V |
|
Colour: |
W/CW/WW |
Frequency: |
50-60Hz |
|
Beam Angle: |
120° |
Work Temperatur: |
-20-40 |
|
CRI: |
≥ 70 (or ≥ 80) |
Lifespan: |
50, 000 Hrs |
|
LED Luminous Flux: |
3900-4200 lm |
Net Weight: |
7.5 Kg |
|
Remark: |
Non-dimmable |
Install type: |
Pendant/Recessed |
Brilloop group Co., limited is a high tech enterprise dedicated to LED lighting industry. Our company is founded on the firm belief of offering the highest quality, fully warranted LED lighting products to our customers with the most competitive price.
Known as solid-state lighting, LEDs present many advantages over traditional incandescent light sources including lower energy consumption, longer lifetime, smaller size, greater durability and reliability. Moreover, unlike fluorescent bulbs, LED bulbs are mercury free. It is commonly believed that LED is ideal light source. Brilloop offer an extremely wide range of LED lighting products, from indoor to outdoor, from general lighting to decorative lighting, you can find a variety of light fixtures here, such as LED light bulbs, LED tube lights, track lights, recessed lights, pendant lights, panel lights, ceiling lights, etc.
We have strict quality policy and effective QC system to ensure everything is under control on all process and all parameters of outgoing products are in spec, all effort are aimed at guaranteeing customer's satisfaction, which is always our belief.
We hope to establish far-reaching commercial relations and develop solid international partnership with you, let's make a contribution to the global energy conservation together.
