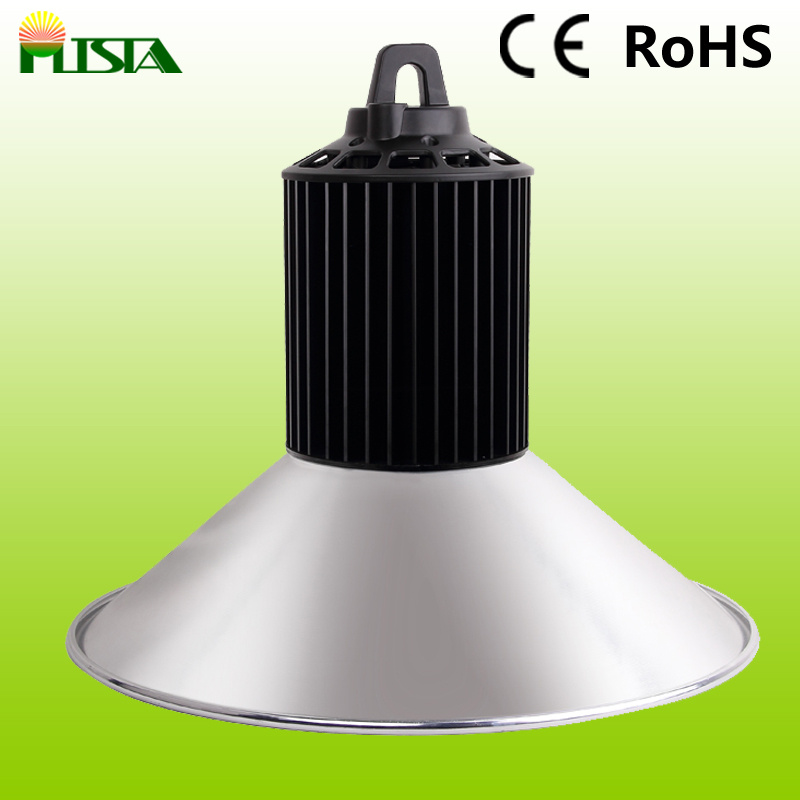

300W LED High Bay Lights for Industrial Lighting (Taiwan power supply +OSRAM chip)

LED High Bay Light (ST-HBLS-300W-A1)

1. Separate design of High-quality aluminum alloy radiator and power supply box.
-------------Effectivily separate electricity and heat.
-------------Heat dissipation through shell wing and air convection.
-------------Assure the heat dissipation requirements of the led source.
------------Protect the led life span.

2. Life surface is treated with anodic oxidation technology.
---------Compact appearance and good dust-proof.

3. Light source are self-sealed high brightness led module.
--------Low light dacay and attenuation.
--------Less than 15% comsumption within 300, 00 hours.
---------Pure color and without glare and strobe to make eye comfortable.

4. High-purity aluminum reflector.
-------Big beam angle and goog illumination uniform.

5. Apply constant current and voltage power supply.
----------High CRI, Stable light brightness.
-----------Make the color close to natrual.
-----------Wide voltage for AC85-AC265V,
Mutiple power to ensure the stability when led in use.

6. Application for Plant, Warehouse, Exihibition Hall, Stadium, Supermarket.

Features:

Low power consumption. More than 60% energy saving compared to conventional HID lamps.
Lead and mercury free.
Long operation life time, above 50, 000 hours.
Low maintenance costs.
Selectable color temperature
Ensures high light purity, high heat conduction and slow brightness derating.
Unique heat sink design ensures superior heat management.
Resistant to shock and vibration

Model No.		ST-HBLS-250W-A1	ST-HBLS-300W-A1	ST-HBLS-400W-A1
Voltage		AC 85~264V	AC 85~264V	AC 85~264V
PF Power factor		≥0.95	≥0.95	≥0.95
LED chip		Osram3030	Osram3030	Osram3030
Power		250W	300W	400W
Luminous flux (LM)		32500	390000	52000
CCT, Color temperature		3000-6000K	3000-6000K	3000-6000K
CRI		Ra≥80	Ra≥80	Ra≥80
Led light effect (lm/W)		≥130	≥130	≥130
Beam Angle		45°/90°/120°	45°/90°/120°	45°/90°/120°
Operation Temperature		-30ºC~60ºC	-30ºC~60ºC	-30ºC~60ºC
Operation Humidity		10%~90%RH	10%~90%RH	10%~90%RH
Storage Temperature		-40ºC~80ºC	-40ºC~80ºC	-40ºC~80ºC
Lifespan (H)		≥50000H	≥50000H	≥50000H
Material		Die-casting aluminum	Die-casting aluminum	Die-casting aluminum
Product size( mm) (L *W* H)		Ø502*560	Ø502*560	Ø502*580
Packing size(mm)		300*300*360	300*300*380	300*300*380
The packing size of reflector	45 degrees	440*440*380	440*440*380	440*440*380
	90 degrees	520*520*250	520*520*250	520*520*250
	120 degrees	530*530*250	530*530*250	530*530*250
Weight (kg)		7.25	7.35	7.85
Protection Level		IP20	IP20	IP20

Trade Term:
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery (Western Union or MoneyGram are welcomed)
2. Production lead time: 15days, for one container: 25days;
Sample or small quantity can be delivered in 3-5days
3. Trade term: FOB, EXW
4. Shipping freight are quoted under your requests
5. Shipping port: Guangzhou Huangpu port, Shenzhen Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 50pcs

Packaging:
Standard packing with box&carton up to export standard or at customer's requirement, inner put some bubble film to protect the product

Warranty:
5 Years. All products we sell, if in warranty period, we repair and replace for free, or we give 5‰ Discount in price for customer to buy new, for the same products only.
F not in warranty period we repair and replace for the cost of the components.

Our Service:
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquiry in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
