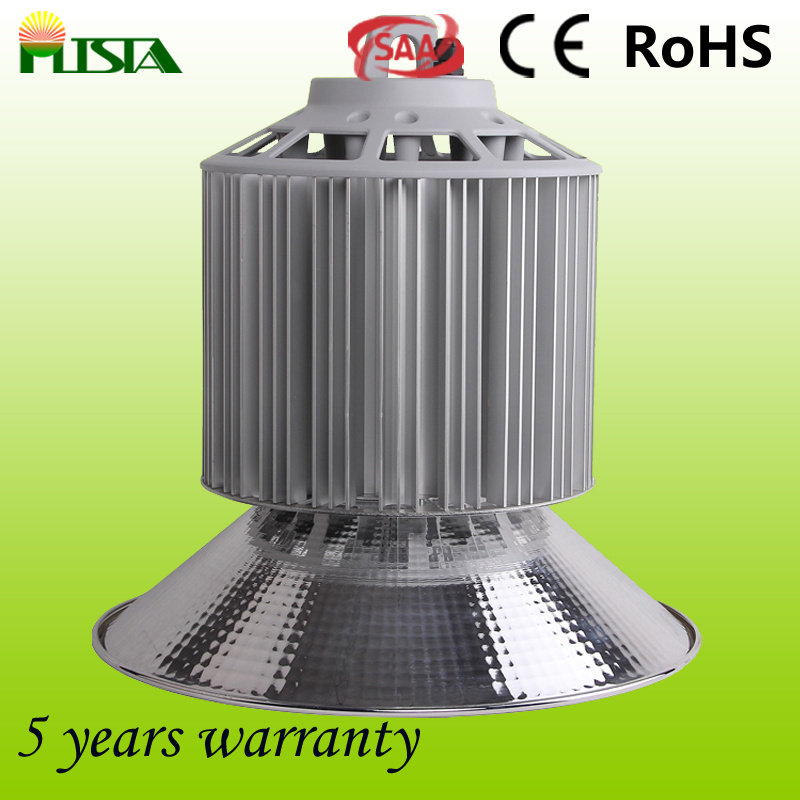

300 Watt LED High Bay Light with Osram (ST-HBLS-300W-A1)

300watt LED High bay light

Advantage:
6063 aluminum, 80mm length heat sink, separate design for heat sink and power supply.
OSRAM LED Chip, Taiwan power supply

Feature:
Low power consumption. More than 60% energy saving compared to conventional HID lamps.
Lead and mercury free.
Long operation life time, above 50,000 hours.
Low maintenance costs.
Selectable color temperature
ensures high light purity, high heat conduction and slow brightness derating.
Unique heat sink design ensures superior heat management.
Resistant to shock and vibration

Model No.		ST-HBLS-60W-A1	ST-HBLS-80W-A1	ST-HBLS-100W-A1	ST-HBLS-120W-A1	ST-HBLS-150W-A1	ST-HBLS-200W-A1	ST-HBLS-250W-A1	ST-HBLS-300W-A1	ST-HBLS-400W-A1
Voltage		AC 85~264V	AC 85~264V	AC 85~264V	AC 85~264V	AC 85~264V	AC 85~264V	AC 85~264V	AC 85~264V	AC 85~264V
PF Power factor		≥0.95	≥0.95	≥0.95	≥0.95	≥0.95	≥0.95	≥0.95	≥0.95	≥0.95
LED chip		Osram3030	Osram3030	Osram3030	Osram3030	Osram3030	Osram3030	Osram3030	Osram3030	Osram3030
Power		60W	80W	120W	120W	150W	200W	250W	300W	400W
Luminous flux (LM)		7500-7800	10400	13000	15600	19500	26000	32500	390000	52000
CCT, Color temperature		3000-6000K	3000-6000K	3000-6000K	3000-6000K	3000-6000K	3000-6000K	3000-6000K	3000-6000K	3000-6000K
CRI		Ra≥80	Ra≥80	Ra≥80	Ra≥80	Ra≥80	Ra≥80	Ra≥80	Ra≥80	Ra≥80
Led light effect (lm/W)		≥130	≥130	≥130	≥130	≥130	≥130	≥130	≥130	≥130
Beam Angle		45°/90°/120°	45°/90°/120°	45°/90°/120°	45°/90°/120°	45°/90°/120°	45°/90°/120°	45°/90°/120°	45°/90°/120°	45°/90°/120°
Operation Temperature		-30ºC~60ºC	-30ºC~60ºC	-30ºC~60ºC	-30ºC~60ºC	-30ºC~60ºC	-30ºC~60ºC	-30ºC~60ºC	-30ºC~60ºC	-30ºC~60ºC
Operation Humidity		10%~90%RH	10%~90%RH	10%~90%RH	10%~90%RH	10%~90%RH	10%~90%RH	10%~90%RH	10%~90%RH	10%~90%RH
Storage Temperature		-40ºC~80ºC	-40ºC~80ºC	-40ºC~80ºC	-40ºC~80ºC	-40ºC~80ºC	-40ºC~80ºC	-40ºC~80ºC	-40ºC~80ºC	-40ºC~80ºC
Lifespan (H)		≥50000H	≥50000H	≥50000H	≥50000H	≥50000H	≥50000H	≥50000H	≥50000H	≥50000H
Material		Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum	Die-casting aluminum
Product size( mm) (L *W* H)		Ø502*448	Ø502*448	Ø502*485	Ø502*523	Ø502*523	Ø502*520	Ø502*560	Ø502*560	Ø502*580
Packing size(mm)		255*255*315	255*255*315	255*255*360	255*255*360	255*255*380	300*300*360	300*300*360	300*300*380	300*300*380
The packing size of reflector	45 degrees	440*440*380	440*440*380	440*440*380	440*440*380	440*440*380	440*440*380	440*440*380	440*440*380	440*440*380
	90 degrees	520*520*250	520*520*250	520*520*250	520*520*250	520*520*250	520*520*250	520*520*250	520*520*250	520*520*250
	120 degrees	530*530*250	530*530*250	530*530*250	530*530*250	530*530*250	530*530*250	530*530*250	530*530*250	530*530*250
Weight (kg)		3.35	3.35	3.85	4.25	4.25	7.25	7.25	7.35	7.85
Protection Level		IP20	IP20	IP20	IP20	IP20	IP20	IP20	IP20	IP20

Trade Term:
1. Payment: T/T , 30% deposits before production, 70% balance to be paid before  delivery (Western Union or MoneyGram are welcomed)
2. Production lead time: 15days,  for one container:  25days;
  Sample or small quantity can be delivered in 3-5days
3. Trade term: FOB, EXW
4. Shipping freight are quoted under your requests
5. Shipping port: Guangzhou Huangpu port, Shenzhen Mainland China
6. Discounts are offered based on order quantities
7. MOQ:50pcs

Packaging:
Standard packing with box&carton up to export standard or at customer's requirement, inner put some bubble film to protect the product

Warranty :
5 Years. All products we sell,if in warranty period, we repair and replace for free, or we give 5‰ discount in price for customer to buy new, for the same products only.
For not in warranty period we repair and replace for the cost of the components.
