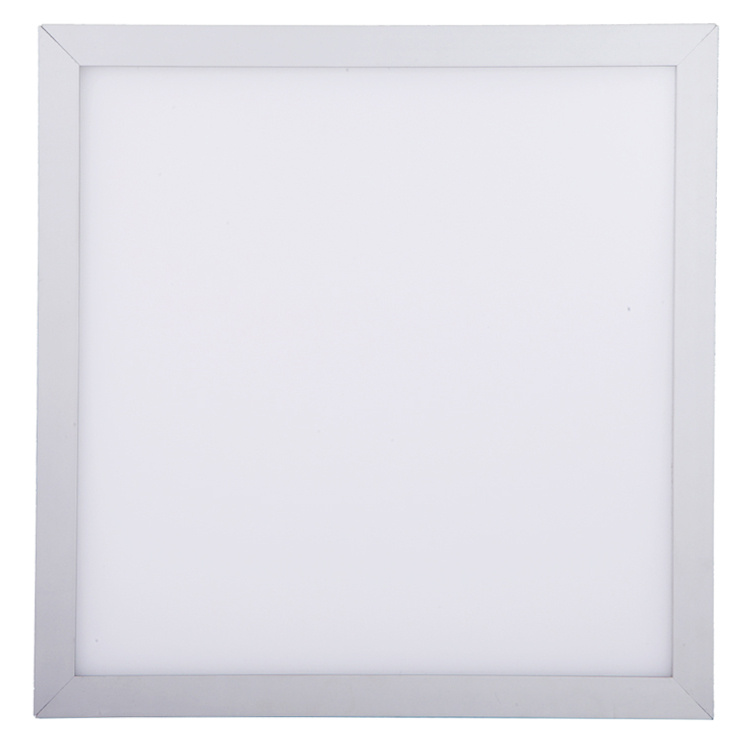

300*300mm Square LED Panel Light
Product Description of our 300*300mm Square LED Panel Light
Dimmable type is also available for this series.
1. Feature of our 300*300mm Square LED Panel Light
> High brightness
> Optimized circuit design
> External high PF constant current LED driver, instant start
> No flickering
> No humming; Safe and reliable
> Four sides illuminating, better heat sink
> with temperature rise less than 20deg
> Easy installation
> Premium SMD LED, >60% energy saving than fluorescent lamps
> Versatile in size, shape and configuration.
> Exceptionally energy efficient, much lower power consumptions
> Long lifespan: > =30, 000h
> Certification: CE, RoHS
2. Packing of our 300*300mm Square LED Panel Light
Packing: 1× Panel per Inner box
4× Panel per Outer Carton
3. Applications of our 300*300mm Square LED Panel Light
LED panel lights are used in ceilings, walls, art gallery, the car, the counter, etc.
4. Installation of our 300*300mm Square LED Panel Light
1. Fix the panel light to the ceiling
(1)Embedded installation and Replace the ceiling with the panel which has the same specifications.
A. Take off the ceiling, put the panel into the ceiling from the diagonal
B. Fix the panel to the T shelf
(2)Inhaled installation
Mount the ceiling frame to the hole; Fix the panel light as showed in the above A
2. Fix the panel light on the wall
(1) Fix the wall frame to the wall with screws;
(2) Settle the driver into the frame;
(3) Screw the panel on four angles of the frame and tighten the screw.
(4) Fix the hanging rope to the ceiling.
(5) Screw the hanger into the threads in the four angles of the panel.
(6) Adjust to the proper height.
5. Trade Terms of our 300*300mm Square LED Panel Light
Sample can be delivered in 5days
Production Lead Time: 5-25days
MOQ: 50PC/model(Customized Design)
6. Payment Item of our 300*300mm Square LED Panel Light
Payment: T/T only, Western Union is welcomed
7. Shipping Items of our 300*300mm Square LED Panel Light
Deliver by air cargo or courier for your orders.
8. Why Buy Yanfeng Panel Light
High Quality
We only use qualified high quality materials, 2 years warranty of panel.
High Efficiency
95lm/w, Save more energy and more money for you.
Reliable & Durability
Use Al + PMMA construction, which is not easy to be broken. Approved by many customer and projects more than 4 years. You take zero risk.
Competitive price
Due to abundant mass production, Yanfeng panel lights are with very competitive price.
Technical Support
Project Consultant, New product development, IES file supply. Dialux design.
Excellent Service
Yanfeng Sales team will answer you within 18hours.
9. Why Yanfeng panel light is so unique & fantastic
Construction
Yanfeng self designed Pure aluminum frame and back cover working as a fantastic heat sink, Our LED junction temperature is only 45degree.
Raw Material
To sure the uniform lighting output. Al. PCB is good for high current conductivity and heat dissipation, to achieve low heat generation while providing rapid heat transmission...
Super thin & Low profile
Ultra slim designed frame, thickness is 12.5mm only.
Super Color consistency
We choose super high brightness famous brand LED for Yanfeng panel light, only select 2 color bin to sure the super color consistency.
Model No. |
Size(mm) |
Voltage(V) |
Color tempre.(K) |
Angle |
Power |
LED Qty |
Lumen(lm) |
YF-PL0303-13 |
300*300*12.5 |
AC110-260 |
WW/W/CW
3000K/4500K/6500K |
170° |
13w |
110pcs |
900-1370 |
YF-PL0306-20 |
300*600*12.5 |
AC110-260 |
WW/W/CW
3000K/4500K/6500K |
170° |
20w |
200pcs |
1400-2100 |
YF-PL0312-40 |
300*1200*12.5 |
AC110-260 |
WW/W/CW
3000K/4500K/6500K |
170° |
40w |
400pcs |
2800-3800 |
YF-PL0606-34 |
600*600*12.5 |
AC110-260 |
WW/W/CW
3000K/4500K/6500K |
170° |
34w |
396pcs |
3200--3550 |
YF-PL0606-36 |
600*600*12.5 |
AC110-260 |
WW/W/CW
3000K/4500K/6500K |
170° |
36w |
100 |
2400-3600 |
YF-PL0606-39 |
600*600*12.5 |
AC110-260 |
WW/W/CW
3000K/4500K/6500K |
170° |
39w |
396 |
3700-4000 |
YF-PL0612-40 |
600*1200*12.5 |
AC110-260 |
WW/W/CW
3000K/4500K/6500K |
170° |
40w |
400 |
4200-4800 |
YF-PL0612-68 |
600*1200*12.5 |
AC110-260 |
WW/W/CW
3000K/4500K/6500K |
170° |
68w |
768 |
7000-7200 |
YF-PL180R-8 |
Φ180x17 |
AC110-260 |
WW/W/CW
3000K/4500K/6500K |
170° |
8w |
102 |
550-850 |
YF-PL240R-15 |
Φ240x17 |
AC110-260 |
WW/W/CW
3000K/4500K/6500K |
170° |
15w |
150 |
1450-1600 |
