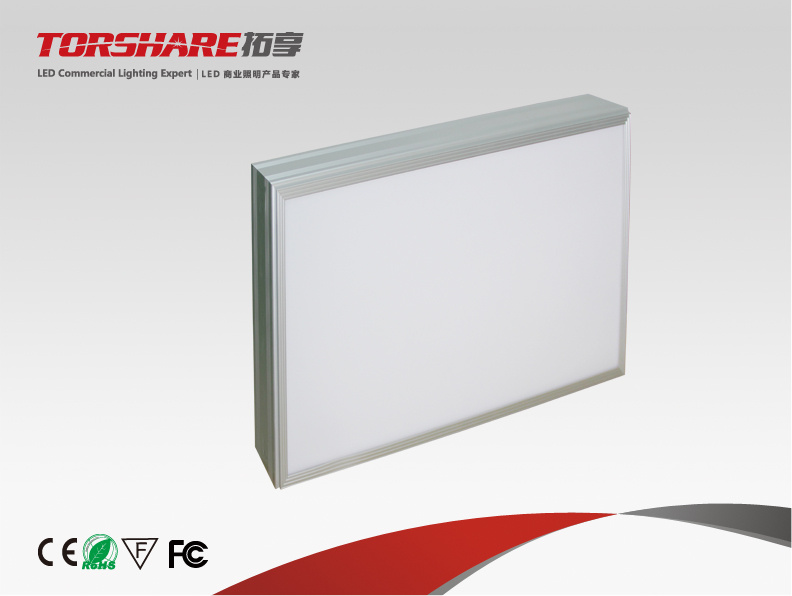

LED Panel Features
1). Super slim and efficient design
Unique extruded aluminum with very slim design (12mm thickness), lighting comes all around into light guide panel, more efficient heat dissipation, lowers the light decline efficiently. Ensure the lumen output maintenance factor above 80%, after using 35, 000 hours.
Instead of hole to hole location between border and back cover, change to hole to gutter location.
2). Nice thermal efficiency
Using the MCPCB material for PCB to inprove the thermal efficiency, it has enough space in border and
Easy to change other combination scheme, which make sure the life-span up to 5 years.
3). High light efficiency and top quality light effect
Using 3014SMD as light source, which is with high luminous efficiency and help to reduce the cost of lamp and shorten the SMT time.
Using high quality guiding light material imported from Japan, light efficiency is high after lighting up, with super even light distribution. No flick, no glare and it can reduce the visual fatigue.
4). Easy installation
Very convenient to install, no screws, hung directly with hooks
5). Weight saving and Convenient shipping
Guiding plate is only 4mm, saving 1/5 weight compared with former version. Improved packing to saving the space and easier for shipment. Also freight cost is saving.
6). Environmental friend
Safe and durable, can be cyclic utilization, no such hazard for lead or Mercury enter the environment.
7). High safety coefficient
The whole lamp is with high safety coefficient. With wide working voltage, low power consumption, and low heat dissipation, no potential safety hazard.
|
|
PL021 |
PL022 |
PL023 |
PL025 |
|
LED Type |
High Brightness 3528 SMD |
|
Color |
Warm White White |
|
Color temperature |
3000K-3500K 6000K-6500K |
Lumen
(lm) |
|
2950 |
580 |
1170 |
2870 |
|
|
3100 |
650 |
1300 |
3000 |
|
Power Rating(W) |
40 |
10 |
20 |
40 |
|
Input Voltage(V) |
AC85-265V |
AC85-265V |
AC85-265V |
AC85-265V |
|
Forward Voltage(V) |
DC12V |
DC12V |
DC12V |
DC12V |
|
Forward Current(mA) |
5 |
1.5 |
2 |
5 |
|
CRI |
> 75 |
> 75 |
> 75 |
> 75 |
|
Viewing Angle |
150° |
150° |
150° |
150° |
|
Certifications |
CE & RoHS |
CE & RoHS |
CE & RoHS |
CE & RoHS |
Founded in 2006, Torshare Ltd. Is one of the biggest manufacturers of LED-related products in China, which is specialized in researching, developing, engineering and marketing of LED products. Occupied by 12, 000 square meters, 200-250 staff, due to good quality and perfect after sales service, Torshare Ltd is enjoying high reputation. It is located in the center of Chinese LED, Shenzhen Shiyan Town, where is about 30 minutes drive from Hong Kong, and 15 minutes drive from Shenzhen Airport, we welcome any group or person to visit our factory.
Our products cover a wide range, such as LED Tube Light, LED downlight, LED spotlight, LED panel light, High power series, LED Sign, Strips, Modules, OEM etc. We are specially proud of our OEM business since we have many professional engineers who have worked in the field of LED for over 10 years. Highly trained workers make sure our products are in 100% good quality. Professional sales follow up with our customers at any time. According to our advantages, we have witnessed our rapid development. Right now, our annual export sales topped $13.5 million in 2010, a 60% increase from the previous year.
We have one set of strict Quality Inspection System. Our 15 QC staff monitor the entire production process to ensure our product quality meets your requirements. We use advanced temperature testers, luminance testers and photoelectric instruments to conduct strict testing such as voltage withstand, shock proof and salt spray tests. All our operations are ISO 9001: 2008-certified. Our qualification rate is above 99.5%. All our products comply with CE standard and the RoHS Directive.
Under the common effort of all staff; We fully believe we will do better and better in the following days.
