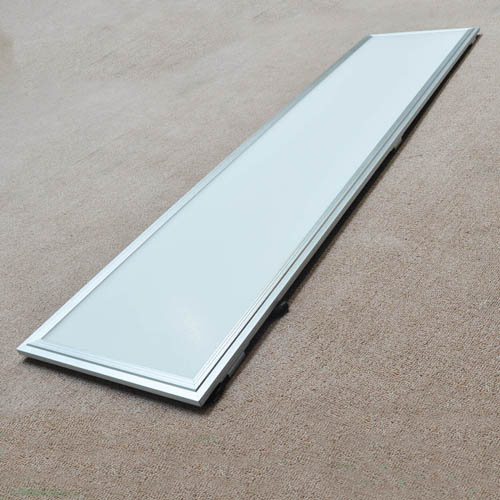

LED Panel light is a new light source, it adopt ultra-thin aluminum frame and super bright leds, the light source is from two side of aluminum frame, adopt constant volage driver, stable, and quick on/off, no flash. the light beam angle is wide, and light is very soft, it is well applied to indoor lighting, it can replace the traditional ceiling light.
Product feature:
-Material: Aluminal alloy shell, high effeciency light guide, super brigt SMD3014.
-Size: 600*600mm( 300*600mm, 300*300mm, 300*1200mm, 600*1200mm also available)
-Color: Warm white( 2700-3500K), Day light( 4000-5000K), Cool White(5500-6500K)
-Input Voltage: AC100-240V
-Working temperature: -20~50degree
-Working Life: over 50000hours
-Easy installation, suspending way, mounting way.
-IP44, Indoor lighting.
Product advantage:
Energy-saving,high brightness, no infrared rays,no ultraviolet radiation ,no thermal effect;
Wider light emitting dimension
New inner high efficiency(95%) constant current driver,with heat protection system,can work under unstable voltage;
Instant start, no flickering, no humming;
Special circuit design, avoiding the single broken LED influence problem;
No TF interference.
With dimmable function
|
Part No. |
LF-PS3030W |
LF-PS3060W |
LF-PS6060W |
LF-PS3012W |
|
Size |
300*300*12mm |
300*600*12mm |
600*600*12mm |
30*1200*12mm |
|
Light source |
154/308pcs SMD3014 |
312pcs SMD3014 |
432/624pcs SMD3014 |
432/624pcs SMD3014 |
|
Power |
17W /21W |
21W |
32W / 45W |
32W / 45W |
|
Input voltage |
AC90-265V |
AC90-265V |
AC90-265V |
AC90-265V |
|
Color |
W/WW/R/G/B |
W/WW/R/G/B |
W/WW/R/G/B |
W/WW/R/G/B |
|
Lumens |
1200/ 1800lm |
1800lm |
2500lm / 4000lm |
2900lm / 4000lm |
|
IP rank |
IP54 |
IP54 |
IP54 |
IP54 |
|
Dimmerable |
Available |
