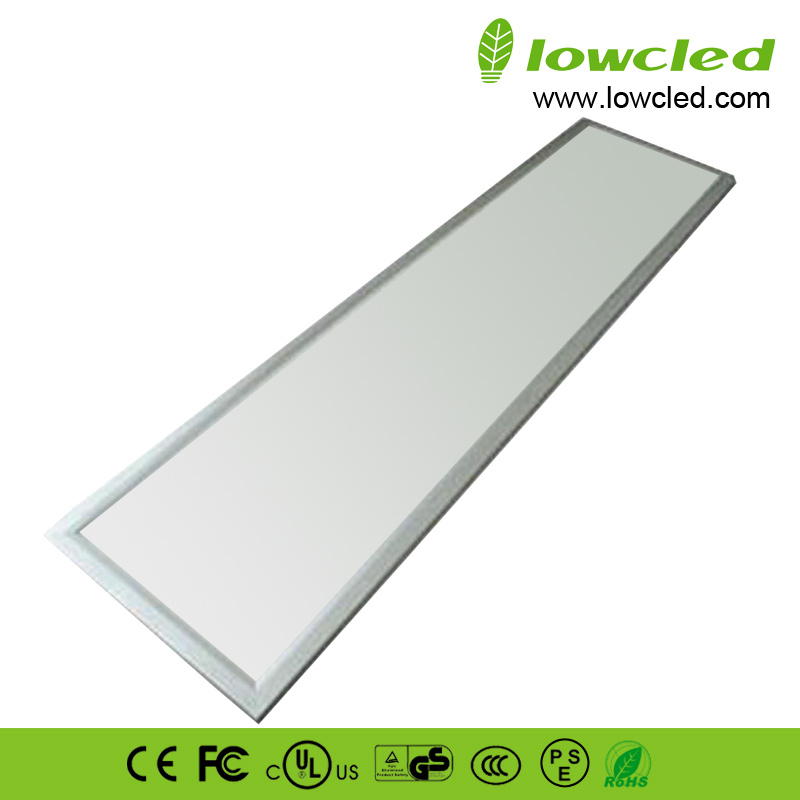

led flat panel lighting / led ceiling panel light
Features:
Model: LL-PL-300X1200-B-45W
LED Light Source: LED3014
LED Quantity: 420PCS
LED Luminous Efficiency: 68lm/W
Lamp Rated Total Power: 36W
Power Efficiency: 83%
Total Luminous Flux: 2500-3000lm
Color Rendering Index(CRI): Ra≥ 75
Color Temperature(CCT)
Cool white: 6000-6500K
Pure white: 4000-4500K
Warm white: 2700-3200K
Beam Angle: 120°
Input Voltage: 90-264V/250-305VAC
Frequency: 47-63Hz
Power Factor(PF): 0.9
Total Harmonic Distortion(THD): < 20%
Storage Temperature: -40centi-degree--+60centi-degree
Working Environment: -20centi-degree--+45centi-degree; 10~95%RH
Working Lifetime: > 50, 000 hours
IP Rating: IP20
Material: Aluminum Alloy + acrylic
Net Weight: 6.5 kgs
Product Dimension(mm): 300X1200X12mm
Package Size(mm): 1440X400X280mm/4PCS
LOWCLED LED panel light advantages:
1. Eco-friendly, energy-saving and high luminous efficacy.
2. No electric wave.
3. No such hazard that mercury or lead enters the environment.
4. No RF interference.
5. Universal input voltage: AC100-240V.
6. Low Power Consumption
7. New inner high efficiency(95%) with heat protection system, the constant current driver can work under unstable voltage.
8. Special circuit design, each LED can work indepently. In case of one failure, the others cause no influence.
9.3 years warranty.
Application:
Hotel, meeting room, factory, office, bar, coffee house, residential, show room, Institution Buildings, School, hospital, Places where there require high rendering index and energy-saving lighting fixtures.
LL-PL-300X1200-B-WW-36W | 300*1200*12mm | 36W | Epistar | SMD3014 | 324PCS | Warm White | >85 | 24VDC | 2100-2300LM |
LL-PL-300X1200-B-CW-36W | 300*1200*12mm | 36W | Epistar | SMD3014 | 324PCS | Cool White | >80 | 24VDC | 2100-2300LM |
LL-PL-300X1200-B-WW-45W | 300*1200*12mm | 45W | Epistar | SMD3014 | 420PCS | Warm White | >85 | 42VDC | 2500-2800LM |
LL-PL-300X1200-B-CW-45W | 300*1200*12mm | 45W | Epistar | SMD3014 | 420PCS | Cool White | >80 | 42VDC | 2800-3000LM |
LL-PL-300X1200-B-WW-60W | 300*1200*12mm | 60W | Epistar | SMD3014 | 516PCS | Warm White | >85 | 42VDC | 3500-3800LM |
LL-PL-300X1200-B-CW-60W | 300*1200*12mm | 60W | Epistar | SMD3014 | 516PCS | Cool White | >80 | 42VDC | 3800-4000LM |
