3 Year Warranty Meanwell Driver 120W LED High Bay Light
| Price: |
US $ 98/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
4/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
3 Year Warranty Meanwell Driver 120W LED High bay LightFeature:
>> Instant on/ off; No UV/ flickering
>> 50% less power consumption than traditional light sources
>> Cable: VDE/UL listed 3*1.0mm rubber with cold-pressed terminal
>> Constant current driver from PHILIPS
>> High power LEDs from Epistar
>> Built-in copper heat pipe
>> 60deg/100deg beaming angle available
>> .ies/.ldt files are available
Application:
High shock / vibration resistant
Enviromental friendly: No mercury and others harmful materials
No flickery & RF interference, No buzzing noise, instant soft start and low heat

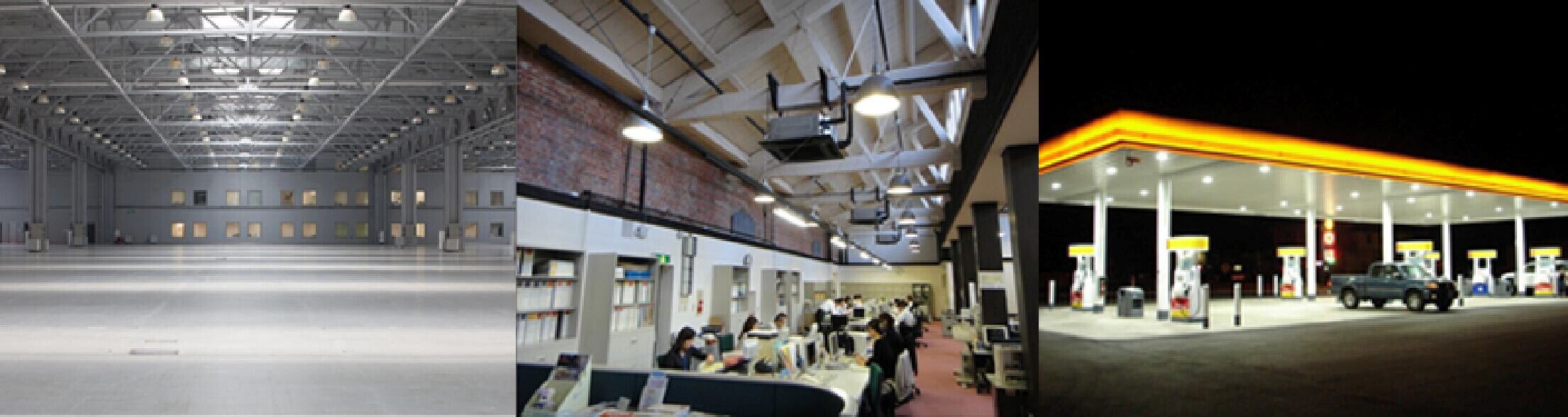

Widely used for office, bars, residential rooms, hotels, commercial buildings and so on
High Energy-efficient: Only 20% power consumption of halogen lamp and incandescent lamp
Installation
1. mode of connection:
Black wire connect FireWire, white wire connect Zero Wire.
2. Installation note:
Pls ensure that the products wasn't damaged in transit before you use it. If it was damaged, pls do not install and use it.
If the External flexible cable or flexible wire was damaged, the cable or wire need to be replaced by manufacturer, the service agent or A person with similar qualifications.
Pls ensure that the power line have enough length, and it should not under tension or tangential force. When person install the lamp's wire, pls avoid to come into being tension, and do not make the connection tie a knot.
Screw down the rings. The rings is M12 screw thread.
Put the rings in the hook smoothly.
When person install the lamp, pls ensure that the connection part can be sealing to avoid electric leakage.
When it connect power line, corresponding waterproof, leaking measures must be taken.
The lamps should not violate any fire precautions legislation.
Pls ask for professional electricians' help for installing. For 0.75MM2 three core cable connection mode , black wire is Fire Wire, and white wire is Zero Wire.
| Prod Model: |
IL120W-XXN-EP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Type: |
Epistar |
| Light Efficiency: |
110lm/W |
| Lens: |
60d or 120d |
| LED Color Temperature: |
3000k,4000k,5000k,6500k |
| PF: |
>0.96 |
| Color Rendering Index: |
>80 |
| Lumen: |
16500lm Meanwell Driver 120W LED High Bay Light |
| Color: |
Warm White,White, Natural White |
| Lifespan: |
50000 Hours |
| Certificated: |
CE,RoHS, ERP |
