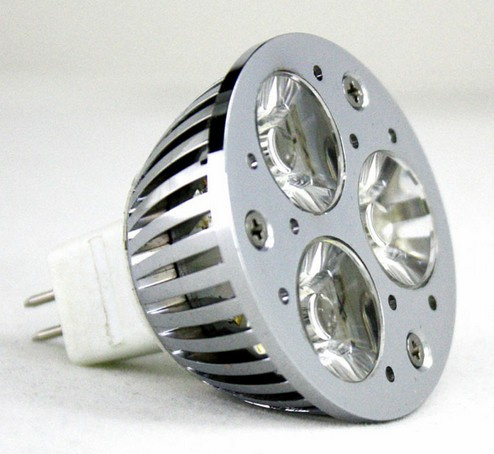

Specification of hotsale 3*1W LED spotlight
Model: MR16-3X1W
Base type: MR16
LED QTY.: 3PCS
Voltage: AC/DC 100-240V
CCD tech, 2 lifetimes than ordinary one
Use Bridgelux(USA) chip
No need to change transformer if replacing 12V halogen lamp
Dimmable version (0-100% dimming) is available
Suitable for almost all ordinary dimmer
Aluminum housing for superior heat dissipation
Driver and LED PCB are separated for better heat radiation
Transparent lens angle: 30° , 45° , 60°
Average time: 30, 000H
Brightness degradation: <3% 1000H
Size: Φ 50 x 75mm
CCD=Constant Current Driver
LED Spotlight Fetures and Advantage:
1. Directly replace general halogen light;
2. Long life: 50000hrs, 25 times than the normal energy saving lamps;
3. High efficiency: Low power loss;
4. Sufficient illumination: LED is available immediately and it can be reach at the expect lumens, without swift loss;
5. Low lumen attenuation: High quality constant current driver and good heat dissipation techniques guarantee Low lumen attenuat.
LED Spotlight Application:
1. The LED bulb PAR38 is definitely near to natural lighting. It is used in general lighting;
2. Widely used in shops, cabinets, meeting rooms, showrooms;
3. Especially for boutiques engaging in costumes, bags, shoes, clothes, jewellery.
Item No. |
ES-SP002 |
Dimension |
50*75mm |
Power Consumption |
3W |
Input Voltage |
AC90-240V |
LEDs Quantity (pcs) |
3pcs*1W |
Luminous Flux |
90 lm/W |
Material |
Aluminum and Convex lens |
Designed to replace |
60W incandescent bulb |
Light Source |
High Power Led |
Lifetime |
40, 000hrs |
Color Temp |
Warm White: 2700-3500K, Pure White: 5000-7000K |
Lighting Angle |
30 degrees |
CRI |
≥ 75 |
Operating Temp |
-40-75° C |
Relative Humidity |
10%-90% |
Power Factor |
≥ 0.9 |
Certification |
CE, Rohs |
Warranty |
1~3 years |
Xiamen Mingyao LED Co., Ltd. located in the south of China, is one of the leading companies specialized in developing, manufacturing and marketing of SMD LEDs, LED lamps and LED.
High power lighting components for the industry. Our production process is managed under ISO 9001: 2008 Standards for which we are certified. For our high power LED packaging, we are holder of the patent.
Our company develops and produces an own series of applications for indoor and outdoor use, such as LED tubes, bulbs and spotlights for interior lighting, flashlights, street lighting, tunnel illumination, garden lights, underwater lights, wall washers, display, hurdle lamps etc.
We offer our customers innovative and high quality components and products, including OEM, at competitive prices and with an excellent service in order to achieve total customer satisfaction.
To learn more about how your company can benefit from our knowledge and production strength, please contact us.
