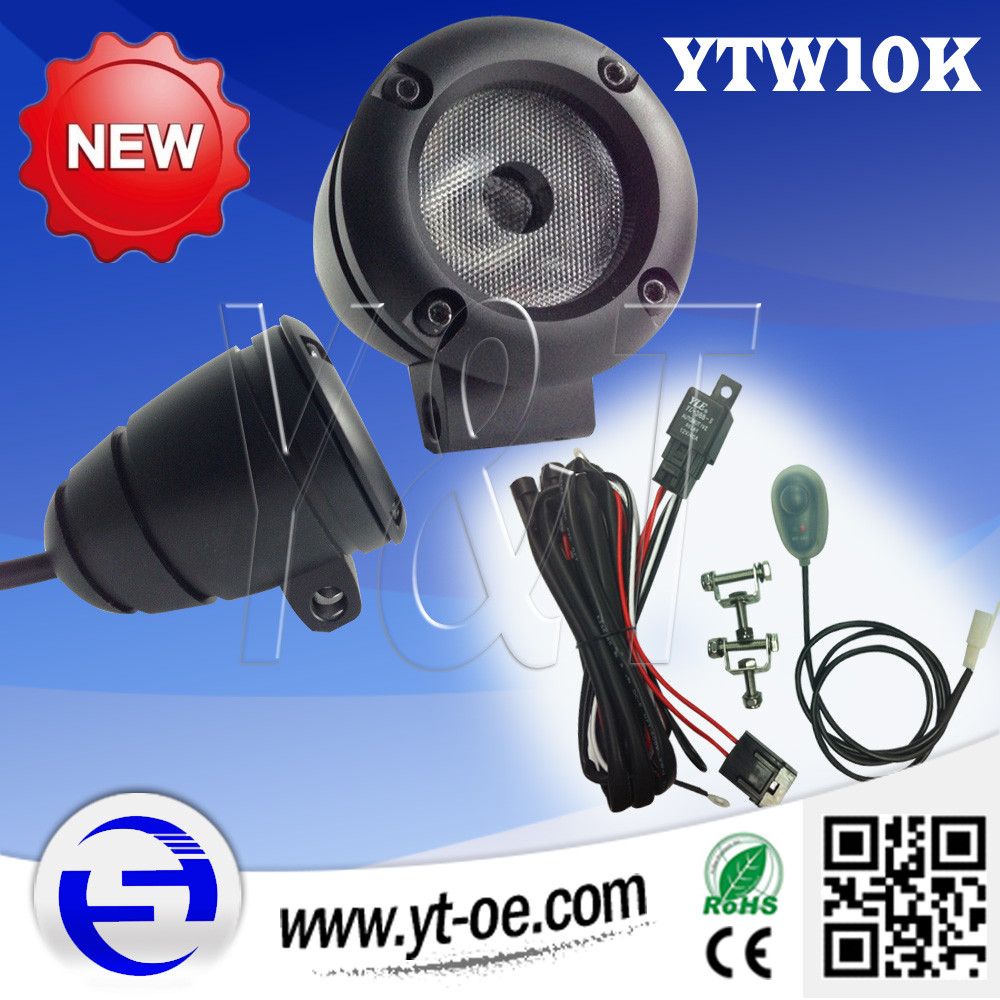

YTW10K light kit = 2pcs of YTW10 light + 1 set of Rainproof wiring harness
Perfect light kit!
Pure Aluminum + Unique design
Leading the trend of high-quality lighting!
Let me show you more surprise!
Why choose us:
DESCRIPTION:
1). Latest Product & Original Design: The YTW10 is designed as a Most Efficient Super-Mini LED Off-Road Light.
2). Wide Input Voltage: DC10~30V, which is suitable for different types of vehicles.
3). CREE High Performance LED chip: Ensure the long lifespan and superior illumination & stability.
4). High Luminous Efficiency: Output over 950 Lumen High Brightness Light, equivalent to 110W Halogen Light!
5). Materials: Pure Aluminum Housing + Virtually Unbreakable PMMA Lens + Stainless Steel Mounting Bracket with IP68 Rate, while the Aluminum face plate acts as radiant heat sink and can melts snow and ice.
6). Environmental-Friendly: Energy saving, no UV and IR radiation, Shock-Proof and Anti-Corrosion.
LIVE SHOW
4 Colors housing for this product are available:
FAQ
1. Why Choose Cree LEDs?
Re: Y&T Luminaires utilize High Quality Cree LEDs, featuring a unique internal power supply and driver that enables significantly longer(up to 5000hrs) than hid lights.
2. Why Choose Y&T?
Re: Y&T are passionate about the art and science of LED Lighting. We had been audited by SGS-CSTC already and specialize in featuring innovations. Currently our deliver cost-effective lights had been exported to over 60 countries in automatic, industrial & engineering areas.
Welcome to Y&T, and enjoy driving with the Best Lights possible.
3. What are the applications of Y&T New Cree LED Light Bar?
Re: As a Low DC Voltage(DC 9~70V) lightings, our light bars are widely used in Motorcycles, Dirtbikes, ATVs, Project Vehicles, 4X4 4WD Cars, Snow Bikes, E-Bikes, Military Trucks, Trailers, Mining, Drilling, Marines, Vessels, Boats, etc.
4. What is the testing for a High Peroformance LED Lighting?
Re: Our High Performance LED Light Series had been tested in Authority Laboratory for Light Distribution(IES Files are available), Waterproof(Rated IP67~IP68), Shockproof, EMC, High & Low Temperature, Humidity, Salt Fog, Sand & Dust, Drop Ball, Anti-Vibration & Anti-Corroson Items.
5. What are the certificates Y&T LED Lighting approved?
Re: We had been audited by SGS-CSTC already, all of our lights were CE & RoHS approved, while the drivers are UL approved.
6. What's the Warranty and how to Return Back the Defective Products?
Re: One Year in Normal Use, we provided the Best After Sales for customers all the time! As soon as a defective product was confirmed to be caused by our side, we would offer a new one to you, while customers ONLY have to pay for the delivery fees.
Any more questions or information, pls feel free to send an inquiry for us! We will reply immediately after we receive your enquiry.
Thank you!
SPECIFICATION
Technical parameters |
Model NO. |
YTW10K |
Input voltage |
DC10~30V |
Constant Current |
900mA 12V,400mA 24V |
Power consumption |
10W |
Luminous Flux |
950~1000lm |
LED Source |
Cree High Brightness LED Chip |
Certification |
CE, RoHS & FCC |
Optional Color |
Black /Chrome / Red / Golden |
Canning Materials |
Pure Aluminum |
Lens |
Virtually Unbreakable PMMA Lens, Light Transmittance>93%, Heat Resistance>90°C. |
Support & Connector |
Stainless Steel mounting bracket with Deutsch socket connector |
CCT |
6,000~7,000K |
Optional Light Type |
Flood Beam(45deg) / Spot Beam(25deg) |
IP rate |
IP68 |
Dimension ( mm ) |
51.2(D)* 61.0(W)* 66.7(H) |
Working temperature |
-45~105centi-degree |
Working humidity |
10%~98% |
Light source life span |
>50,000Hrs |
Electrostatic Discharge Threshold (HBM) |
CLASS 2 |
Warranty |
1 year in Normal Use |
