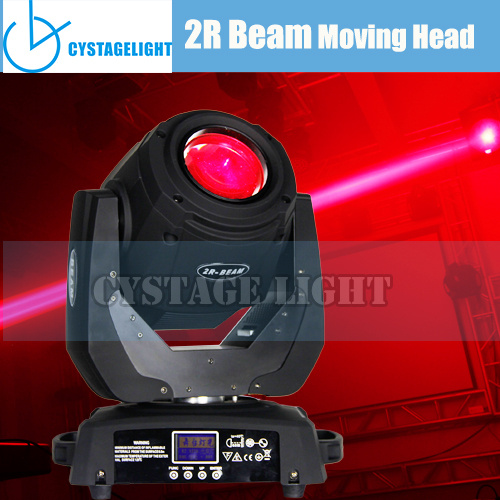

132W 2R Beam Moving Head Light
Technical Specifications
POWER SUPPLIES
Input Voltage: AC100-240V 50-60Hz
Power Consumption: 230W
LAMP SOURCE
Professional Stage Light Lamp Source
- Type: YODN MSD120 2R
- Lamp Wattage: 230W
- Lumen Output: 9, 000 Lm
- Colour temperature: 8, 000K± 300K
- Average Lamp Life: 1500 hrs
COLOR SYSTEM
Color wheel with 13 colors + open
GOBO SYSTEM
Gobo wheel 1 with 14 fixed gobos + open
EFFECTS SECTION
Electronic Focus
High speed shake effect
8-facet rotating prism
Frost filter
Mechanical shutter and adjustable speed strobe effect
CONTROL AND PROGRAMMING
10/11/13 DMX 512 control channels
DMX protocol signal: USITT DMX 512
Display: LCD Display
Pan/Tilt Resolution: 16 bit
DMX signal connection: 3 pole XLR input and output
BODY
Aluminium structure with die-cast plastic cover
Two side handles for transportation
Device locking PAN and TILT mechanisms for transportation and maintenance
MOVING BODY
Travel: PAN = 540° TILT = 270°
CONTROL MODE
DMX512/Master-slave/Auto
COOLING SYSTEM
Convective Fan Inside
1..Lamp Source |
1.YODN 2R Lamp Source
2.Professional Beam Bulb
3.Long Life Span, High to 2000hrs
4.30% Brightness than Philips
5. Central light output, High Color Temperature
6.US$25.00 more than Philips |
1.Philips Projector Lamp Source
2.Used for Projectors, Not suitable for lights which moves fast
3.Short Life Span.
4.Low Brightness
5.Low Color Temperature, Easy to explode |
2.PCB Boards |
1.Self-developing Capability. Strong H&D Team
2.High-end original motor driver chip 8841.
3.Original Signal Insulation Chip to prevent Sudden High pressure Signal Shock.
4.Customized Programs Available |
1.Weak or No R&D Team. Only assembling work.
2.Low-priced Materials utilization
3.No Signal Insulation Chip. Unable to be controlled easily
4.Fixed programs. No Customized programs
5.No Senior Engineer of their own |
3. Power Supply |
1.Self-developed Power Supply. Tailored for the lights
2.Strong Technology Support from Senior Engineer.
3.Imported Materials
4.High Stability |
1.Low quality Power Supply
2.No self-owned Technology for power
3.Made-in-China Materials, The core materials are from China, Cheap Quality |
4,Aging Test |
1.An overall Testing, Flat, Hang-up, Side hang
2.Motivation Testing |
1.No overall testing, only flat
2.No Motivation Testing |
5, Warranty |
1.One Year Warranty
2.Two years warranty for the power supply |
1.One Year Warranty
2.One year warranty for the power supply |
6,R&D Equipment |
1.Top level Testing and developing equipment
2.The equipment is ranking No.2 in the world |
1.Only simple equipment |
7,Material Cost |
US$50-66.00 Higher than others |
|
8,Pricing |
SAME |
SAME |
CYSTAGELIGHT HK LIMITED was a small company who was established in 2001.Due to the interests for lighting products from Jack, the founder, He has the decision to build a factory to make the lights for customers who really need them.
After the foundation, Jack has been keeping research on different lights in different market.Until now, what he has manufactured has won very much population in the market.
CYSTAGELIGHT now has customers from different countries and based on different situation, Jack has adapted his products to every country.
Now CYSTAGELIGHT HK LIMITED has covered most of categories of entertainment industry.Almost all LED Lights and Moving Head Lights applied in stage are covered from our company.
CYSTAGELIGHT HK LIMITED is Either a lighting manufacturer or an entertainers as you.We know the frustration of working with lights that are hard to program, tempermental, and just plain way too expensive.If you've been looking for lights for your DJ business, band, production company, club, or wherever, we think you'll find CYSTAGELIGHT'S products right up your alley!
