| Price: | US $ 390/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Paypal,Western Union |
| Channels | Value | Function | Remark |
| CH1 | 0-4 | White |
To conveniently remember it, the color value is always a multiple of 5. Linear changing: Colors' percentage can be adjusted. For example, when the value is 5, it means 50% deep red and 50% white. When the value is adjusted from 5 to 4, red has 60% in the mixing color and only 40% of the mixing color is white Non-linear changing: The color is adjusted in Color wheel' s Linear and non-linear can be chosen by setting in the menu. |
| 5-9 | White+Red | ||
| 10-14 | Red | ||
| 15-19 | Red+Blue | ||
| 20-24 | Blue | ||
| 25-29 | Blue+Deep Yellow | ||
| 30-34 | Deep Yellow | ||
| 35-39 | Deep Yellow+Green | ||
| 40-44 | Green | ||
| 45-49 | Green+Plum Red | ||
| 50-54 | Plum Red | ||
| 55-59 | Plum Red+Light Yellow | ||
| 60-64 | Light Yellow | ||
| 65-69 | Light Yellow+Bluish Green | ||
| 70-74 | Bluish Green | ||
| 75-79 | Bluish Green | ||
| 80-84 | Brownish Yellow | ||
| 85-89 | Brownish Yellow + Amaranth | ||
| 90-94 | Amaranth | ||
| 95-99 | Yellow Green + Amaranth | ||
| 100-104 | Yellow Green | ||
| 105-109 | Cool+Yellow Green | ||
| 110-114 | Cool | ||
| 115-119 | Brown+Cool | ||
| 120-124 | Brown | ||
| 125-129 | Brown+Fluorescence | ||
| 130-134 | Fluorescence | ||
| 135-139 | Fluorescence+White | ||
| 140-255 | Rainbow effect | from slow to fast | |
| CH2 | 0-3 | Off | |
| 4-207 | Strobe | ||
| 208-212 | Light on | ||
| 213-225 | Random slow-strobe | ||
| 226-238 | Random mid-strobe | ||
| 239-251 | Random fast-strobe | ||
| 252-255 | On | controlled by CH3 | |
| CH3 | 0-50 | Off | |
| 50-210 | Dimmer | 0-100% | |
| 211-255 | Light on | ||
| CH4 | 0 | White | |
| 5 | Gobo 1 | ||
| 10 | Gobo 2 | ||
| 15 | Gobo 3 | ||
| 20 | Gobo 4 | ||
| 25 | Gobo 5 | ||
| 30 | Gobo 6 | ||
| 35 | Gobo 7 | ||
| 40 | Gobo 8 | ||
| 45 | Gobo 9 | ||
| 50 | Gobo 10 | ||
| 55 | Gobo 11 | ||
| 60 | Gobo 12 | ||
| 65 | Gobo 13 | ||
| 70 | Gobo 14 | ||
| 75-129 | Rotate(minus) | from fast to slow | |
| 130-134 | Stop(white) | ||
| 135-185 | Rotate(plus) | from slow to fast | |
| 186-190 | Gobo 1 shaking | ||
| 191-195 | Gobo 2 shaking | ||
| 196-200 | Gobo 3 shaking | ||
| 201-205 | Gobo 4 shaking | ||
| 206-210 | Gobo 5 shaking | ||
| 211-215 | Gobo 6 shaking | ||
| 216-220 | Gobo 7 shaking | ||
| 221-225 | Gobo 8 shaking | ||
| 226-230 | Gobo 9 shaking | ||
| 231-235 | Gobo 10 shaking | ||
| 236-240 | Gobo 11 shaking | ||
| 241-245 | Gobo 12 shaking | ||
| 246-250 | Gobo 13 shaking | ||
| 250-255 | Gobo 14 shaking | ||
| CH5 | 0-127 | prism removed | |
| 128-255 | prism inserted | ||
| CH6 | 0-63 | Prism Angle 0-360adjusted freely | |
| 64-127 | Prism rotate in positive direction | from fast to slow | |
| 128-191 | Prism Angle in negative direction | from slow to fast | |
| 192-255 | Prism Angle rotates in both positive and negative directions | ||
| CH7 | 0-5 | No function | |
| 6-15 | Macro 1 |
Macro 1-15 can be only used for Color wheel, Gobo wheel, Prism and its rotate. Macro functionshave priority with respect to the other channels. That is to say, when Macros run, CH1,CH2,CH5 and CH6 cna not be used. |
|
| ^^ | ^^ | ||
| 146-155 | Macro 15 | ||
| 156-165 | Auto-run 1 | ||
| 166-175 | Auto-run 2 | ||
| 176-185 | Auto-run 3 | ||
| 186-195 | Auto-run 4 | ||
| 196-205 | Draw UP 8 | ||
| 206-215 | Forward 0 | ||
| 216-225 | 8Forward stand 8 | ||
| 226-235 | Forward sleep 8 | ||
| 236-245 | Random Auto-run | ||
| 246-255 | Sound active mode | ||
| CH8 | 0-127 | Frost Effect Off | |
| 128-255 | Frost Effect On | ||
| CH9 | 0-255 | 0-100%Zoom 0-100% | Linear zoom from far to near |
| CH10 | 0-255 | Pan | Pan: 0-540 |
| CH11 | 0-255 | Pan fine | |
| CH12 | 0-255 | Tilt | Tilt: 0-540 |
| CH13 | 0-255 | Tilt fine | |
| CH14 | 0-255 | Adjust the Pan/Tilt Speed | from slow to fast |
| CH15 | 0-25 | No function | |
| 26-76 | Reset effect motor | Reset after staying at the beginning area for 5 minutes | |
| 77-127 | Reset Pan/Tilt motor | ||
| 128-255 | Reset all motors | ||
| CH16 | 0-9 | Unused Range | |
| 10-100 | Lamp off | Lamp switch passing through the unused range and staying 5 seconds. | |
| 101-255 | Lamp on | ||
| CH17-CH20 | |||
| CH17 | No function | ||
| CH18 | 0-255 | Color wheel speed | from slow to fast |
| CH19 | 0-255 | Dimmer-Prism-Frost Speed | |
| CH20 | 0-255 |
Gobo wheel speed |
|

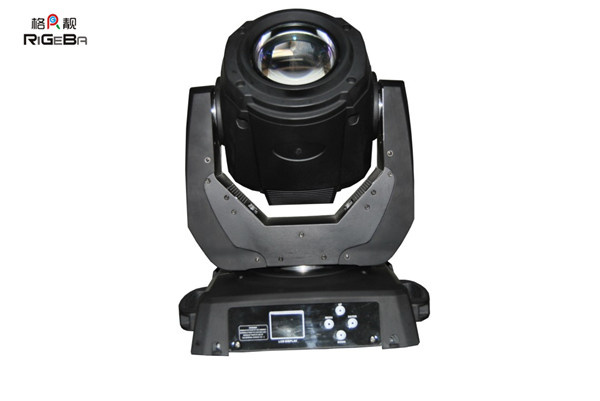

| Prod Model: | RG-M132B-KNH20 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bulb: | Yodn/Philip 2r |
| Color Wheel: | 13 Color Wheel and White |
| Control Signal: | DMX512 |
| Gobo Wheel: | 14 Gobo |
| Control: | Auto-Run Mode, DMX-512 Mode, Sound Active Mode |
| Color: | Black |
| Net Weight: | 15kg |
| DMX Channel: | 16CH / 20CH |
| Prism: | 8 Facet Prism |
| Bulb Service Light: | 2500hours |
| IP Rating: | IP20 |
| Strobe: | Electronic Strobe |
| Control Mode: | Dmx Signal Control |
| Certification: | CE |
| Light Source: | Gas Discharge Bulb |
| Control Channel: | 16CH / 20CH |
| Voltage: | AC110-240V, 50-60Hz |
