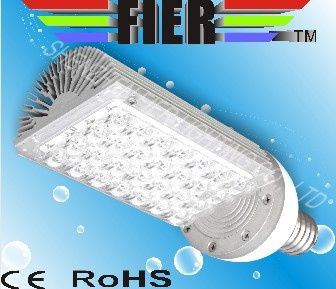

LED street light
Model: FER101
| MAIN SPECIFICATIONS (T=25ºC) |
| NO | ITEM | DESCRIPTION |
| 01 | Input Voltage | AC100-240V / 24VDC |
| 02 | LED | 28pc |
| 03 | Power | 28W |
| 04 | LED Efficiency | 80-90Lm/W |
| 05 | Initial Flux | >2720Lm ( Cool White)
>2590Lm (Nature White)
>2498Lm ( Warm White) |
| 06 | Power factor | >0.9 |
| 07 | Color | Warm White/ Nature White/ Cool White |
| 08 | CRI | Ra>80 |
| 09 | Color Temperature | 2700-3300K( Warm White)
4000-5000K( Nature White)
5300-7000K( Cool White) |
| 10 | Center Illuminance | 1.5M: 263Lux
3.0M: 66Lux
6.0M: 13Lux |
| 11 | Beam Angle | 120° |
| 12 | Life Time | >50000Hrs |
| 13 | Operating Temperature | -25ºC to +55 ºC |
| 14 | Storage Temperature | -40ºC to +65 ºC |
| 15 | Connect Wire | Brown :L Black: L
Blue: N or White:N
Yellow/Green: GND Green: GND |
| 16 | Certifications | CE, ROHS |
| 17 | Net Weight | 1.1Kg |
| 18 | Size | 255*150*96mm |
| 19 | IP Rating | IP65 |
| 20 | Socket Type | E27 E40 |
Installation
1.This product should be installed by trained electricians.
2.Check integrity of the products when unpack the packing .
3.When laying the cables ,make sure that the cables and plugs are not subjected to any tensile or twisting forces. Fit the cable tension relieving mechanisms to the connection points of the surface-mounted lights. Do not kink cables, Output cables should be laid separately and at a distance from other cables.
4.Proceed by connecting the wiring cables to the luminaries ,Usually ,the brown(or black) wire is the live wire,connect it with the terminal marked"L",The blue wire(or white) is naughty wire ,connect it with the terminal marked "N".
5.Used only the LED driver included ,and do not connect the surface-mounted lights to other loads.
Do not remove the name plate of the power supply and driver of the light .
