280W Moving Head Beam Spot Disco Stage DJ Light1 Beam effect(8prism or 16prism) of moving head light
2 GOBOS effect of moving head light.Can be customized logo.Thor-10R Features1 Patent:
(Unique Registered Designs , nice appearance)2 Brighter:
(New 280W Lamp Source Brings Incomparable Pure Brightness)3 Small size but stronger:
(Comparable Output Of 1200W Fixtures,but 1/4 Power Consumption and 1/3 size Only 20kg)4 Best color system:
(1 color wheel 10 colors)5 Best gobo system:
(1gobo wheels: 7 rotating replaceable gobos .gobos can be larger 45°.you can choose your gobos.)
6 Most Funtional:
(Zoom, Iris, Prism, Focus, Frost Filter, Shutter, with full Moving Heads Spot/Wash functions)Technical ParametersPOWER SUPPLIE
Input power:AC110-240V 50/60 Hz
LAMP SOURCE
Lamp: Phillips 10R 280W,2000hours, 8000k
Power Consumption: 350W
OPTICS
Lens: Anti-reflective coated lens
YiLong optic system
Output Lux: 10,500lux at 20 meters
COLOR SYSTEM
Colors: Basic color wheel with 7dichroic mirrors colors
GOBO SYSTEM
7 rotating gobos plus open, all gobos can be easily replaceable and gobo indexing.
gobo shaking in different speed
EFFECTS SECTION
Prism and prism rotating , with 16 prism macros
Linear dimmer in precise speed from 0% ~ 100%
Stepless frost, 0%-100% linear change frost
Motorized focus
Iris from 5%~100% with pulse iris effect.
Strobe/shutter: High speed shutter, 0-13 Hz or random strobe
CONTROL AND PROGRAMMING
DMX Channels: 3 DMX Modes 18 Channels DMX
Control: 3-pinDMX
Control board with LCD Touch screen display
BODY
Remote controller lamp's switch function, display light and lamp's using time
Structure: heat-proof plastic+module pressing alloy materials
MOVING BODY
Pan and tilt movement: 8 and 16 bit resolution
For smooth and precise motion
Movement: Pan: 360°/540°optional, Tilt: 270°
Speed of pan/tilt movement adjustable
Scan position memory, auto reposition after unexpected movement
WEIGHT&SIZE
Weight: 20kgs
Dimensions: 409*419*541mm
10R 280W Spot

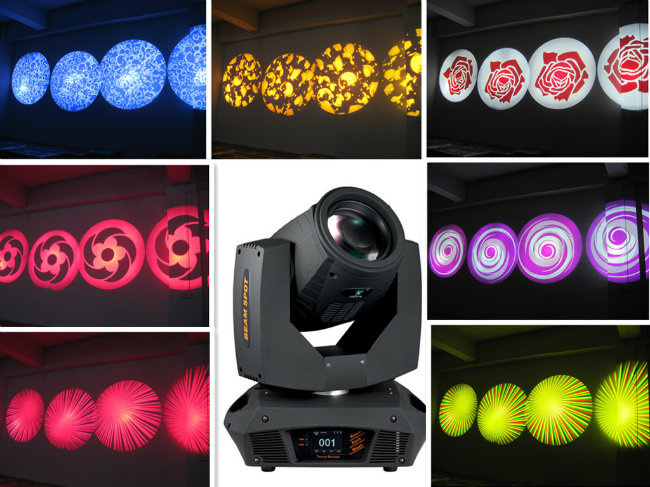

Gobo Effect

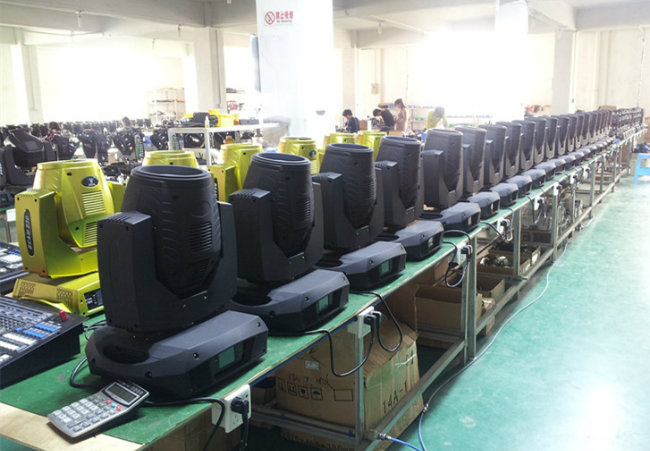

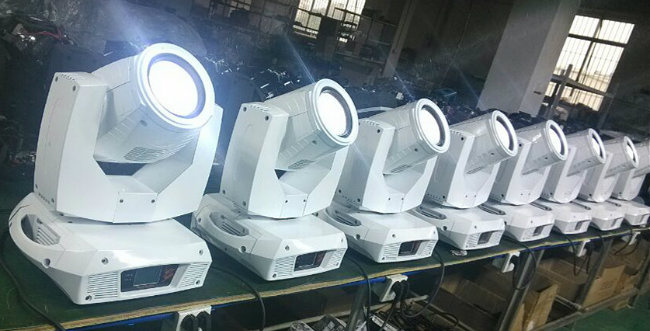

Moving Head Spot Production Line
Price term | EXW price |
| Payment terms | TT/Western union |
| Shipping Wa y | 1. by Express ( DHL, Fedex, Ups, EMS)
2. by Air
3. by Sea |
| Sample time | 1-3 business days |
Production
time | 5-20 days, but ultimately subject to order quantity |
| Packing | 1. Using EPE packing the goods in case damage
2. Then put it into the Standard carton
3. Flightcase optional |
| Warranty | 1 year |
After-sell
Service | 1. If there is a problem with the product, please describe it and sent the necessary picture or video to us for analyzing.
2. Then we will guide you how to fix it and provide free accessories if needed.
3, For big problem,you can send the products to our factory,then we will send a new one to you!
|
Used for stage/disco/KTV/night club/bar/big show/party/wedding,some other kinds entertainment places and so on.Related stage light230w 7r beam moving head light;330w beam moving head light;200w 5r beam moving head and so on.
Guangzhou Ling Yue Stage Lighting Equipment Co., Ltd. Was founded in 2002, is a professional company engaged in "safety, environmental protection, energy saving" intelligent stage lighting, architectural lighting and LED products R & D, production and sales of integrated high-tech enterprise, has an area of 2800 square meters of photovoltaic Yue Ling High-tech Park, is currently China's large-scale professional lighting business.
2009, Ling Yue stage lighting equipment company started its own brand - LY enter the international market, a comprehensive introduction of international advanced management concepts, lighting techniques to employ international top talent for product development. Currently, stage lighting equipment company spirit jump more than 50% of products are exported to Europe, America, Asia and other 60 countries and regions, sales network and service centers throughout the world. Over the years, the spirit jump in the intelligent optical stage lighting, architectural lighting and LED products manufacturing technology and other fields has developed a large number of landmark innovative products.
Looking to the future, Ling Yue stage lighting equipment company to "create a world-class lighting companies, casting light top international brand" for long-term development goals. By constantly enhance the ability of international operations, the establishment of proprietary technology, optimize the pre-sale and after-sale service system professionals, the development of the most innovative international, a global leader in professional lighting business.
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
Our company has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over our country. Warmly welcome all fields of friends to visit our company and negotiate trade.
We sincerely welcome new and old customers at home and abroad. Let us work together to develop the international market.
Welcome to order, we will serve you.
