Product Description
Specification:

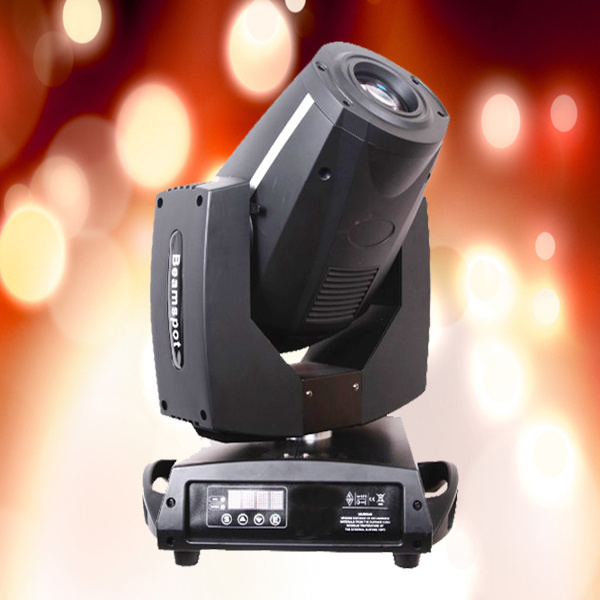

280W Beam Wash Spot 3in1 Cmy Moving Head Light 10r
Power Supply: AC100-240V, 50-60Hz
Ballast: Electronic Ballast
Lamp: OSRAM HRI 280W
Average Lifespan: 2200Hrs
Power consumption: 470W
Lens: high precision optical lens
Color wheel: 13 dichroic filters + white
Gobo wheel:Rotating Gobo Wheel, with 9 bidirectional and indexable gobos (outside diameter: 15,4 mm, image diameter: 13 mm)
Static Gobo wheel with 14 fixed gobos, at variable rotation
Prism 1: 8-facet circular prism rotating in both directions at different speeds
Prism 2: 6-facet linear prism rotating in both directions at different speeds
Zoom: parallel beam angel 2.5°-20° change
Wash effect: adjustable Wash effects angle
Focus: Electronic focus
Dimmer: 0-100% linear adjustment
Strobe: Double lens strobe (0.5-9 times/ second)
Pan/Tilt: X axis 540° Y axis 270°automatically accurate positioning
Fixation option: Pan/Tilt-lock mechanism
Control mode: Standard DMX512, Automatic and Master/ slave mode
Channel: 16 CHs / 24 CHs
Other Function: Controller can open the lamp and reset, including delaying function
Carton package: 386 *365 *589 mm
Net weight: 19kg Gross weight: 19.5kg
Power Supply | Input Voltage: AC100-240V 50-60Hz Power Consumption: 470Watts, Neutrik PowerCon |
Light source | YODN 280w 10R For China Moving Heads 2,000 h life time |
Optical system | Zoom range: 2.5°-10° beam application; 5° - 20° spot |
Zoom&Focus | Motorized zoom and focus |
DMX control | Standard USITT DMX-512, Locking 3-pin & 5-pin XLR |
Moving head range | 3 phase motor for fast movement 540° in Pan and 270° in Tilt |
Weights&Measures | Height: 575 mm (22.6") Width: 364 mm (14.3") Depth: 260 mm (10.2"), Weight: 15 kg (33 lbs) |
DMX channels | 24 / 16 / 30CHs |
Colour wheel | 13 dichroic filters + white |
Gobo wheels | Rotating Gobo wheel: 9 rotating, indexable and replaceable "SLOT&LOCK" glass gobos + open Static Gobo wheel: 14 gobos + open |
Prisms | Prism 1: 8-facet circular prism rotating in both directions at different speeds Prism 2: 6-facet linear prism rotating in both directions at different speeds |
Frost effect | Separate, variable |
Dimmer/Shutter | Full range dimming and variable strobe effect |
Rigging | Mounting parts: 2 x Omega bracket with ¼-turn quick locks 1 x Safety Wire |
Guangzhou JINNAITE Stage Lighting Equipment Factory is a professional manufacturer of stage lighting and outdoor lighting. Our products are also CE-certified and RoHS Directive-compliant. The main products are: Outdoor searchlight, Moving head light, Laser light, LED PAR light, LED effect light, Light controller, Follow spot light, Beam light, Stage effect machines. Our products can be widely used in places of entertainment like DJ, Club, all kinds of stage, party, and outdoor building. We offer comprehensive services from design to product assembly. Send us your custom requirements and we'll have a sample ready in just three days. Why not contacting us for high quality products with competitive price!
