1) Color Temperature: Warm White: 2, 700 ~3, 500K, Cool White: 5, 000~6, 500K
2) CRI: Ra> 80
3) Power Factor: > 0.9
4) Outdoor Application: IP65 qualified
5) Life Span: 50, 000 hours
6) Warranty: 3 years
7) Certification: CE, RoHS
8) Housing Color: White
Features:
1. Rated Voltage: 85~265VAC. Operating Frequency: 50~60Hz. Power Factor: >0.95
2. High efficiency imported LED chips, Patented technology for LED integrated encapsulation, , LED efficiency can reach 100lm/W.
3. Protection level reach to IP65, Insulation Class: CLASS 1.
4. Die-casting part is high quality aluminum alloy with high thermal conductivity; 3.5mm lead-free super-white toughened glass.
5. Net weight: 6.9KG, Gross weight: 7.4KG.
6. LED driver efficiency up to 91%; Constant current accuracy 5%; LED works more stable.
7. LED chip Junction Temp≤ 85 centigrade. Fixture output efficiency 85%. Operating temperature range -40 centigrade~+ 55 centigrade.
8. Application: Factories, gymnasiums, yards, advertising boards, buildings, lawns, garden designs and so on for outdoor,
Package:
Product Size: 360LX285WX110H mm
Product Weight: 6.9kg
Pack Size 2PCS/ Carton
Carton Size: 470LX330WX355H mm
Gross Weight / Carton: 14.7kg
|
Item Number |
WD-FL-360A-80W |
|
Description |

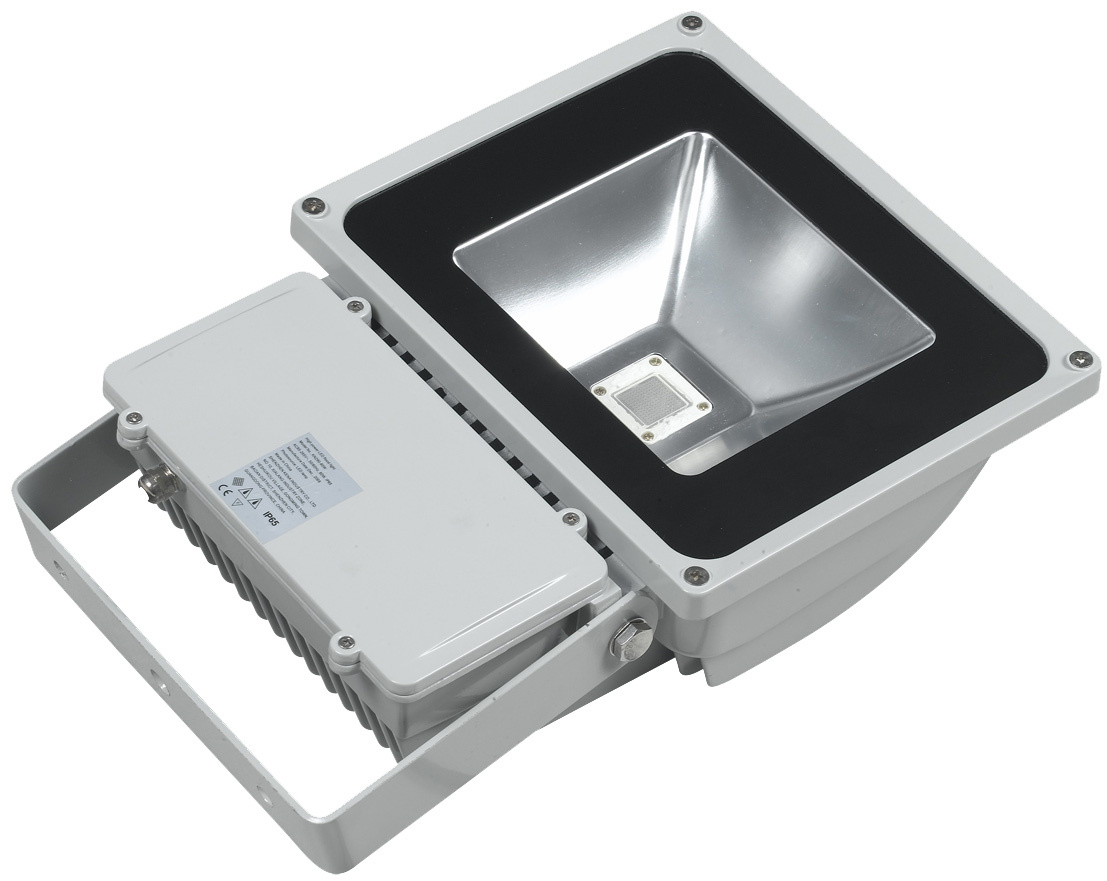

LED Flood Light |
|
Input Voltage: |
85~265V AC |
|
Frequency Range |
50Hz~60Hz |
|
Total Harmonic Distortion |
< 9% |
|
Power Factor |
> 0, 98 |
|
LED Working Voltage |
30~36V DC |
|
LED |
1 pc Bridgelux SMD LED source |
|
System Consumption |
88W |
|
LED Consumption |
78W |
|
LED Luminous Efficiency |
70~80 lm/W |
|
LED Initial Flux |
WW: 5, 584lm CW: 5, 878lm |
|
Lamp Efficiency |
> 80% |
|
Average Illuminance |
Height of 1 meter: 1822.0 lux Height of 3 meter: 202.4 lux Height of 5 meter: 72.9 lux |
|
Beam Angle |
80 degree |
|
Illuminance Area |
Height of 1 meter: 1*1 m Height of 3 meter: 4*4 m Height of 5 meter: 6*6 m |
|
Illuminance Uniformity |
> 0, 4 |
|
Color Temperature |
2, 700~7, 000K |
|
Color Rendering Index |
WW: Ra> 68, PW, CW: Ra> 75 |
|
Light Distribution |
Sysmmetric/ Rectangle |
|
Junction Temperature |
< 80 centigrade |
|
Operation Temperature |
from -40 centigrade to + 55 centigrade |
|
IP Grade |
IP65 |
|
Life Span |
at least 50, 000 hours |
|
Connect Wire |
L/N/G |
|
Housing Material |
Aluminum |
