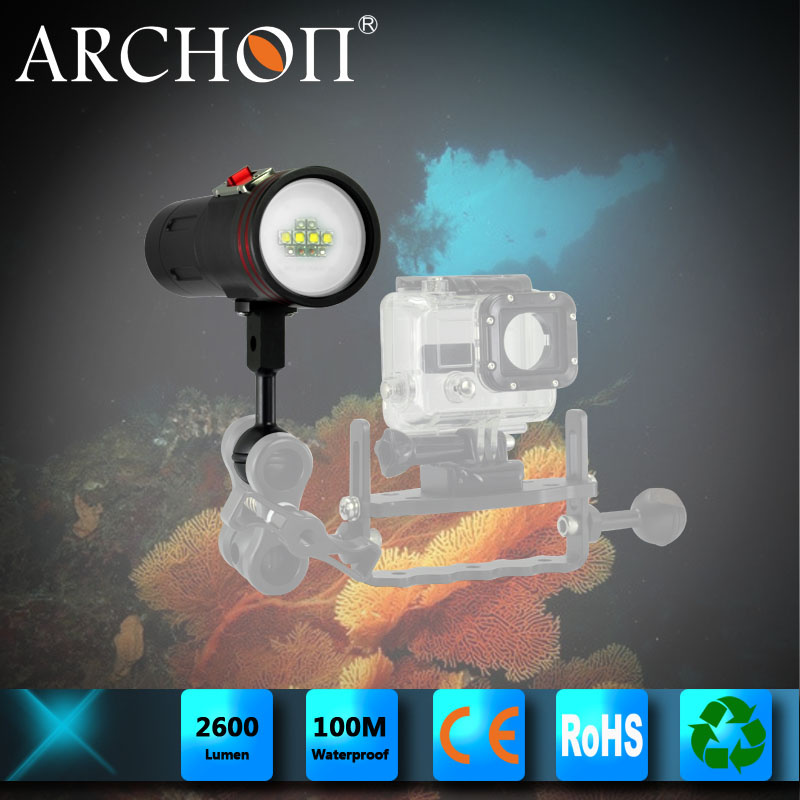

2600 Lumens Waterproof 100 meters UV Powerful Photography/Video Lights W40VR
ARCHON W40VR is multi-functional diving photographing light with white, red, purple and UV high-power LED. With brightness of 2600 lumens, light angle of 120° And max run-time over 5 hours, this professional video light can be used in various underwater environment.
Basic Information:
(1)Model No.: W40VR
(2)IP Rating: IP68
(3) Certification: CCC, CE, FCC, RoHS, CE, RoHS, SGS and Ipx8
(4) Emitting Color: White/red/purple/UV
(5) Application: Professional Diving, Underwater 100m
(6) Model: 2600 Lm New Video/Photo light
(7)LED: CREE Xm-L U2 LED*10
(8)Switch 1: Red light-purple light- UV light-OFF
Switch 2: White light-high-low-SOS-OFF
(9) Battery: 32650 Li- Ion Battery *1
(10)Operation Voltage: 2.8V to 4.5V
(11) Waterproof: 100 Meters Underwater
(12) Waterproof Standard: Waterproof 100m Underwater
(13) Export Markets: Global
(14)Brightness: White light: 2600lumens
Red light: 200lumens
Purple light: 6W
UV light: 6W
(15)Bulb: White CREE XM-L U2 LED *4 (max 2600 Lumens);
Red CREE XP-E N3 LED*2 (620nm)
Purple light X 2 wave length: 410nm
UV X 2 length: 365nm
1. Model: W40VR Multifunction Diving Video Light
2. Bulb: White CREE XM-L U2 LED *4 (max 2600 Lumens); Red CREE XP-E N3 LED*2 (max 200 3. Lumens), Purple 6565 LED*2, UV LED*2
4. Color temperature: White LED: 5700-7000k;
5. Output levels. Red -White -White low>Red
6. Runtime: High: 60 min(White ), Low: 300 min (Red, Purple, UV)
7. Reflector: No hotspot design, no reflector
8. Body material: Durable aircraft-grade aluminum.
9. Angle of light beam: 120°
10. Surface treatment: Premium Type III hard-anodizing.
11. Color: Black
12. Battery: 32650 Li- ion battery *1.
13. With battery over-discharging protection, polarity reversing protection
14. Waterproof: 100 meters underwater
15. Dimensions: 124.8mm (length)*50mm (dia. Of head).
16. Impact resistance: 1.5M.
17. Underwater Weight: 220 grams (with battery)
18. Operation Instruction: Successive switching ON-OFF within two seconds to cycle through white, red, purple, UV.
Model |
W40VR |
Bulb |
White CREE XM-L U2 LED *4 ( max 2600 Lumens); Red CREE XP-E N3 LED*2(max200 lumens), purple 6565 LED*2, UV LED*2 |
Color temperature |
White LED:5700-7000K |
Output levels |
White high-white low-SOS; Red-purple-UV |
Runtime |
High: 60 min (White), low: 300 min (Red, Purple, UV) |
Switch mode |
Switch 1:red light-purple light- UV light-OFF Switch 2:white light-high-low-SOS-OFF
The two switches can be operated separately or simultaneously. |
Reflector |
No hotspot design, no reflector |
Lens |
4mm Polycarbonate Board |
Body material |
Durable aircraft-grade aluminum |
Angle of light beam |
120degree |
Surface treatment |
Premium Type III hard-anodizing |
Circuit |
Strengthened type step-up and step-down voltage constant current drive circuit, high efficiency double mode DC - DC regulator (PWM / PFM) and circuit in case of over-discharge of lithium-ion batteries. |
Low-voltage-alarm function |
Flash 3 times when the battery voltage lower than 2.6V then Switch to low brightness mode automatically Specially designed for diving. |
Battery |
32650 Li- ion battery *1 With battery over-discharging protection, polarity reversing protection |
Operation voltage |
2.8V to 4.5V |
Dimensions |
124.8mm (length)* 50mm (dia. of head) |
Weight |
345grams (without battery); 483 grams (with battery) |
Underwater Weight |
220 grams (with battery) |
Impact resistance |
1.5 M |
Operation Instruction |
Successive switching ON-OFF within two seconds to cycle through white, red, purple |
