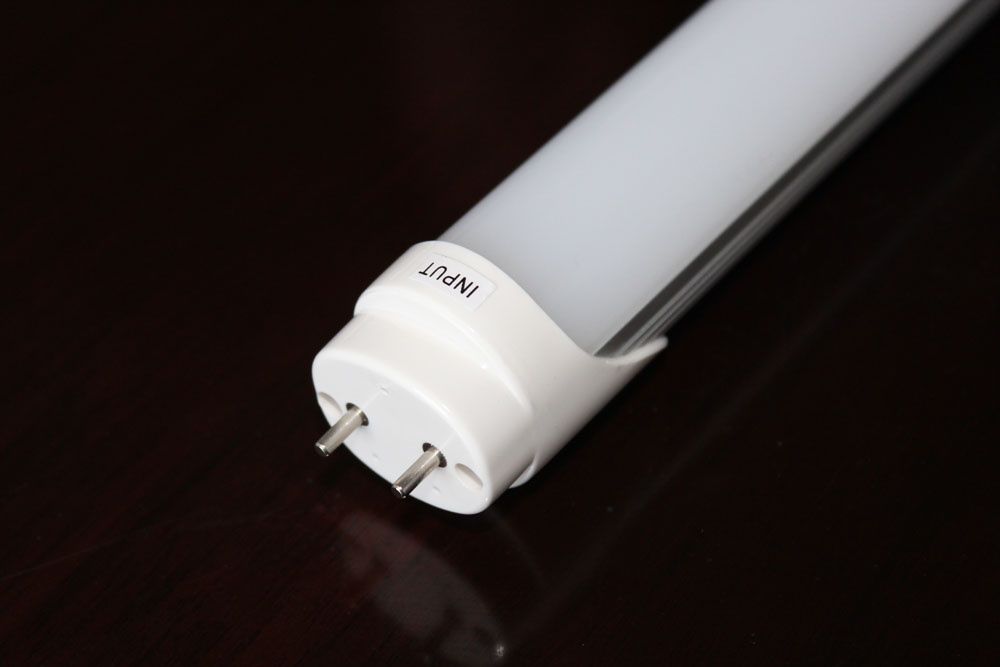

25w energy saving 1.5m t8 led tube light for indoor use
Feature of 2835SMD Led tube light:
1) Large Heat Sink: 2-3 times bigger heat sink than smd3528/smd3014, excellent heat dissipation structure
design which reduces light decay and makes the lifespan longer.
2) Large Light Emitting Surface: can improve the light-extraction efficiency to 90%.
3) Ultra-thin structure: will solve the long-standing light spot problem of smd3528 and smd3014.
4) High luminous efficiency: the luminous efficiency can be up to 90-100LM/W.
5) Super stability: low light decay material, mature technology and production process.
6) Low cost performance: can save 20% cost to achieve the same lumen flux, 2.4m 40w t8 led light .
7) Color temperature: can be lower to 2000K, up to 105000K.
Model No | Power | Size | LED Type | Color Temperature(K) | Luminous flux(lm) | Input Voltage | Light efficiency |
TP-T8-2835-10W | 10W | 600*Φ26 | 2835 48 pcs | 2700K-6500K | 750 lm | 85-265V | >80LM/W |
TP-T8-2835-14W | 14W | 900*Φ26 | 2835 72PCS | 2700K-6500K | 1250 lm | 85-265V | >80LM/W |
TP-T8-2835-18W | 18W | 1200*Φ26 | 2835 96PCS | 2700K-6500K | 1590 lm | 85-265V | >80LM/W |
TP-T8-2835-22W | 22W | 1200*Φ26 | 2835 105PCS | 2700K-6500K | 2050 lm | 85-265V | >80LM/W |
TP-T8-2835-25W | 25W | 1500*Φ26 | 2835 105PCS | 2700K-6500K | 2250 lm | 85-265V | >80LM/W |
Advantage of 2835SMD:
Generally speaking, SMD 2835 design is newer and more advanced than 3014than 3528.
1.Because 2835 has more effective thermal dissipation system, specifically, a larger heat sink than 3014 on the back
2.3528 has no back heat sink at all, therefore 2835 is able to take higher current and generates more luminous flux
Packing:
ITEM | QTY PER CARTON | CARTON DIMENSION | CARTON GROSS WEIGHT |
60CM | 30 | 75*25*25 cm | 8.5KG |
90CM | 30 | 105*25*25 cm | 10.5KG |
120CM | 30 | 135*25*25 cm | 12.5KG |
150CM | 30 | 165*25*25 cm | 15.2KG |
Remark: generally the shipping cost will based on Volumetric weight because the carton size is big.
Such as 120cm tube = 135x25x25/5000= 17kg~18kg depends on actual measure by different Express Companies.
As a member of LECHANCE GROUP, Topsung Industrial Co., Limited is a professional manufacturer and exporter of lighting and IT products in Shenzhen for 10 years.
Topsung Industrial Co., Ltd has two factories (Partner or Shareholder):
One factory (Called "Chatway") with 1000 square meter production line, manufactures and distribute walkie-talkies and two way radios for 10 years since 2005.
Another factory (Topsung Lighting) with 3000 square meter production line, has 8 years experience on distributing & producing LED lndoor lights and decorative lights since 2008
Main & Hotsale products:
1) Decoration LED lights: LED neon Flex, LED rope Light, LED christmas lights
2) Indoor LED Lights: LED Linear Lights, LED Panel lights, LED tube lights
Our advantage: Trustable quality, lower price, fast delivery, strong technical support, good RMA policy.
We believe that: Innovation, high-quality, low price and great efficiency will bring both parties with long-term mutual benefits.
OEM and ODM services are welcomed.
