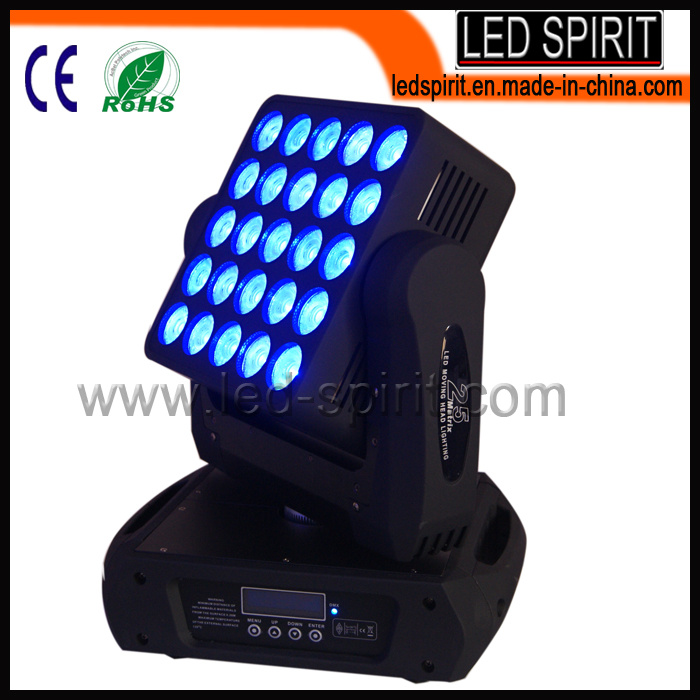

25PCS Matrix LED Moving Head Effect Disco Stage Light
Product Description:
Infinity pan/tile control, flowing water effect, built in programs with number/symbols/letters/static image effect. It can widely used inuse in Show Bar, Multi-function Hall, Entertainment Places, etc
LED Matrix Magic Panel Moving Head Effect Disco Stage Light (LED-41)
Technical parameter:
1. Input Voltage: AC110-240V, 50/60Hz
2. LED Quantities: 25PCS *10W RGBW 4in1 LEDs
3. Control Signal: DMX 512, Master-slave, Sound Active, Auto Run
4. Control Channel: 117/29/19 CHs for optional
5. Power Consumption: 450W
6. LED lifespan: 500, 00 hours
7. Strobe: High-speed electronic strobe / random strobe, 1-25 times / sec
8. Beam Angle: 11°
9. Pan: Infinite control
10. Tilt: Infinite control
11. Color: RGBW infinite mixture
12. Dimmer: 0-100% linear dimming system
13. Display: LCD blue display with Chinese and English language
14. Net Weight: 13kg
15. Gross Weight: 17kg
Features:
1. Source: 25PCS 10W CREE 4-in-1 LEDs
2. Protection: Auto temperature control system with big cooling fan. Quiet, smooth and fast PAN/TILT movement
Low noise and efficient fan cooling system
3. Built-in pre-programs with macro effects.
4. PowerCon power connector
5.45° C max ambient temperature
6. IP20 protection rating
7.3-Pin XLR and 5-Pin XLR DMX input/output
8. Function: With LED shutter, scan position memory and auto reposition.
9. Following water effect, numbers/symbols/letters/static image effect display
10. Perfectly suitable for Show Bar, Multi-function Hall, Entertainment Places, etc
Delivery time:
Sample order, 3-5 working days, Formal order, need 10-15 working days.
Payment term:
T/T: 30% deposit, and 70% balance before delivery.
Shipping Way:
- All the items will test before dispacth to ensure the item arrived in a good condition.
- We will ship by UPS, USPS, FedEx within 2-3 working days after received the payment. (about 2-5 days arrived to your door)
- Also ship by sea, air.
Application Field:
TheLED Matrix Magic Panel Moving Head Effect Disco Stage Light can use widely, such as can use in Show Bar, Multi-function Hall, Entertainment Places, etc
Channel list
117 CH | Function | State | Description |
1 | X axis | 0~255 | 0~540° |
2 | X infinite control | 0~55 | Stop for pan movement |
56~155 | Forward pan movement from slow to fast |
156~255 | Continue backward pan movement from slow to fast |
3 | X Calibration | 0~255 | 16 bit adjustable |
4 | Y axis | 0~255 | 0~270 ° |
5 | Y infinite control | 0~55 | Stop for tilt |
56~155 | Forward tilt movement from slow to fast |
156~255 | Continues backward tilt movement from slow to fast |
6 | Y Calibration | 0~255 | 16bit adjustable |
7 | XY speed | 0~255 | From slow to fast |
8 | Master dimming | 0~255 | 0-255 dimming from dark to bright |
9 | strobe | 0~3 | NULL |
4~95 | Strobe effect from slow to fast(1HZ~25HZ) |
96~176 | Random strobe effect |
177~255 | Lightning strobe |
10 | R1 dimming | 0~255 | LED1 red dimming from dark to bright |
11 | G1 dimming | 0~255 | LED1 green dimming from dark to bright |
12 | B1 dimming | 0~255 | LED1 blue dimming from dark to bright |
13 | W1 dimming | 0~255 | LED1 white dimming from dark to bright |
… | … |
| ...…. |
… | … |
| ...…. |
106 | R25 dimming | 0~255 | LED25 red dimming from dark to bright |
107 | G25 dimming | 0~255 | LED25 green dimming from dark to bright |
108 | B25 dimming | 0~255 | LED25 blue dimming from dark to bright |
109 | W25 dimming | 0~255 | LED25 white dimming from dark to bright |
110 | Built in program (Numbers/symbols) | 0~8 | 0 |
9~17 | 1 |
18~26 | 2 |
27~35 | 3 |
36~44 | 4 |
45~53 | 5 |
54~62 | 6 |
63~71 | 7 |
72~80 | 8 |
81~89 | 9 |
90~98 | "+" |
99~107 | "~" |
108~116 | "×" |
117~125 | "÷" |
126~134 | "/" |
135~143 | "<" |
144~152 | ">" |
153~161 | "?" |
162~170 | "*" |
171~179 | "!" |
180~188 | "#" |
189~197 | "~" |
198~206 | "^" |
207~215 | "$" |
216~224 | "→" |
225~233 | "" |
234~255 | flowing water effect |
111 | Built in program (letters) | 0~8 | A |
9~17 | B |
18~26 | C |
27~35 | D |
36~44 | E |
45~53 | F |
54~62 | G |
63~71 | H |
72~80 | I |
81~89 | J |
90~98 | K |
99~107 | L |
108~116 | M |
117~125 | N |
126~134 | O |
135~143 | P |
144~153 | Q |
154~161 | R |
162~170 | S |
171~179 | T |
180~188 | U |
189~197 | V |
198~206 | W |
207~215 | X |
216~224 | Y |
225~234 | Z |
235~255 | flowing water effect |
112 | Built in program (image) | 0~8 | Image 1 |
9~17 | Image 2 |
18~26 | Image 3 |
27~35 | Image 4 |
36~44 | Image 5 |
45~53 | Image 6 |
54~62 | Image 7 |
63~71 | Image 8 |
72~80 | Image 9 |
81~89 | Image 10 |
90~98 | Image 11 |
99~107 | Image 12 |
108~116 | Image 13 |
117~125 | Image 14 |
126~134 | Image 15 |
135~143 | Image 16 |
144~153 | Image 17 |
154~161 | Image 18 |
162~170 | Image 19 |
171~179 | Image 20 |
180~188 | Image 21 |
189~197 | Image 22 |
198~206 | Image 23 |
207~215 | Image 24 |
216~224 | Image 25 |
225~234 | Image 26 |
235~255 | flowing water effect |
113 | Symbol colors selection | 0~24 | Color 1 |
25~49 | Color 2 |
50~74 | Color 3 |
75~99 | Color 4 |
100~124 | Color 5 |
125~149 | Color 6 |
150~174 | Color 7 |
175~199 | Color 8 |
200~224 | Color 9 |
225~249 | Color 10 |
250~255 | Color 11 |
114 | Effect of dynamic display | 0~24 | Effect 1 |
25~49 | Effect 2 |
50~74 | Effect 3 |
75~99 | Effect 4 |
100~124 | Effect 5 |
125~149 | Effect 6 |
150~174 | Effect 7 |
175~199 | Effect 8 |
200~224 | Effect 9 |
225~255 | Effect 10 |
115 | Led effect speed | 0~255 | From fast to slow |
116 | Macroefficiency | 0~49 | NULL |
50~74 | Symbols display(built in effect) |
75~99 | Letters display(built in effect) |
100~124 | Static image display(built effect) |
125~149 | Dynamic effect display(built in effect) |
150~199 | Auto run |
200~255 | Sound active |
117 | Reset | 0~250 | FULL |
251~255 | Reset for light ,valid time 3s. |
|
29CH | Function | State | Description |
1 | X axis | 0~255 | 0~540° |
2 | X infinite control | 0~55 | Stop for pan moment |
56~155 | Forward pan movement from slow to fast |
156~255 | Backward pan movement from slow to fast |
3 | X Calibration | 0~255 | 16bit adjustable |
4 | Y axis | 0~255 | 0~270° |
5 | Y infinite control | 0~55 | Stop for tilt movement |
56~155 | Forward tilt movement from slow to fast |
156~255 | Backward tilt movement from slow to fast |
6 | Y Calibration | 0~255 | 16bit adjustable |
7 | XY speed | 0~255 | From fast to slow |
8 | Master dimming | 0~255 | 0-255 dimming from dark to bright |
9 | strobe | 0~3 | NULL |
|
| 4~95 | Strobe effect from slow to fast(1HZ~25HZ) |
|
| 96~176 | Random strobe effect |
|
| 177~255 | Lightning strobe |
10 | R1 dimming | 0~255 | Group 1 Red dimming from dark to bright |
11 | G1 dimming | 0~255 | Group 1 Green dimming from dark to bright |
12 | B1 dimming | 0~255 | Group 1 Blue dimming from dark to bright |
13 | W1 dimming | 0~255 | Group 1 White dimming from dark to bright |
14 | R2 dimming | 0~255 | Group 2 Red dimming from dark to bright |
15 | G2 dimming | 0~255 | Group 2 Green dimming from dark to bright |
16 | B2 dimming | 0~255 | Group 2 Blue dimming from dark to bright |
17 | W2 dimming | 0~255 | Group 2 White dimming from dark to bright |
18 | R3 dimming | 0~255 | Group 3 Red dimming from dark to bright |
19 | G3 dimming | 0~255 | Group 3 Green dimming from dark to bright |
20 | B3 dimming | 0~255 | Group 3 Blue dimming from dark to bright |
21 | W3 dimming | 0~255 | Group 3 White dimming from dark to bright |
22 | Symbol effect display | 0~8 | 0 |
9~17 | 1 |
18~26 | 2 |
27~35 | 3 |
36~44 | 4 |
45~53 | 5 |
54~62 | 6 |
63~71 | 7 |
72~80 | 8 |
81~89 | 9 |
90~98 | "+" |
99~107 | "~" |
108~116 | "×" |
117~125 | "÷" |
126~134 | "/" |
135~143 | "<" |
144~152 | ">" |
153~161 | "?" |
162~170 | "*" |
171~179 | "!" |
180~188 | "#" |
189~197 | "~" |
198~206 | "^" |
207~215 | "$" |
216~224 | "→" |
225~233 | "" |
234~255 | Flowing water effect |
23 | Letters effect display | 0~8 | A |
9~17 | B |
18~26 | C |
27~35 | D |
36~44 | E |
45~53 | F |
54~62 | G |
63~71 | H |
72~80 | I |
81~89 | J |
90~98 | K |
99~107 | L |
108~116 | M |
117~125 | N |
126~134 | O |
135~143 | P |
144~153 | Q |
154~161 | R |
162~170 | S |
171~179 | T |
180~188 | U |
189~197 | V |
198~206 | W |
207~215 | X |
216~224 | Y |
225~234 | Z |
235~255 | Flowing water effect |
24 | Static image display | 0~8 | Image 1 |
9~17 | Image 2 |
18~26 | Image 3 |
27~35 | Image 4 |
36~44 | Image 5 |
45~53 | Image 6 |
54~62 | Image 7 |
63~71 | Image 8 |
72~80 | Image 9 |
81~89 | Image 10 |
90~98 | Image 11 |
99~107 | Image 12 |
108~116 | Image 13 |
117~125 | Image 14 |
126~134 | Image 15 |
135~143 | Image 16 |
144~153 | Image 17 |
154~161 | Image 18 |
162~170 | Image 19 |
171~179 | Image 20 |
180~188 | Image 21 |
189~197 | Image 22 |
198~206 | Image 23 |
207~215 | Image 24 |
216~224 | Image 25 |
225~234 | Image 26 |
235~255 | Flowing water effect |
25 | Symbol color selection | 0~24 | Color 1 |
25~49 | Color 2 |
50~74 | Color 3 |
75~99 | Color 4 |
100~124 | Color 5 |
125~149 | Color 6 |
150~174 | Color 7 |
175~199 | Color 8 |
200~224 | Color 9 |
225~249 | Color 10 |
250~255 | Color 11 |
26 | Dynamic effect display | 0~24 | Effect 1 |
25~49 | Effect 2 |
50~74 | Effect 3 |
75~99 | Effect 4 |
100~124 | Effect 5 |
125~149 | Effect 6 |
150~174 | Effect 7 |
175~199 | Effect 8 |
200~224 | Effect 9 |
225~255 | Effect 10 |
27 | Led effect speed | 0~255 | From fast to slow |
28 | Macroefficiency | 0~49 | NULL |
50~74 | Symbol display(built in effect) |
75~99 | Letters display (built in effect) |
100~124 | Static image display( built in effect) |
125~149 | Dynamic effect display( built in effect) |
150~199 | AUTO RUN |
200~255 | Sounds active for light |
29 | Reset | 0~250 | NULL |
| 251~255 | Reset for light ,valid time is 3s |
|
19CH | Function | State | Description |
1 | X axis | 0~255 | 0~540° |
2 | X infinite control | 0~55 | Stop for pan movement |
56~155 | Forward pan movement from slow to fast |
156~255 | Backward pan movement from slow to fast |
3 | Y axis | 0~255 | 0~270° |
4 | Y infinite control | 0~55 | Stop for tilt movement |
56~155 | Forward tilt movement from slow to fast |
156~255 | Backward tilt movement from slow to fast |
5 | XY speed | 0~255 | From fast to slow |
6 | Master dimming | 0~255 | 0-255 dimming from dark to bright |
7 | strobe | 0~3 | NULL |
4~95 | Strobe effect from slow to fast(1HZ~25HZ)) |
96~176 | Random strobe effect |
177~255 | Lightning strobe |
8 | R dimming | 0~255 | Red dimming from dark to bright |
9 | G dimming | 0~255 | Green dimming from dark to bright |
10 | B dimming | 0~255 | Blue dimming from dark to bright |
11 | W dimming | 0~255 | White dimming from dark to bright |
12 | Symbol effect display | 0~8 | 0 |
9~17 | 1 |
18~26 | 2 |
27~35 | 3 |
36~44 | 4 |
45~53 | 5 |
54~62 | 6 |
63~71 | 7 |
72~80 | 8 |
81~89 | 9 |
90~98 | "+" |
99~107 | "~" |
108~116 | "×" |
117~125 | "÷" |
126~134 | "/" |
135~143 | "<" |
144~152 | ">" |
153~161 | "?" |
162~170 | "*" |
171~179 | "!" |
180~188 | "#" |
189~197 | "~" |
198~206 | "^" |
207~215 | "$" |
216~224 | "→" |
225~233 | "" |
234~255 | Flowing water effect |
13 | Letters effect display | 0~8 | A |
9~17 | B |
18~26 | C |
27~35 | D |
36~44 | E |
45~53 | F |
54~62 | G |
63~71 | H |
72~80 | I |
81~89 | J |
90~98 | K |
99~107 | L |
108~116 | M |
117~125 | N |
126~134 | O |
135~143 | P |
144~153 | Q |
154~161 | R |
162~170 | S |
171~179 | T |
180~188 | U |
189~197 | V |
198~206 | W |
207~215 | X |
216~224 | Y |
225~234 | Z |
235~255 | Flowing water effect |
14 |
Static image display
| 0~8 | Image 1 |
9~17 | Image 2 |
18~26 | Image 3 |
27~35 | Image 4 |
36~44 | Image 5 |
45~53 | Image 6 |
54~62 | Image 7 |
63~71 | Image 8 |
72~80 | Image 9 |
81~89 | Image 10 |
90~98 | Image 11 |
99~107 | Image 12 |
108~116 | Image 13 |
117~125 | Image 14 |
126~134 | Image 15 |
135~143 | Image 16 |
144~153 | Image 17 |
154~161 | Image 18 |
162~170 | Image 19 |
171~179 | Image 20 |
180~188 | Image 21 |
189~197 | Image 22 |
198~206 | Image 23 |
207~215 | Image 24 |
216~224 | Image 25 |
225~234 | Image 26 |
235~255 | Flowing water effect |
15 | Symbol color selection | 0~24 | Color 1 |
25~49 | Color 2 |
50~74 | Color 3 |
75~99 | Color 4 |
100~124 | Color 5 |
125~149 | Color 6 |
150~174 | Color 7 |
175~199 | Color 8 |
200~224 | Color 9 |
225~249 | Color 10 |
250~255 | Color 11 |
16 | Static effect display | 0~8 | Effect 1 |
9~17 | Effect 2 |
18~26 | Effect 3 |
27~35 | Effect 4 |
36~44 | Effect 5 |
45~53 | Effect 6 |
54~62 | Effect 7 |
63~71 | Effect 8 |
72~80 | Effect 9 |
81~89 | Effect 10 |
17 | Led effect speed | 0~255 | From fast to slow |
18 | Macroefficiency | 0~49 | NULL |
50~74 | Symbol display(built in effect) |
75~99 | Letters display (built in effect) |
100~124 | Static image display( built in effect) |
125~149 | Dynamic effect display( built in effect) |
150~199 | AUTO RUN |
200~255 | Sounds active for light |
19 | Reset | 0~250 | NULL |
251~255 | Reset for light,valid time is 3s |
LED Spirit Co., Ltd. is a professional supplier of stage light with several years of experience in researching, developing and selling. As an excellent brand, LED Spirit Co., Ltd. Win high reputation as a professional brand for over many years in overseas market.
LED Spirit Co., Ltd. Has many series of products, such as Moving Head Light Series, LED PAR Light Series, LED Effect Light Series, LED Wash Light Series, LED Strobe Light Series. Our products are suitable for various entertainment place, such as wedding and parties, TV studio, performing arts plaza, theater, Disco club, bars, KTV, the family party and so on.
LED Spirit Co., Ltd. Strictly execute each manufacturing process according to the demands of ISO-9001/QC080000, and make sure to achieve good product quality and service. In order to keep the high competitive in the international market, We actively absorbs and innovates international advanced technology by means of talent accumulation and technological advantages in R&D. Our company constantly develops new products every year.
We look forward to and warmly welcome cooperating with friends all over the world.
