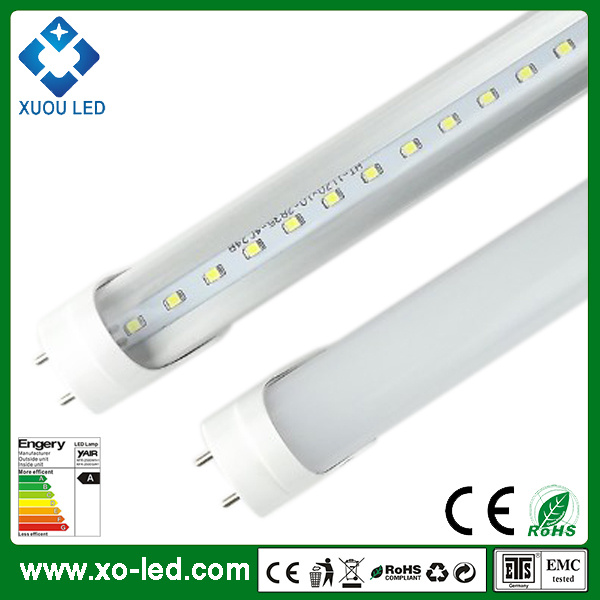

1.5m 24W 2200 to 2500LM SMD 2835 T8 LED Lighting Tube
Features:
1. Isolated Constant Current Power Supply, much Safer
2. Aluminum PCB Board
3. High Luminous Efficiency and no Light Spot
4.0.95 High Power Factor
Installation Guide:
If you are going to order LED T8 tubes, please check your original lighting fixture size first.
1. Measure the fixture space to see if it can hold a T8 tube.
2. If not, you have to replace your lighting fixture to fit for T8 tubes.
Check your fixture pin direction
Find out your pin direction and consult with our sales representative directly.
Installation: Following the steps as the picture shown
Step 1 Remove T8 fluorescent tube
1.1 Turn off the power first, and then remove fluorescent tube from the fixture.
1.2 Identify your ballast type: Inductive or Electronic?
Step 2.1 For Inductive Ballast
2.1.1 Remove the starter
2.1.2 Remove the ballast
Simply remove the ballast or bypassing the ballast
Step 2.2 For Electronic Ballast Bypass the ballast
2.2.1 Remove the ballast
Electronic ballast must be removed or bypassed
Step 3 Install the LED Tube
Application Fields:
1. Home and office lighting
2. Commercial complex lighting
3. School, college and university lighting
4. Hospital lighting
5. Warehouse, factory and church lighting
6. Hotel, restaurant and hall lighting
7. Conference room lighting
8. Market and supermarket lighting
9. Aireport and metro station lighting
10. Parking lot lighting
Cautions:
1. Indoor use only.
2. Do not handle with wet hands.
3. Use only under the rated voltage.
4. Do not use near fire or inflammables.
5. Do not disassemble or renovate at one's option.
Model Number |
XO-T8-2835-24WO |
Cap Type |
G13 |
Wattage |
24W |
Power Factor |
0.95 |
Voltage |
85~265VAC |
Color |
Warm White, Natural White, Cool White |
Color Temperature |
2700~3200K, 4000~4500K, 6000~6500K |
Color Rendering Index |
>70Ra |
Life |
30,000h |
EU Energy Efficiency Rating |
A |
Luminous Flux |
2200~2500lm |
LED Type |
SMD 2835 LED |
LED Quantity |
120 pieces |
Diameter |
26mm |
Length |
1500mm |
CE Approved |
Yes |
EMC Approved |
Yes |
RoHS Compliant |
Yes |
Mercury |
No |
Dimmable |
No |
Usage |
Indoor Use Only |
Guarantee |
2 years |
