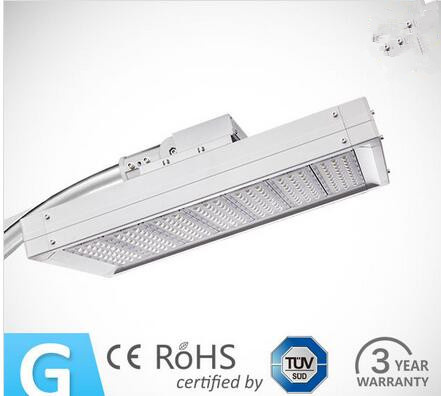

230W High Output LED Street Light
Price: |
US $ 400-500/Piece |
Trade Terms: |
FOB,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
- Light Source: LED
- Item Type: Street Lights
- LED Light Source: Bridgelux, Epistar
- Input Voltage(V): AC: 100-240V
- Lamp Power(W): 230
- Lamp Luminous Flux(lm): 21850
- Lamp Luminous Efficiency(lm/w): 95
- CRI (Ra>): 75
- Color Temperature(CCT): 3000-6500
- Working Temperature(ºC): -40 - +50
- Working Lifetime(Hour): 50000
- Lamp Body Material: Aluminum Alloy
- IP Rating: IP65
- Certification: CE, RoHS
- Warranty(Year): 3
- Place of Origin: Zhejiang, China (Mainland)
- Brand Name: ZKINGWON
- Model Number:
- Maximum Current: AC 2.37A -120V, 1.18A -240V
- LED Driver: Mean Well
- Driver Efficiency: > 90%
- Power Factor (PF): > 0.95
- Operating Humidity: 10% to 90%
- Heat Radiator: Anodized Aluminum
- Lens: PC
- Fixture Dimension: 700 x395 x200 mm /27.6 x15.6 x7.9 inches
- Fixture Weight: 16.5 kg /36.4 lbs
- Aperture Diameter: 60 mm /2.4 inches
- Datasheet
Electrical Specifications |
Nominal Wattage | 230W |
Nominal Voltage | AC 100-240V, 50/60Hz |
Maximum Current | AC 2.37A-120V, 1.18A-240V |
Optimal Operating Temperature | - 40 ºC to 50 ºC |
Operating Humidity | 10% to 90% |
Power Factor (PF) | >0.9 |
Driver Efficiency | >90% |
Photometric Specifications |
Correlated Color Temperature (CCT) | 3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K |
Lumen Output (3000-4500K) | 20700 lm ( +/- 5% ) |
Lumen Output (5000-6500K) | 21850 lm ( +/- 5% ) |
Color Rendering Index (CRI) | Ra≥75 |
Mechanical Specifications |
IP Rating | IP65 |
Lifetime | 50000 hours |
Housing | Anodized Aluminum |
Heat Raditor | Anodized Aluminum |
Lens | PC |
Fixture Dimension | 700 x 395 x 200 mm / 27.6 x 15.6 x 7.9 inches |
Fixture Weight | 16.5 kg / 36.4 lbs |
Aperture Diameter | Φ60 mm / Φ2.4 inches |
Packing Informations |
Packing Type | 1 unit / ctn |
Packing Dimension | 750 x 445 x 220 mm / 29.5 x 17.5 x 8.7 inches |
Packing Weight | 20 kg / 44.1 lbs |
Features
1 | No UV | 12 | Significant energy savings |
2 | Long life | 13 | Wide input: 100 - 240V AC |
3 | Waterproof | 14 | Stable and efficient LED driver |
4 | Instant on/off | 15 | Significantly less generated heat |
5 | Mercury free | 16 | Resistant to shock and vibration |
6 | Maintenance free | 17 | Optimal heat sinking performance |
7 | Improved visibility | 18 | LED's maintain flux up to 100 lm/W |
8 | Ease of installation | 19 | Temperature compensation technology |
9 | Copper free aluminum | 20 | Exclusive appearance design with patents |
10 | Superior optical design | 21 | High quality and brightness LED light source |
11 | More than twice the average life of metal halide and high pressure sodium |
-
Prod Model: |
KW-S49 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Working Temperature: |
30 - 45 |
Working Lifetime: |
50000 |
LED Light Source: |
CREE |
Color: |
Warm White; Cool White; Pure White |
Place Of Origin: |
Guangdong, China (Mainland) |
Chip: |
Bridgelux CREE Samsung Ge Osram |
Accessories: |
Photocell, Smart Control, Dimming Driver, Surge Pr |
Certificate: |
UL Dlc CE RoHS |
Company Type: |
Manufacturer LED Street Lights |
Major Markets: |
North America,South America,Europe |
Power Supply: |
AC |
Color Temperature: |
Pure White |
Lamp Body Material: |
Aluminum |
Power: |
30w |
Application: |
Garden |
IP Rating: |
IP65 |
Certification: |
UL |
Input Voltage: |
110v |
With Light Source: |
With Light Source |
LED Chips Brand: |
Bridgelux |
