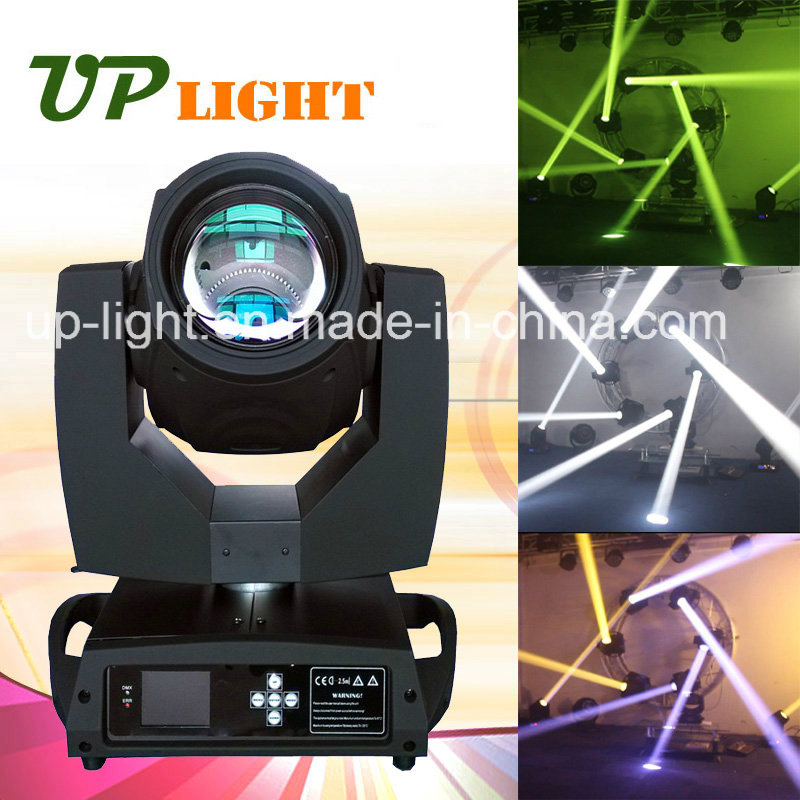

230w 7r beam moving head light
Youtube Beam Demo
https://youtu.be/9ILMNZMzj-Q
https://youtu.be/-UZwem5vDlI
Input voltage: 100-240V, 50/60Hz;
Machine Power: 400W;
Light source: Osram P-VIP 230W 7r;
Color temperature: 8000K;
Average lifetime: 2000 hours;
Color system: One color wheel with 14 color fitters plus white.
Color fitters can be changed;
Gobo system: One fixed Gobo wheel with 17 gobos with shaking function;
Lens: 3pcs PHILIPS lens group
Strobe: Support mechanical strobe & adjustable speed stobe effect;
Prism: 8-faced prism with rotation;
Frost: 0%~100% linear frost;
Beam angle: 0° ~8 °;
Control mode: DMX512 signal control with 3 pin interfaces & LCD display with 16CH;
Ballast : Electronics ballast and AC/DC power supply. Power factor is more than 99%, THD<20%;
Head movement: Horizontal: 540° ; Vertical: 270°, 8bit/16bit precision scanning with auto position correction;
Environment temperature: -15° C ~45° C;
Shell material: Aluminum alloy composites plastic, IP20;
Package size: 523*337*511mm;
Gross weight: 19KG
It is 100% high copy Claypaky.
Channel | Function |
| 16 | 20 |
| CH1 | CH1 | Color wheel |
| CH2 | CH2 | Strobe |
| CH3 | CH3 | Dimmer |
| CH4 | CH4 | Gobo wheel |
| CH5 | CH5 | Prism |
| CH6 | CH6 | Prism rotation |
| CH7 | CH7 | Retain |
| CH8 | CH8 | Frost |
| CH9 | CH9 | Focus |
| CH10 | CH10 | Pan fine |
| CH11 | CH11 | Tilt |
| CH12 | CH12 | Tilt fine |
| CH13 | CH13 | Retain |
| CH14 | CH14 | Reset |
| CH15 | CH15 | Lamp on/off |
| CH16 | CH16 | Pan/tilt speed |
| CH17 | Color wheel speed |
| CH18 | Reset |
| CH19 | Dimmer/prism/frost speed |
| CH20 | Gobo wheel speed |
