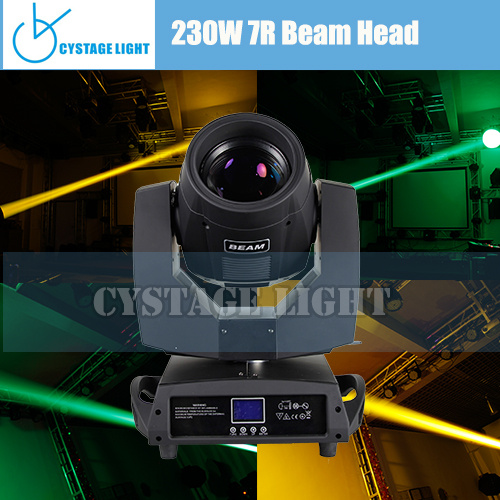

230W Sharpy 7R Beam Moving Head Light
Technical Specifications
-Input Voltage: AC90-240V 50-60Hz
-Lamp: YODN 7R 230W
-Control Signal: DMX 512, Master-slave and sound activated or Stand alone
-Control Channel: 11/12/14 DMX Channels
-Power Consumption: 300W
Features
-16 bit smooth and precise resolution for PAN/TILT movement
-540° Pan and 270° Tilt movement
-Scan position memory, auto reposition after unexpected movement
-Perfectly Parallel, Laser-Like beam, Sharply defined and free of any halo
-Unprecedented brightness-comparable to wattages many times higher
-Interchangeable color wheel with 14 fixed Colors
-Interchangeable Gobo wheel with 17 fixed gobos
-8-facet rotating prism
-Mechanical shutter and adjustable speed strobe effect
-Frost Filter, Electronic Focus, High speed shake effect
-Rapid and extensive pan and Tilt movements
-Small, Lightweight and easily transported
-Eco-Friendly: Replaces far larger and more expensive spotlights
-Control By 4 Modes: DMX 512, Master/Salve, Sound activity and work auto
-Device locking PAN and TILT mechanisms for transportation and maintenance.
-3-pin DMX connectors, Power IN and Power OUT Connecting
PACKING:
-Dimensions: 405X345X475mm
-Carton packing: 490X430X560mm
-Packing Dimensions: 760X480X720mm (2PCS/Flight Case)
-Net Weight: 18kg
-Gross Weight: 65kg(2PCS/Flight case)
1..Lamp Source |
1.YODN 7R Lamp Source
2.Professional Beam Bulb
3.Long Life Span, High to 2000hrs
4.30% Brightness than Philips
5. Central light output, High Color Temperature
6.US$25.00 more than Philips |
1.Philips Projector Lamp Source
2.Used for Projectors, Not suitable for lights which moves fast
3.Short Life Span.
4.Low Brightness
5.Low Color Temperature, Easy to explode |
2.PCB Boards |
1.Self-developing Capability. Strong H&D Team
2.High-end original motor driver chip 8841.
3.Original Signal Insulation Chip to prevent Sudden High pressure Signal Shock.
4.Customized Programs Available |
1.Weak or No R&D Team. Only assembling work.
2.Low-priced Materials utilization
3.No Signal Insulation Chip. Unable to be controlled easily
4.Fixed programs. No Customized programs
5.No Senior Engineer of their own |
3. Power Supply |
1.Self-developed Power Supply. Tailored for the lights
2.Strong Technology Support from Senior Engineer.
3.Imported Materials
4.High Stability |
1.Low quality Power Supply
2.No self-owned Technology for power
3.Made-in-China Materials, The core materials are from China, Cheap Quality |
4,Aging Test |
1.An overall Testing, Flat, Hang-up, Side hang
2.Motivation Testing |
1.No overall testing, only flat
2.No Motivation Testing |
5, Warranty |
1.One Year Warranty
2.Two years warranty for the power supply |
1.One Year Warranty
2.One year warranty for the power supply |
6,R&D Equipment |
1.Top level Testing and developing equipment
2.The equipment is ranking No.2 in the world |
1.Only simple equipment |
7,Material Cost |
US$50-66.00 Higher than others |
|
8,Pricing |
SAME |
SAME |
CYSTAGELIGHT HK LIMITED was a small company who was established in 2001.Due to the interests for lighting products from Jack, the founder, He has the decision to build a factory to make the lights for customers who really need them.
After the foundation, Jack has been keeping research on different lights in different market.Until now, what he has manufactured has won very much population in the market.
CYSTAGELIGHT now has customers from different countries and based on different situation, Jack has adapted his products to every country.
Now CYSTAGELIGHT HK LIMITED has covered most of categories of entertainment industry.Almost all LED Lights and Moving Head Lights applied in stage are covered from our company.
CYSTAGELIGHT HK LIMITED is Either a lighting manufacturer or an entertainers as you.We know the frustration of working with lights that are hard to program, tempermental, and just plain way too expensive.If you've been looking for lights for your DJ business, band, production company, club, or wherever, we think you'll find CYSTAGELIGHT'S products right up your alley!
