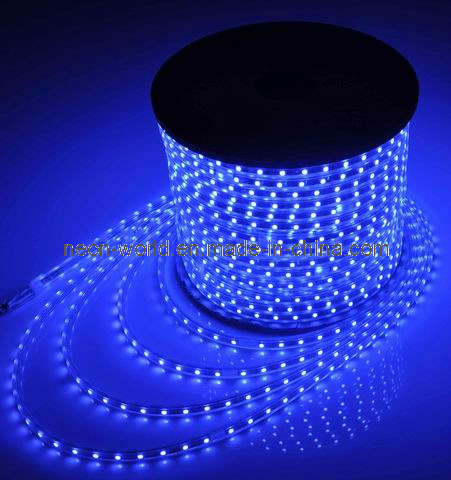

High volt. Single-line 3528 SMD LED flex strip lights are the series of 3528 SMD LEDs fixed on thin FPC board, coated with epoxy resin and protected by transparent PVC extrusion.
They are designed to work under high voltage from DC220V, 230V or 240V without using transformers but rectifiers when connecting to the electricity of AC220V to AC240V. Despite high volt., they can save energy as DC12V/24V 3528 flex strips do compared with regular lights.
High volt. 3528 SMD LED flex strips give users choices in emittng color such as red, green, yellow, white and warm white. Sweet, fragrant lighting as they emit, they make places around much bright or comfortable.
Features:
1. Light source: 3528 SMD LED (SMD: Surface Mounted Devices )
Light Qty: 60 LEDs / m
FPC: Yellow or white
2. Electrical attributes:
Wattage: 4.8 W/m Input volt.: DC 220V, 230V, 240V
Current: 0.02 A / LED
3. Optical attributes:
(1) Color Temperature/ Wave:
620 -625 nm ( red)
590 - 592 nm (yellow)
462.5- 465 nm (blue)
520 -522.5 nm (green)
6000 - 6500 K (white)
2850 - 3150 K ( warm white)
(2) Lumen:
90 lm/m ( red and yellow)
60 lm/m (blue)
240 lm/m (green)
300 lm/m (white)
240 lm/m (warm white)
(3) Beam angle: 120 degree
4. Circuit designed for cutting:
It can be cut at a unit of 1 m.
5. Accessories:
2 rectifiers, 6 heat shrinkable tubes, 2 end caps, 2 power connectors, 2 splicing connectors.
Here an aluminum mount clip is supposed to be bought for fixing the strip.
6. Packing: 100m/ roll. One roll is packed into a carton.
Advantages:
1. Waterproof, suitalbe for indoor and outdoor use.
2. The strip itself is safe to use, insulated with PVC extrusion.
3. Economical, convient without using transformers.
4. Flexible, shapeable, easily installed.
5. Long lifespan over50000hr.
Safety Notice:
1. It needs a rectifier to transfer the alternating current into direct current. So, it isn't allowed to connect with AC electricity directly.
2. Don't steep in the water for a long time.
3. Pay attention to the symbol for cutting.
4. Remember to cut off the electricity when cutting, connecting or installing the strip.
Neon-World Illumination Technology Co., Ltd is a leading Chinese lighting company located in Huizhou, Guangdong Province, China. We are specialized in manufacturing LED Decorative Lights series, like LED rope light, LED string light, LED net light, Flexible LED strip, LED module, LED tree light, Christmas light, etc.
We keep on technology innovation and strict quality system, and adhere to principles of business ethics, integrity, honesty and trust-worth. So we always offer our customers best quality products at most competitive prices. Our products export to Southeast Asia, UK, France, Italy, Portugal, Australia, Canada, New Zealand, and so on. Hoping you will also have interest in them. And most of our products have passed ISO, CE, GE certifications.
