230mm LED down light Chinese manufacturing supply
Sourcechip 230mm LED down light Tel: +86-769-81608082
Sourcechip 230mm LED down light website: http://www.sc-ledlights.com/pro_show_2_12_25.html
Sourcechip 230mm LED down light Address: No. 2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China
Dongguan Sourcechip Opto-electrical Tech Co., Ltd.
Xnlonglong01

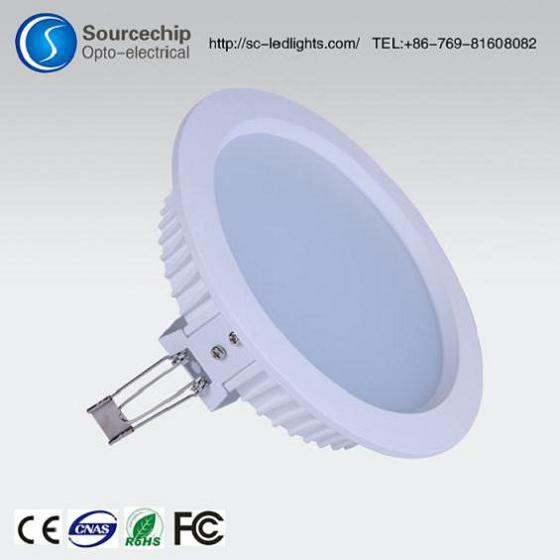

Dongguan Sourcechip Opto-electrical Tech Co., Ltd. In production and development of LED lighting industry has experienced 12 years of UPS and downs. After years of training, our LED lighting production technology has been greatly improved. This 230mm LED down light is one of our flagship product. This 230mm LED down light simple and elegant appearance, good heat dissipation, energy saving, bright and evenly. The following section property parameters of the 230mm LED down light. You can also enter our website to understand the 230mm LED down light or contact us by e-mail.
Lamp body: Aluminium alloy
Diffusive lampshade: Light transmittance≥ 85%
Light source: SMD 5630
Driver: Wide Input driver, EMC approved
Finish: White / Silver
LED Model No.: SC-DLA030W01-30/40/65
Rated power: 26W
Consume power: 30± 2W
Input Voltage: AC 100-240V
Efficiency: ≥ 80%
Cutout: φ 200
P. F: ≥ 0.9
Light Source Luminous flux(lm): 2550± 250 Lm/2450± 250 Lm/2400± 250 Lm
Lighting CCT: 6000k± 500k/ 4000k± 300k/ 3000k± 200k
Lighting View Angle: 120°
Lighting CRI: ≥ 80
Working Temp.: -10~40 / R. H. ≤ 85%
Storage Temp.: -30~65
Life span: 25, 000 HR
IP Rate: IP20
Sourcechip Opto-electrical Tech Co., Ltd took the lead in passing the ISO9000 certification in 2007 successfully. R&D had already imported ISO/TS16949 automobile quality management standard andits five core managing tools including APQP and FMEA etc. We are striving to get high level quality guarantees the whole process form the previous planning to formation. In the meantime, we formulatedscientific and professional experimental center and high-quality quality control (QC) team so as to systematically ensure superb quality from a strategic height.
