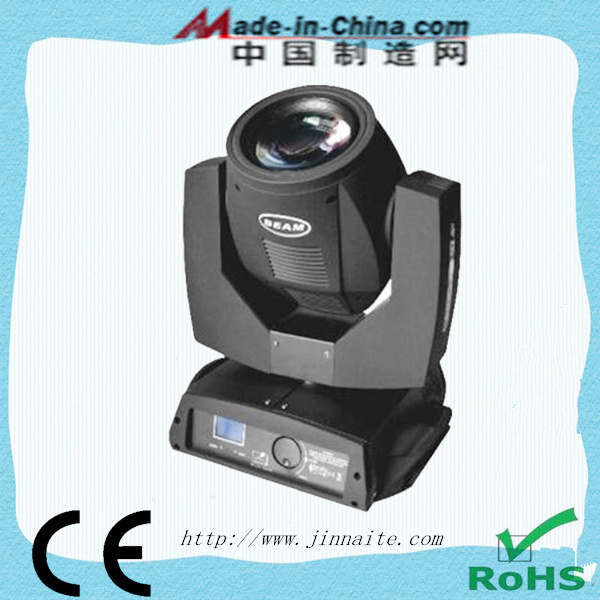

7r Sharpy Effect Beam 230 Moving Head Stage Light
Input voltage: 100-240V, 50/60Hz;
Machine Power: 350W;
Light source: Osram P-VIP 230W;
Color temperature: 8000K;
Average lifetime: 2000 hours;
Color system: One color wheel with 14 different inner color fitters plus white.
Color fitters can be changed;
Gobo system: One fixed Gobo wheel with 17different inner gobos with shaking function;
Lens: 3pcs PHILIPS lens group with electronics zooming 0~3.8 degree
Strobe: Support mechanical strobe & adjustable speed stobe effect;
Prism: 8/16/24-faced prism with rotation;
Frost: 0%~100% linear frost;
Beam angle: 0° ~8 °;
Control mode: DMX512 signal control with 3 pin interfaces & LCD display with 16CH;
Ballast : Electronics ballast and AC/DC power supply. Power factor is more than 99%, THD<20%;
Head movement: Horizontal: 540°, 8bit/16bit precision scanning with auto position correction; Vertical: 270°, 8bit/16bit precision scanning with auto position correction;
Environment temperature: -15° C ~45° C;
Shell material: Aluminum alloy composites plastic, IP20;
Package size: 523*337*511mm;
Gross weight: 19KG
Applicaiton: UP-B200M moving head light is a best choice for stage lighting of TV Studio, theater, opera house,
auditorium, fashion T stage, vocal concert, club, disco at present with good quality light and small size.
It is brighter than beam 300. It is 100% high copy Claypaky.
Production
Channel | Function |
16 | 20 |
CH1 | CH1 | Color wheel |
CH2 | CH2 | Strobe |
CH3 | CH3 | Dimmer |
CH4 | CH4 | Gobo wheel |
CH5 | CH5 | Prism |
CH6 | CH6 | Prism rotation |
CH7 | CH7 | Retain |
CH8 | CH8 | Frost |
CH9 | CH9 | Focus |
CH10 | CH10 | Pan fine |
CH11 | CH11 | Tilt |
CH12 | CH12 | Tilt fine |
CH13 | CH13 | Retain |
CH14 | CH14 | Reset |
CH15 | CH15 | Lamp on/off |
CH16 | CH16 | Pan/tilt speed |
| CH17 | Color wheel speed |
| CH18 | Reset |
| CH19 | Dimmer/prism/frost speed |
| CH20 | Gobo wheel speed |
