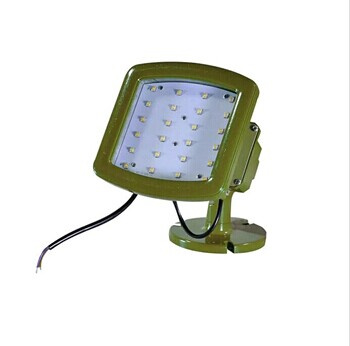

20W Explosion-Proof LED Miner Light
| Price: |
US $ 98/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
LED Light Source: USA Bridgelux
Input Voltage(V): 100-277V
Lamp Power(W): 20w/30w/40w
CRI (Ra>): 70
Color Temperature(CCT): Warm White
Working Temperature: -40 - 50
Working Lifetime(Hour): 100000
Lamp Body Material: Aluminum
IP Rating: IP68
Certification: CE,ETL,ROHS,UL
Warranty(Year): 5 years
Place of Origin: China (Mainland)
Brand Name: royoled
Driver: MW Driver .
Model No:
|
RY-J40
|
RY-J40
|
RY-J40
|
RY-J60
|
RY-J80
|
RY-J100
|
RY-J120
|
RY-J150
|
RY-J200
|
Total power:
|
20W
|
30W
|
40W
|
60W
|
80W
|
100W
|
120W
|
150W
|
185W
|
Lumens
|
1, 800
|
2, 700
|
3, 750
|
5, 580
|
6, 800
|
9, 300
|
10, 800
|
13, 500
|
16650
|
Drive Current
|
300 mA
|
350 mA
|
350 mA
|
300 mA
|
300 mA
|
350 mA
|
300 mA
|
350 mA
|
350 mA
|
# oF LEDS
|
24
|
24
|
36
|
60
|
60
|
80
|
96
|
144
|
156
|
System efficacy
|
90LM/W
|
90LM/W
|
93LM/W
|
93LM/W
|
90LM/W
|
90LM/W
|
90LM/W
|
93LM/W
|
93LM/W
|
Dimensions
|
LENGTH: 200mm
WIDTH: 200mm
HEIGHT: 270mm
WEIGHT: 4 KG
|
LENGTH: 300mm
WIDTH: 300mm
HEIGHT: 175mm
WEIGHT: 7.5 KG
|
LENGTH: 400mm
WIDTH: 400mm
HEIGHT: 185mm
WEIGHT: 12.5KG
|
Description
|
Replacing
70w HPS
|
Replacing
100 HPS
|
Replacing 100-150w HPS
|
Replacing 150-200w HPS
|
Replacing 250-300w HPS
|
Replacing 250-300w HPS
|
Replacing 400-500w HPS
|
Replacing 400-700w HPS
|
Replacing 400-700w HPS
|
Appearance description
|
Material: Die Cast Aluminum
Light Color option: Cool White
Warm White
Custom color
LENS: Super Clear Tempered Glass
|
LED light engine description
|
High quality Bridgelux 700Ma 45Mil
Efficacy: up to 150lm @ 350mA (per watt)
Rated Life of 100, 000+ hrs
Operation temp: -30 oC to +50 oC
No toxic chemicals/Rohs compliant
70%-80% saving compare to HPS/MH
|
Electrical characteristics
|
Wide AC input: 90-305 VAC
(UL marking: 100-240VAC/277VAC)
Power Factor: ~0.98
Total Harmonic Distortion: < 10%
Surge protection: IEC/EN 61000-4-5
EMC test standard
|
Product installation
|
Easy installation – plug and play
Wall mount/Celing mount bracket
Adjustable Angle
|
Product qualification
|
5 years warranty
Highest Ingress Protection rating: IP68
UL certify: ANSI/UL
|
| Prod Model: |
RY-J40-D-H20W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
200*200*270mm |
| Certification: |
UL |
| Color Temperature: |
Warm White |
| IP Rating: |
IP68 |
| Lamp Body Material: |
Aluminum |
| Power Supply: |
AC |
| Application: |
Garden |
