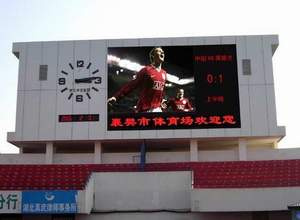

20mm Outdoor Full Color LED Display
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Model: F-O-P20
Name: P20 outdoor full color LED display
Pixel Pitch: 20mm
Pixel density: 2,500dots/m²
Brightness:7000 nits
LED type: DIP346
Power consumption: max 800W| Technological Parameters: | | | |
| Model | F10 | F12 | F16 | F20 |
| Product name | Outdoor full color LED display |
| Pixel pitch | 10mm | 12mm | 16mm | 20mm |
| Size of module | 160*160 | 192*192 | 256*256 | 320*320 |
| Size of standard cabinet | 960 (L) x 960(H) mm | 768(L) x 768(H) mm | 1280 (L) x 960(H) mm | 1280 (L) x 960(H) mm |
| Pixel density | 10,000 dots/m² | 6,944 dots/m² | 3,906 dots/m² | 2,500dots/m² |
| Resolution of module | 16*16 | 16*16 | 16*16 | 16*8 |
| Brightness | ≥7500CD / m² | ≥7000CD / m² | ≥8000CD / m² | ≥7000CD / m² |
| LED configuration | 1R1PG1PB | 1R1G1B | 2R1PG1PB | 2R1G1B |
| LED Encapsulation (LED type) | DIP346 | DIP346 | DIP546 | DIP346 |
| Horizontal view angle | ≥ 110° | ≥ 110° | ≥ 110° | ≥ 110° |
| Vertical view angle | ≥ 50° | ≥ 50° | ≥ 50° | ≥ 50° |
| Optimal view distance | 8-75M | 8-100M | 15-140M | 20-160M |
| MTBF | ≥10,000 hours | ≥10,000 hours | ≥10,000 hours | ≥10,000 hours |
| Lifespan | 75,000 ~100,000 hours | 75,000 ~100,000 hours | 75,000 ~100,000 hours | 75,000 ~100,000 hours |
| Refresh rate | ≥400HZ | ≥400HZ | ≥400HZ | ≥400HZ |
| Driving mode | Constant current driving ,static latch |
| Signal Interface | DVI |
| Input signal | RF,RGB,RGBHV, HDTV, SDI, HD-SDI, S-video, composite,DVI,etc |
| Failed LED rate | <0.0001 | <0.0001 | <0.0001 | <0.0001 |
| Power supply | 110 / 220 V AC , 50/60 Hz |
| Average power consumption | 600 Watts /m2 | 500 Watts /m2 | 400 Watts /m2 | 300 Watts /m2 |
| Max. power consumption | 1000 Watts /m2 | 700 Watts /m2 | 900 Watts /m2 | 800 Watts /m2 |
| Cabinet Material | Aluminum &steel optional |
| IP rating |
IP65 Waterproof & dustproof |
| Operation temperature | Minus 20ºC~60ºC | Minus 20ºC~60ºC | Minus 20ºC~60ºC | Minus 20ºC~60ºC |
| Storage temperature | Minus 40ºC~85ºC | Minus 40ºC~85ºC | Minus 40ºC~85ºC | Minus 40ºC~85ºC |
| Operation humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Storage humidity | 30%~60%RH | 30%~60%RH | 30%~60%RH | 30%~60%RH |
| Prod Model: |
Outdoor LED display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
