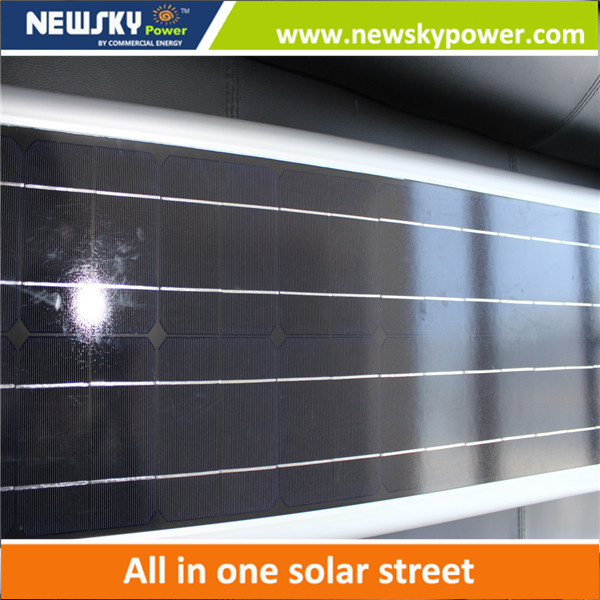

2016 New desing solar power led street light
8W 12W 15W 20W 25W 30W 40W 50W 60W
Features:
1,Easy installation. No cable needed
2,Lithum-ion LiFePO4
3,High efficiency Mono solar panel
4,Famous brand LED chip from EPISTAR and Bridgelux
5,Mounted convenient, pole, wall, tree etc
6,Light output can be adjusted automatically by a built-in infrared sensor
7,Modularity design. Easy assemble and maintenance
8,Compact volume and light weight design saves freight cost and installation cost
9,Rust-proof, dustproof and IP65 waterproof Safety and reliability
Specification:
Model | NSP08 (with sensor) | NSP12 (with sensor) | NSP15 (with sensor) |
LED Light | Max power | 12V 8W | 12V 12W | 12V 15W |
Led chip | EPISTAR, Taiwan |
Lumen (LM) | 800-880Lm | 1200-1320Lm | 1500-1650Lm |
Life time | 50,000hours |
Solar panel | Max power | 18V/15W | 18V/18W | 18V/25W |
Solar cell | High efficiency, Mono |
Life time | 25years |
Battery | Capacity | 6AH | 6AH | 10AH |
Type | Lithum-ion LiFePO4 |
Life time | 5 years |
Charging | By sun | 6-10 hours effective sunlight |
Lighting | Dimming power | >24 hours |
Work temp | Range(ºC) | Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC |
Colour temp | Range(k) | 6000-6500k |
Height | Range (m) | 3-4m | 3-4m | 4-5m |
Spacing | Range (m) | 8-10m | 8-10m | 10-15m |
Work mode | Customized available | Light on at dusk, light off at dawn auto. PIR motion sensor detection. Full power lighting when a human move in the sensors range. 30% power lighting when a human move out. |
Material | Aluminium alloy |
Certificate | CE / ROHS / IP65 |
Warranty | 3years |
Packing & Weight | Product size(mm) | 504*325*85 | 746*325*135 |
Product weight | 6.5kg | 6.5kg | 8.2 kg |
Carton size(mm) | 560*390*150 | 560*390*150 | 815*390*210 |
GW .for carton | 7kg | 7kg | 9.3 kg |
Container Load | 20GP | 915sets | 915sets | 462sets |
40HQ | 2193sets | 2193sets | 1118sets |
Model | NSP20 (with sensor) | NSP25 (with sensor) | NSP30 (with sensor) | NSP40 (with sensor) |
LED Light | Max power | 12V 20W | 12V 25W | 12V 30W | 12V 40W |
Led chip | Bridgelux , USA |
Lumen (LM) | 2400-2600Lm | 3000-3250Lm | 3600-3900Lm | 4800-5200Lm |
Life time | 50,000hours |
Solar panel | Max power | 18V/45W | 18V/50W | 18V/60W | 18V/60W |
Solar cell | High efficiency, Mono |
Life time | 25years |
Battery | Capacity | 18AH | 21AH | 21AH | 24AH |
Type | Lithum-ion LiFePO4 |
Life time | 5 years |
Charging | By sun | 6-10 hours effective sunlight |
Lighting | Dimming power | >20hours |
Work temp | Range(ºC) | Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC |
Colour temp | Range(k) | 6000-6500k |
Height | Range (m) | 5-6m | 5-6m | 6-7m | 6-7m |
Spacing | Range (m) | 18-20m | 18-20m | 20-25m | 20-25m |
Work mode | Customized available | Light on at dusk, light off at dawn auto. PIR motion sensor detection. Full power lighting when a human move in the sensors range. 30% power lighting when a human move out. |
Material | Aluminium alloy |
Certificate | CE / ROHS / IP65 |
Warranty | 3years |
Packing& Weight | Product size(mm) | 1130*330*130 |
Product weight | 17.8kg | 18.3kg | 18.7kg | 19kg |
Carton size(mm) | 1190*390*220 |
GW .for carton | 18kg | 19kg | 19kg | 20kg |
Container load | 20GP | 230sets | 230sets | 230sets | 230sets |
40HQ | 600sets | 600sets | 600sets | 600sets |
Model | NSP50 (no sensor) | NSP60 (no sensor) |
LED Light | Max power | 12V 50W | 12V 60W |
Led chip | Bridgelux , USA |
Lumen (LM) | 6000Lm | 7200Lm |
Life time | 50,000hours |
Solar panel | Max power | 18V/80W | 18V/90W |
Solar cell | High efficiency, Mono |
Life time | 25years |
Battery | Capacity | 39AH | 42AH |
Type | Lithum-ion LiFePO4 |
Life time | 5 years |
Charging | By sun | 6-10 hours effective sunlight |
Lighting | discharge | >12hours | >12hours |
Work temp | Range(ºC) | Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC |
Colour temp | Range(k) | 6000-6500k |
Height | Range (m) | 8-9m | 8-9m |
Spacing | Range (m) | 25-30m | 25-30m |
Work mode | Customized available | Time control, Full power +dimming | Time control, Full power +dimming |
Material | Aluminium alloy |
Certificate | CE / ROHS / IP65 |
Warranty | 3years |
Packing & Weight | Product size(mm) | 1080*450*153 | 1080*450*153 |
Product weight | 24kg | 26 kg |
Carton size(mm) | 1190*520*220 | 1190*520*220 |
GW .for carton | 24.5kg | 26.5kg |
Packs Containers | 20GP | 231sets | 231sets |
40HQ | 516sets | 516sets |
FAQ:
1,Could you provide pole?
Normally, we don't supply pole.
Most of our clients purchase pole from local, it will be cheaper if without shipping cost.
The top diameter of pole as below:
NSP8W,NSP12W,NSP15W: diameter 40-100mm
NSP20W,NSP25W,NSP30W,NSP40W,NSP50W,NSP60W: diameter 80-110mm
2,Does it work on foreland?
Yes, it is suitable for marine. The shell material is Aluminium alloy , the inside components has anti-corrosion treatment. The waterproof is IP65.
3,How long it can work in ?
it can work continuously in 3-4 rainy days.
4,Could the angle of the light be changed?
The angle between light and pole is fixed, can not be changed, it is optimized angle.
NSP8W-NSP15W: 95°
NSP20W-NSP60W: 105°
5, What is the distance between light and human?
The detection distance between LED light and human is 10-12 meters.
