Lumin® Budget series LED panel light features classic step pattern design. It is made from aviation aluminum,which helps a lot with heat dissipation. The frame is extremely solid by using stamping technique while assembled. silver and white frame are optional as you wish by using surface treatment technique. PANTONE is personalized.
There are three ways of LED panel light installation: recessed,suspended,and mounted. Besides, Dimming solutions such as 0-10V LED panel light, Dali LED panel light, Traic LED panel light, RGB LED panel, and WIFI controlled CCT & Brightness adjustable light panel are available.
LED light panel is widely used in the bar, coffee house, shopping mall, hotel, restaurant, office, showroom, counter, school,kitchen, hospital, etc.
Lumin Lighting is a professional LED panel light supplier and manufacturer in China. We focus on LED lighting solutions to the ceiling lighting systems. Welcome you to inquire our LED panels.
Specification- Model No.: LM-PL-66-40
- Power consumption: 40 W
- Dimension: 595x595x 9 MM
- Input voltage: AC 90-265 V
- Output voltage: DC 36-42 V
- Color temperature: 2700-3000 K ; 4500-5000 K; 6000-6500 K
- Constant current: 1050 mA
- Lumen output: > 4000 LM
- CRI: Ra>90 , Ra>80
- Power factor: PF>0.9
- Anti-electric shock rate: ClassII
- Temperature rising: <35 degree
- Protection class: IP44 / IP54 / IP65
-
- Key Material and Components
-
- Frame: Pure aluminum 6063
- LGP: PMMA from Japan's Mitsubish, Taiwan's Chimei (silk printed light netspot)
- Diffuser: PC / PS
- LED Light Source: LEDs 2835 /4014 LM-80 (gold wire inside the packaging, 3-5 year warranty)
- LED Driver: PHILIPS / LIFUD / MEANWELL / XPOWER (3-5 year warranty)
- PCB: 1.2mm thick Aluminium (heatsink ratio >1.2)
-
Feature1. High efficacy: over 100 LM / W, real energy saving 80 % comparing to CFL fixture2. High CRI: Ra>903. Pefect Replacement: 72W 600x600 mm CFL tube fixture 4. Long Lifespan: 5, 0000 hours.5. Easy to Install: Male-female driver connector6. Appearance Design: 9.8mm, Neat, Classic 7. Super surface treatment: baked white frame8. Light Weight: only 3.2 kg / pieces, save your international freight cost by 30%
9. Compatible: Lighting fixture can work with different BRAND driver
10. Dimmable solutions: 1-10V, DALI, Triac , WIFI, Zigbee
11. CCT Adjustable and dimmable Why Using Lumin LED panel ?

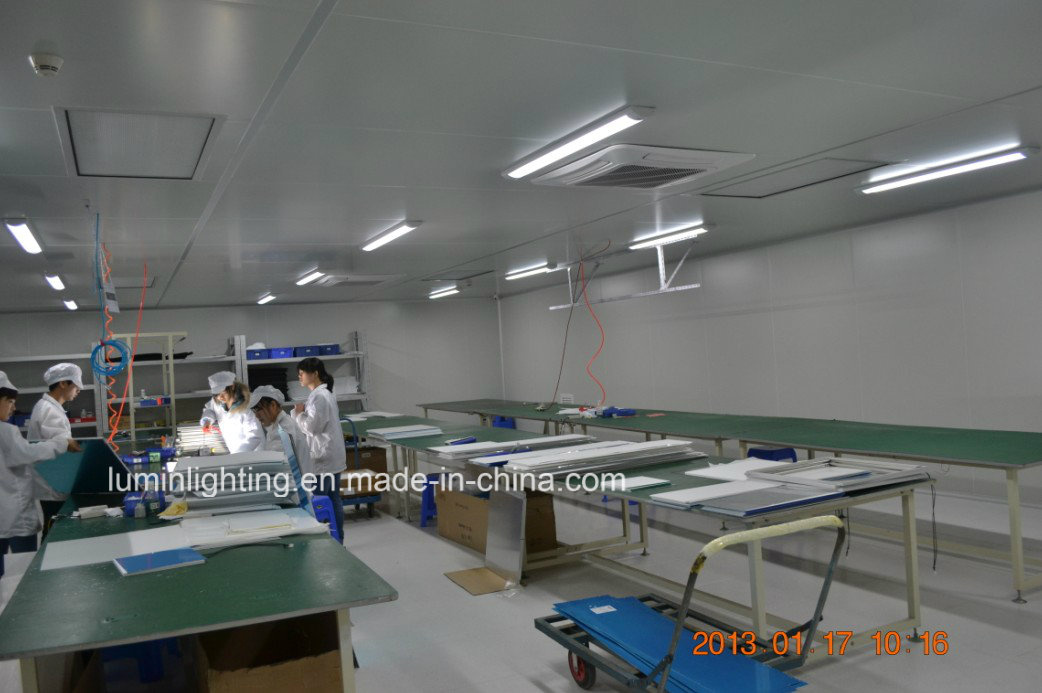

1. Experienced history: 5 years' research and development in LED panel, with strict ISO 9000 quality control system, as well as cleanest workshop and test instruments.
2. Care about details: details are important for our products , appearance design, electric design, packaging, as well as services, etc.
3. Only using best LED driver: Best Philips LED driver with 5 year warranty, Meanwell LED driver and Lifud LED driver with 3 year warranty
4. Only using best LEDs: Samsung, Epistar, Soul chip
5. Best Services: Fast reply to your inquiries alway. IES lighting simulation by Dialux can be provided free of charge if requested
6. Better Solutions: Our LED panel can be compatible with Tridonic LED driver, Meanwell LED driver, and Lifud LED driver. You are allowed to buy fixture only without led driver, you can buy LED driver at your local market by youself !
7. OEM & ODM services: Customized, acceptable and welcome
8. Strong Design Team: Irregular size, IP65 Protection, Frameless design, Curve design
Applications
The LED panel is suitable for office building, hospical, hotel, department store, home, etc.
About Lumin
Based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin Lighting was founed on November 17, 2008. Since its founding, Lumin Lighting is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government policy of energy-saving, emission reduction, and maintainable development.
Lumin Lighting product lines mainly include LED panel, LED tube light, LED downlight, LED bulbs, and outdoor lights. Meantime, Lumin Lighting also provides customized lighting solutions to customers.
Lumin Lighting takes product quality as our lifeline. We focus on quality control during the whole production process by seriously carrying out ISO 9001 Quality System and ISO Environment Management System.
Lumin Lighting has an excellent research and development team. New products are launched and old ones are refined every year.
Lumin Lighting would like to work with anyone who loves the earth and environment protection all over the world.
Core Value
Devotion, Action, Sustainability, Responsibility
Business Philosophy
Lumin Lighting is devoted himself to providing quality LED lights and services to families, institutions and communities through continuous innovation. We always believe that "the customer is always right".
We Care your Quality of Light and Your Name in Your Market !
Note: For more details , please visit our Official site: www.lumin-lighting.com
| Model No. | LM-PL-66-36 | LM-PL-66-40 | LM-PL-66-48 | LM-PL-66-60 |
|
Item |
|
|
Optical | Light Source | 180 LEDs 4014 | 200 LEDs 4014 | 240 LEDs 4014 | 300 LEDs 4014 |
Color Temperature | 2700K / 3000K / 4000K / 5000K / 6000K |
Luminous Flux | 3600 LM | 4000 LM | 4800 LM | 6000 LM |
Color Render Index | Ra >80 / Ra>90 |
Beam Angle | 120° |
Optical Decay Rate | Less than 3% in 5000 Hours |
Service Life | > 50000 Hours |
Electric | Input Voltage | AC 90 ~ 265 V |
Frequency | 50 ~ 60 Hz |
Output Voltage | 30-42V | 30-42V | 30-45 | 30-45 |
Constant Current | 0.9A | 1.05A | 1.2A | 1.5A |
Power Consumption | 36W | 40W | 48W | 60W |
Power Factor | PF>0.95 |
Starting Time | ≤1.2 S (@ 110Vac) |
Withstand Voltage | 3000Vac/1Min |
Structure | Materials | Aluminum, PMMA LGP, PC diffuser |
Temperature Rising | <20 ºC |
Dimensions | 595 x 595 x 9 MM |
Net Weight | 3.2 Kg / piece |
Protection class (IP) | IP40 /IP65 |
Others | Working Temperature/Humidity | -25ºC ~ 50ºC; 0% ~ 100% R.H. |
Storage Temperature/Humidity | -40ºC ~ 70ºC; 0% ~ 100% R.H. |
Certificate | CE, CB, SAA approved by TUV, UL / DLC |
Environmental Protection | RoHS |
1. Lumin Profile
Based in Shenzhen, Lumin Lighting is a fast-growing semiconductor lighting manufacturer and supplier in China. Lumin Lighting was founed on November 17, 2008. Since its founding, Lumin Lighting is committed to developing, manufacturing, and popularizing LED lighting products, responding to the government policy of energy-saving, emission reduction, and maintainable development. Nowadays, Lumin Lighting has already been successful in providing quality LED lighting products and green lighting solutions to thousands of families, institutions, and communities worldwide.
Lumin Lighting product lines mainly include LED panel light, LED tube light, LED downlight, LED bulbs, LED strip, and LED street light, LED flood light, LED garden light, and LED underground light. Meantime, Lumin Lighting also provides customized lighting solutions to customers.
Lumin Lighting takes product quality as our lifeline. We focus on quality control during the whole production process by seriously carrying out ISO 9001 Quality System and ISO Environment Management System. At the same time, we emphasize training of skills and capabilities of our workers and staff to improve production management. The products manufactured have already been awarded with certificates of CE, RoHS, and UL by authoritative organizations. With good quaity control, our products are well received by customers throughout the world.
Lumin Lighting has an excellent research and development team. New products are launched and old ones are refined every year. At present, Lumin has been recognized as a leading LED lighting brand in the global market. Our products have been exported to over 30 countries and regions in the world such as Spain, France, Italy, Japan, and India, establishing close business relaton with local distributors, lighting consultants, building contractors as well as end users.
Facing severe global warming and energy crisis, Lumin Lighting would like to work with anyone who loves the earth and environment protection in order to make a better place for the human being, by utilizing and popularizing our green LED lighting products.
2. Core Value
Devotion, Action, Sustainability, Responsibility
3. Business Philosophy
Lumin Lighting is devoted himself to providing quality LED lights and services to families, institutions and communities through continuous innovation. We always believe that "the customer is always right". The customer complaint is always fast responded as long as any feedback comes. And we always believe that "win-win strategy" can help us keep long-term business relationship with customers
