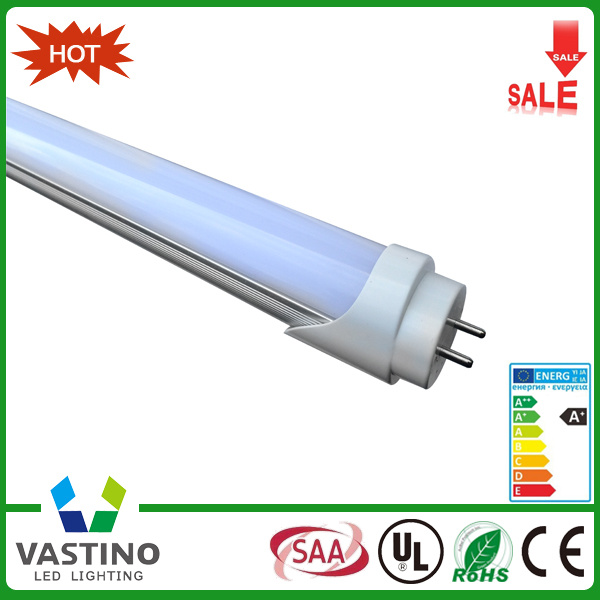

2015 T8,LED Fluorescent Light,LED Light,LED Lamp,LED Tube Light
Product information:
1.Rated Watt:9W/14W/18W/22W
2.Input Volt:AC100-240V 50-60Hz
3.Lumen:80LM/W;100LM/W;110-120LM/W
4.Warranty:2 years/3 years/5 years
5.Size:D26*L600/L900/L1200/1600mm
6.Life Time: 3,0000hrs/50, 000 hours
7.Light Source: SMD2835 Ra70;Ra80,PF>0.9
8.Replacement:traditional fluorescent lamp
9.Safety Cert.: CE & RoHS UL CUL SAA TUV
10.Solution: Built-in LED Driver (Mains isolated driver)
Features:
1,Adopt super brightness smd2835 light source,26-28lm/pcs; Luminous Efficacy of Milky white cover can up to 105LM/W;
2,High energy saving efficiency, 90% of energy saving than incandescent lamp,60% than fluorescent lamp;.
3,Special encapsulation on led chip,durable and long lifespan 50000hrs;
4,No IR&UV,no thermal radiation and mercury pollution,green and environmental protection;
5,As it is cold light source,Led lights will not make the goods color fading;
6,Used high quality cover,soft light, high light transmittance, to realize Comprehensive lighting effect;
7,High color rendering index, most intuitive and clear, different Color temperature can be chosed;
8,Quick start and fast to output full brightness, no stroboflash,no glare;
9,Solid light source, with high impact and strong shock-proof,easy installation and safety transportation;
10.Innovative model and humanized design,cater to more customer demand;
LED Tube light Application:
1. Illumination lighting for homes, offices, restaurants, hotels, malls, buses, trains, warehouses, parking lots etc.
2. Task lighting for cabinets, cupboards etc in your homes, restaurants, and kitchens or any other places where accent lighting is required.
3. Dispplay lighting for the articles in your stores and shops.
4. Back lighting for square billboards or advertisement boards.
1. Product Parameter
2. Basic Parameter
Item NO.
Light source
power supply mode
Dimension(mm)
Main Material
IP Grade
Lamp Socket
YST8-0906D-002
SMD2835
Single- ended/Double-end
D26*L600
Al+PC
IP20
G13
YST8-1409D-002
Single- ended/Double-end
D26*L900
Al+PC
YST8-1812D-002
Single- ended/Double-end
D26*L1200
Al+PC
YST8-2415D-002
Single- ended/Double-end
D26*L1500
Al+PC
3. Electrical Parameter
Item No.
Rated Power(W)
Input Voltage(V)
Transfer efficiency (%)
Power Factor
YST8-0906D-002
9W
AC100-240V
≥85%
>0.9
YST8-1409D-002
14W
≥88%
YST8-1812D-002
18W
≥88%
YST8-2415D-002
24W
≥85%
4. Optical Parameter
Item No.
Color Temperature(K)
Luminous Flux(lm)
Beam Angle(degree)
CRI
YST8-0906D-002
6000-6500
4000-4500
2800-3200
850
>120
>75
YST8-1409D-002
1330
YST8-1812D-002
1700
YST8-2415D-002
2280
Storage and Operational Environment
Storage Temperature
-20ºC~+65ºC
Operation Temperature
-20ºC~+45ºC(<25ºC Working Best )
Ambient humidity
40-90%RH
Lifespan and Warranty
Lifespan
30,000hrs( Light Decay <30%)
Warranty
3 years
Packing Information
Item No.
Packing material
Inner box size(mm)
Carton size
(mm)
QTY/Carton
(PCS)
Gross Weight/pcs
(KG)
G.W
/CTN
(KG)
YST8-0906D-002
Inner box
:Hard paper tube;
Carton:K=K
D38*L640mm
L660*W250*H220mm
20
0.40±5%
≈13
YST8-1409D-002
D38*L940mm
L960*W250*H220mm
20
0.43±5%
≈12
YST8-1812D-002
D38*L1240mm
L1260*W250*H220mm
20
0.60±5%
≈13
YST8-2415D-002
D38*L1540mm
L1560*W250*H220mm
20
0.72±5%
≈16
FAQ
Q1: Are you factory or trading company?
A: We are a factory, we can provide ODM & OEM services.
Q2: What is your color temperature?
A: Different color temperature are available for you. Generally, Warm white, natural white and cool white are very popular.
Q3: Can your led bulbs be used in our country?
A: Yes, Our led Tube has wide input voltage AC85-265V,
Customerized led drivers are also available!
Q4: What is your warranty ?
A: According to your requirements for led lights. Generally, we offer two, three and five years guarantee.
Q5: What is your MOQ?
A: Our MOQ is 1PC for customer.
Q6: What is your lead time?
A: Sample: 5 working days. Mass order: 7-15 days depend on the order quantity.
Q7: How do you help me to save freight cost?
A: We have several cooperated forwarder, confirm the freight each one, and offer you the most suitable one for you.
Q8: What is your payment terms?
A: Bank transfer, T/T are available for your choosing.
Q9:How do you ship the goods and how long does it take?
A: The samples will be shipped by DHL, UPS, FEDEX, TNT, EMS. It usually takes 3-5 days to arrive. By air, by sea are also acceptable.
Q10: What is your company return policy?
A: Refund or exchange is promised for defects not damaged by users. You can take photos or video to us for approval first,hen give you a new one during next order
