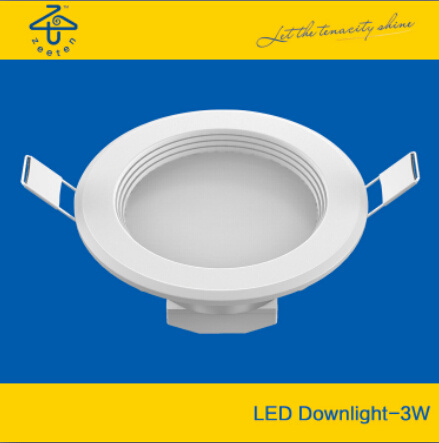

| LED Down Light |
| Model No. | ZT-TDC03WB | ZT-TDC05WB | ZT-TDC07WB | ZT-TDC09WB | ZT-TDC12WB | ZT-TDC15WB | ZT-TDC18WB | ZT-TDC24WB | ZT-TDC36WB |
| Rated Power | 3W | 5W | 7W | 9W | 12W | 15W | 18W | 24W | 36W |
| Luminous Flux | 300lm | 500lm | 700lm | 900lm | 1200lm | 1500lm | 1800lm | 2400lm | 3600lm |
| Color Index | Ra>80 |
| Power Factor | PF>0.9 |
| Input Voltage | AC100-240V 50~60Hz |
| Color Temperature | WW:2700K NW:4000K CW: 6500K |
| Operating Temperature | -20°C~+50°C |
| Life Span | 30000Hours |
| Warranty | 3 Years |
| Certification | CE,RoHS,UL,SAA,C-tick |
The LED Down Light, is the product of the improved development of the application of new LED lighting on the basis of traditional down light and traditional down lights contrast with the following advantages: good energy efficiency and low, long life, color, fast response. LED Down Light, the design more beautiful light installation to maintain the architectural decoration of the overall unity and perfect, does not destroy the setting of the lamp, the light source hidden inside the building decoration, the light source is not exposed, non-glare soft, uniform visual effect. LED Down light is embedded into the ceiling light shooting style lighting. The Square LED Down Light, are directional lighting, only it is the antithesis to the light beam angle within the condenser, the light is more concentrated, strong chiaroscuro. More prominent of the illuminated objects, luminance higher, bring out the quiet atmosphere.
1.Features
1) Body : Delicate and beautiful appearance, Compared to traditional LED heat sink, The Fans-Cooling dissipating area is bigger, air convection is better, the temperature will be lower at least by 8ºC than common design, the weight of the cooling structure is lighter , only 50%-60% of the traditional cooler.
2) Cover : The cover adopt fire-proof material, light transmittance up to 93%.
3) Chips : It made of 1w Epistar chips , Efficiency is 100 LM/ W.
4) Driver : Input 85-265V, Adopt series circuit, with function of automatic protection circuit.
5) Quality : Long lifetime up to 50,000 hours, certificate CE, ROHS, FCC, SAA, C-Tick.
2.Applications
1. Residential lighting
2. Office lighting
3. Hotel Lighting
4. Display case lighting
5. Under cabinet lighting
6. Art lighting
7. Accent lighting
Zhejiang Zeeten Lighting CO., Ltd. Was established in 1996, is located in central Zhejiang Province famous tourist destination Xishiguli---Zhuji. The company specializes in the manufacture and sale of LED lighting series, all of the products have passed the CQC, CCC, CE, RoHS certification, energy certification, ISO9000 certification, with a number of patents, "zeeten"has been named Shaoxing famous trademark. The company consists of R & D center, exhibition center, laboratories, employing Zhejiang University, Shanghai Jiaotong University professors as the company's annual technical adviser, has advanced LED automated productions and testing equipments. To introduce and cultivate a focused, professional, loyal engineer technician team. Zeeten lighting manufactures, sales of household, commercial, office, industrial, outdoor, sports stadiums, roads, bridges, tunnels and other full range of LED products.
Zeeten lighting hold on the concept of "longsuffering light". "Green, friendly, timely, satisfaction, rest assured" brand core values in order to take the responsibility of improving the lighting quality and value of the property consumers constantly.
Adhere to the brand development, strive for the customers, the employees, the company to pass the toughness, create value and improve the value. Zeeten lighting strive to build itself into an outward has the tough of the "Shape", has the inherent flexibility of the "Core", with a tenacious spirit of "Ambition" personality famous lighting brands.
Currently, the "zeeten" LED lighting series products have been endless supply of domestic and international markets. Zeeten lighting will always combine distinctive brand personality, advanced manufacturing technology and forefront management philosophy. Promote the enterprice spirit "honesty, professionalism, tenacity, learning, innovation ". To make more contribution to the society on the energy-saving lighting causes.
