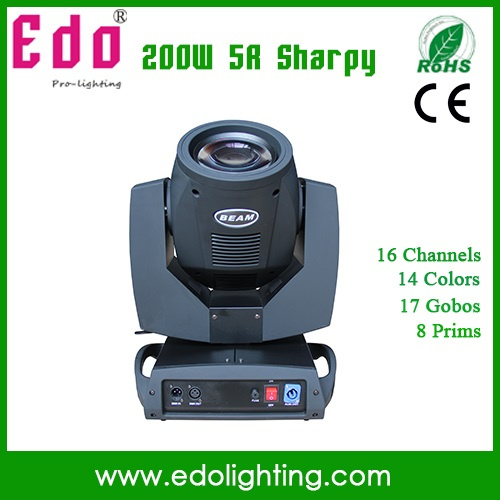

2015 Hot sale Free shipping 200W 5R beam light sharpy dj light disco moving head light
1. Voltage: AC100/240V, 50/60Hz
2. Power: 230W
3. Lamp source: 189W 5R lamp
4. Color Temperature: 8000K 2,000h
5. Control Mode: DMX512
6. Channel: 16CH
7. Single input: 3 Core XLR
8. Single Output: 3 Cores XLR
9. Pan scan: 540° (16bit) Electric correction
10. Tilt scan: 270° (16bit) Electric correction
11. Zoom
12. E-ballast
13. Super silent
14. 8-facet prism with zoom function
15. Blue touch screen
16. Color Wheel: 14 Color + White, Single rotation rainbow effect, two
17. Gobos: 18 gobos + white, Double rotation rainbow effect
18. Strobe: 13 t/s, free strobe and Pulse strobe
19. DMX 0-100% linearly adjustable zoom
20. HOUSING: Composite plastic, IP20
21. Package: 1. Carton with protected foam inside
2. Double flightcase
22. Carton Size: 450*420*550mm
23. N.W: 16KG G.W: 18kg
24. Standard Accessories: G clamps, 2 pcs; Signal cable, 1 pc; Holder, 2 pc;
Channel List
CH | DMX Value | Function | Note |
1 | X | 000-255 | X -0-540° Pan | |
2 | Y | 000-255 | Y -0-270° Tilt | |
3 | X Fine | 000-255 | 0-2.1°X Pan Fine | |
4 | Y Fine | 000-255 | 0-1.0°Y Tilt Fine | |
5 | X/Y Speed | 000-255 | XY Speed | |
6 | Atomization | 0-255 | Atomization | |
7 | Strobe | 000-000 | Off | |
001-050 | On | |
051-240 | Strobe from slow to fast | |
241-255 | On | |
8 | Dimmer | 000-255 | 0-100% dimmer | |
9 | Color | 000-008 | Open | |
008-015 | Color 1 | |
016-023 | Color 2 | |
024-031 | Color 3 | |
032-039 | Color 4 | |
040-047 | Color 5 | |
048-055 | Color 6 | |
056-063 | Color 7 | |
064-071 | Color 8 | |
072-079 | Color 9 | |
080-087 | Color 10 | |
088-095 | Color 11 | |
096-103 | Color 12 | |
104-111 | Color 13 | |
112-127 | Color 14 | |
128-191 | Color wheel CCW rotation from fast to slow, Rainbow effect | |
192-255 | Color wheel CW rotation from fast to slow, Rainbow effect | |
10 | Color Effect | 000-127 | Motor speed fine | |
128-255 | Motor speed fine | |
11 | Gobo | 000-006 | Open | |
007-013 | Gobo 1 | |
014-020 | Gobo 2 | |
021-027 | Gobo 3 | |
028-034 | Gobo 4 | |
035-041 | Gobo 5 | |
042-048 | Gobo 6 | |
049-055 | Gobo 7 | |
056-062 | Gobo 8 | |
063-069 | Gobo 9 | |
070-076 | Gobo 10 | |
077-083 | Gobo 11 | |
084-090 | Gobo 12 | |
091-097 | Gobo 13 | |
098-104 | Gobo 14 | |
105-111 | Gobo 15 | |
112-118 | Gobo 16 | |
119-127 | Gobo 17 | |
128-191 | Gobo wheel CW flowing with increasing speed | |
192-255 | Gobo wheel CCW flowing with increasing speed | |
12 | Gobo Shaking | 000-000 | None | |
001-191 | Shaking from slow to fast | |
192-255 | No shaking | |
13 | Focus | 000-255 | Focus from near to far | |
14 | Prism | 000-031 | None | |
032-255 | Prism | |
15 | Prism Rotating | 000-127 | Prism and gobo macros effect | |
128-191 | Prism clockwise shaking, speed from slow to fast | |
192-255 | Prism counterclockwise shaking, speed from slow to fast | |
16 | Reset | 100-105 | Time delay to off | |
200-205 | Time to delay to on | |
205-255 | Reset | |
1. 10 years professional moving head light manufacture, whose products export to 60 countries;
2. High quality control with CE, RoHS, ISO9001;
3. Professional R&D team, products with our own mould and software system;
4. Simple design structure, much more easier for maintain
5. Checking every part carefully before next step; and testing 48 hours before shipping;
6. International Quality; Chinese Price;
7. Sincere Service(Effective pre-sale communication + Good after sale Service)
8. On-time Delivery;
1. All items will be shipped within 1-3 business days after the payment finished.
2. All items will be shipped via DHL/TNT/Fedex, which normally takes 7-15 days to arrive.
3. International shipping requires more complicated shipping procedures(such as both countries customs, transit stations etc.), also will effect by many factors, such as holidays, weather conditions etc, so it will probably take longer time for your items to arrive at the final destination. Thank you for your understanding on this matter.
4. Import duties, value added taxes and any other charges are not included in the item price or shipping costs.
1. If you haven't received your item and this situation lasts to the 35th day, please do contact us. A FULL REFUND will be issued to you with NO EXCUSE. We do not want to give you a bad buying experience even when the shipping is out of our control.
2. We sincerely hope you can leave a positive comment and Detailed Seller Ratings if you like it and appreciate our customer services. Thanks for your time and cooperation.
3. Please contact us first before leaving any NEGATIVE Feedback, or raising any DISPUTES to Aliexpress. We guarantee to solve your problems in a way you'll be satisfied!
1. If there is the problem with the products ,firstly you need send the picture or the video to us ,
then let us make sure what's problem about the products ,if the problem can use the part to solve ,
we will offer you the replacement as appropriate.(the relevant delivery cost should be on buyer's account.)
2. We can send you some parts of the products for free in case that when there is a problem you can change it by yourself or by other technical person. But the parts usually be send with your next order, if not, the delivery cost is on you.
1. Customer feedback is very important to us.
2. Please contact us immediately BEFORE you give feedback.
3. If there is any issue with your purchase. We maintain high standards of excellence and strive for 100% customer satisfaction!
Guangzhou Yuexin Lighting Co., Ltd is one of the most famous manufacture since 2004. Our products is passed CE, ROSH, UL test.
The main production line of Yuexin Lighting include: LED Moving head light, Beam moving head light, LED PAR light, LED wall washer, etc.
Our products export to more than 52 countries, Europe, North American, Asia, South America.
