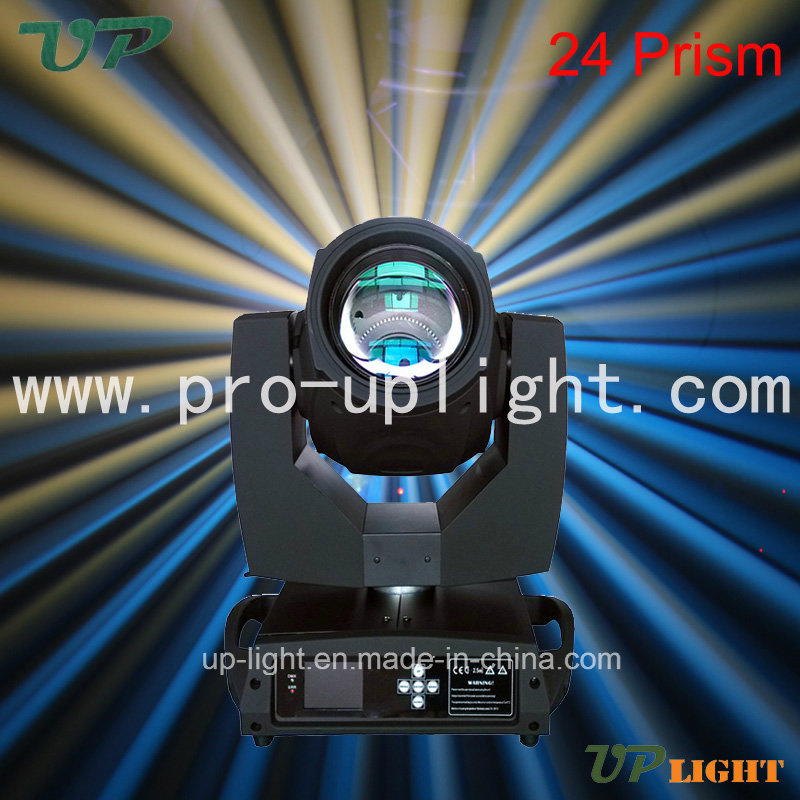

2015 Hot 200W Sharpy 5r Moving Head Light
| Price: |
US $ 400-500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
2015 Hot 200W Sharpy 5r Moving Head LightYoutube Beam Demohttps://youtu.be/9ILMNZMzj-Q https://youtu.be/-UZwem5vDlI24 Prism Effect
Beam Effect
Tech Spec:
Input voltage: 100-240V, 50/60Hz;
Machine Power: 350W;
Light source: Philips MSD Platinum 5R with 189W;
Color temperature: 8000K;
Average lifetime: 2000 hours;
Color system: One color wheel with 14 different inner color fitters plus white.
Color fitters can be changed;
Gobo system: One fixed Gobo wheel with 17different inner gobos with shaking function;
Lens: 3PCS PHILIPS lens group with electronics zooming 0~3.8 degree
Strobe: Support mechanical strobe & adjustable speed stobe effect;
Prism: 8-faced prism with rotation;
Frost: 0%~100% linear frost;
Beam angle: 0° ~8 ° ;
Control mode: DMX512 signal control with 3 pin interfaces & LCD display with 16CH;
Ballast: Electronics ballast and AC/DC power supply. Power factor is more than 99%, THD<20%;
Head movement: Horizontal: 540° , 8bit/16bit precision scanning with auto position correction; Vertical: 270° , 8bit/16bit precision scanning with auto position correction;
Environment temperature: -15° C ~45° C;
Shell material: Aluminum alloy composites plastic, IP20;
Package size: 523*337*511mm;
Gross weight: 19KG
Applicaiton: UP-B200M moving head light is a best choice for stage lighting of TV Studio, theater, opera house,
Auditorium, fashion T stage, vocal concert, club, disco at present with good quality light and small size.
It is brighter than beam 300. It is 100% high copy Claypaky. Production
| CH8 | CH8 | Frost |
| CH9 | CH9 | Focus |
| CH10 | CH10 | Pan fine |
| CH11 | CH11 | Tilt |
| CH12 | CH12 | Tilt fine |
| CH13 | CH13 | Retain |
| CH14 | CH14 | Reset |
| CH15 | CH15 | Lamp on/off |
| CH16 | CH16 | Pan/tilt speed |
| CH17 | Color wheel speed |
| CH18 | Reset |
| CH19 | Dimmer/prism/frost speed |
| CH20 | Gobo wheel speed
|
| Prod Model: |
UP-B200MI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ballast: |
E-Ballast |
| Display: |
LCD Display |
| Color: |
14 Colors + Open |
| Gobo: |
17 Gobos+Open |
| Lens: |
3-Lens Group (Glass) |
| Material: |
Aluminum Alloy |
| Emitting Color: |
Changeable |
| Strobe: |
Combined Type Double Strobe |
| Control Mode: |
Dmx Signal Control |
| IP Rating: |
IP20 |
| Certification: |
RoHS |
| Light Source: |
Philips Msd Platinum 5r |
| Control Channel: |
16CH or 20CH |
| Voltage: |
100~240AC |
Uplight Stage Equipment (Guangzhou) Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments. The main products include moving lighting, LED stage equipments, follow spot, laser light, gobo light, etc.
We own a professional R&D team, who has 10 years experience in stage lighting. Our sales team can provide best service by engineers and technical staff members' supporting. We passed the ISO9001: 2000 quality management system standard as well. There are numerous domestic projects we have been undertaken, was praised by all the customers.
To become the leading stage lighting supplier on a global basis. We view our customers as the most important element in our business, strive to exceed the customer's expectation.
