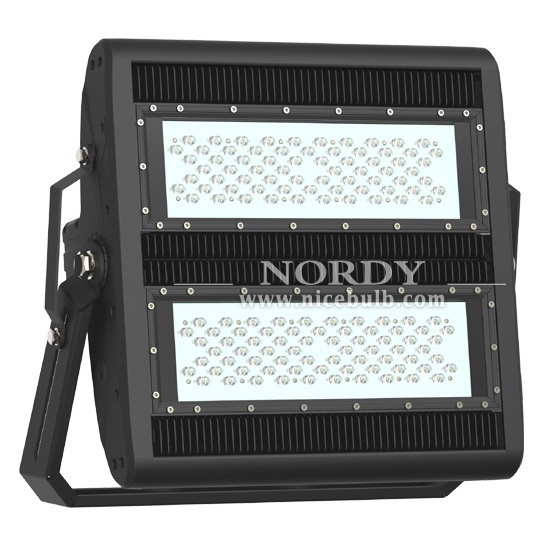

2015 High Quality Outdoor Lighting 400W LED Flood Light
LED Driver
Meanwall HLG-240H-A 2pcs
Input Voltage
90-305 VAC, 50/60 Hz
LED Chips
Philips Lumileds/Cree/LG/OSRAM
LED QTY
200 pcs
LED Power
400W
Total System Power
440W
Led Luminous Efficiency
130-140lm /W
Light Lighting efficiency
≥110 lm/W
Led Initial Luminous Flux
44000 Lm
Illuminance Uniformity
>0.8
Color Temperature
3000K-7000K
Color Rendering Index
Ra<=70
Light Distribution
Symmetric/Rectangle (60*135 degree)
Illuminance Design
LED+lens
LED Junction Temperature
≤70ºC (@ Ta=30ºC)
Working Temperature
-40ºC ~ 45ºC
Working Temperature
-25ºC ~ +65ºC
IP Rating
IP65
Net weight
≈ 14.0 Kg
Life-span
>50000H
Power Cable
OEM
General Information
Unique fin aluminium heatsink greatly reduce product weight and guarantee the safety usage,
as well as to avoid the material wastage comparing with conventional die-cast or extrusion heatsinks.
By increasing the number of fins to enlarge the area of heat dissipation and air flow,
this new heatsink significantly increase the efficiency of thermal conduction with less material usage and more saving on energy. It is the best solution of LED flood lights
Key Features
Proprietary thermal management design to ensure low LED junction temperature
Extremely light weight to enhance the safety use and installation
Full product portfolio up to 600W, with luminous flux of up to 60,000 lm
LEDs from Lumileds, Cree or Edison, with Meanwell drivers, up to 5 years warranty
Available in various optical beam profiles, including 15° to 60° round, 65°×135° symmetric rectangular, and 85°×135° asymmetric rectangular
Design Innovation
Air ventilation design and distributed heat source
- Very effective air flow across the heatsink
- Bring the heat away by natural convection
- Largely spread the heat source and thus lower temperature
Fold-Fin Heatsink (FFH) Technology
- Formed by Aluminum sheet metals
- Fully automated production
- Resulting in large surface area and less weight
Flexible Optics and Mounting Design
- Available in various optics (round and rectangular profiles)
- Easy mounting bracket design
Package & Shipping
1.Take out the lights from packing box
2.Fix the light on mounting frame and keep stable placement. For safety, make sure the power cables are
connected by electricians. The power cord is 1.0MM2triple shield wire, the brown is live wire, blue is neutral
wire, and yellow/green is earth wire.
2. Maintenance / Repairing Instructions:
*Make sure the power has been turned off before maintenance or repairing.
*Clean the glass cover regularly to maintain high transmission of light.
*Clean up the dust from the glass cover and heat-sink regularly to keep sond heat dispersion.
*Be careful not to use water or corrosive solution for cleaning, preferably with a dry cloth.
*When install or replace power supply, directly open the back cover with a screwdriver, then remove the
power supply
NORDY ELECTRON Co., Limited was founded in 2009 in Dongguan City, Guangdong Province China, "nicebulb" is a registered trademark. Our company has about 150 staffs, including 15 engineers and technicians and 6 management staff. The factory area is about 3000 square meters, the annual output at least is two hundred thousand sets of LED outdoor lighting. The main market is Europe, accounted for about 50% of total sales.
NORDY main product is the architectural lighting, outdoor landscape LED, including LED floodlights, LED high bay lights, LED garden lights, LED underground lights, LED underwater lights, superior lighting products of market, shopping mall LED tube and so on. We adhere to 80% original design and have our own mold, at the same time have testing equipment and standards, all products before leaving factory are must through the standard test, our most of products have passed CE certificate.
The key parts of LED light source products from American CREE, Taiwan Epistar, EDISON.
The company promote new products and updated old products monthly, please pay attention to the company's Web site www. Nicebulb. COM
For more information about our company please contact our sales staff.
