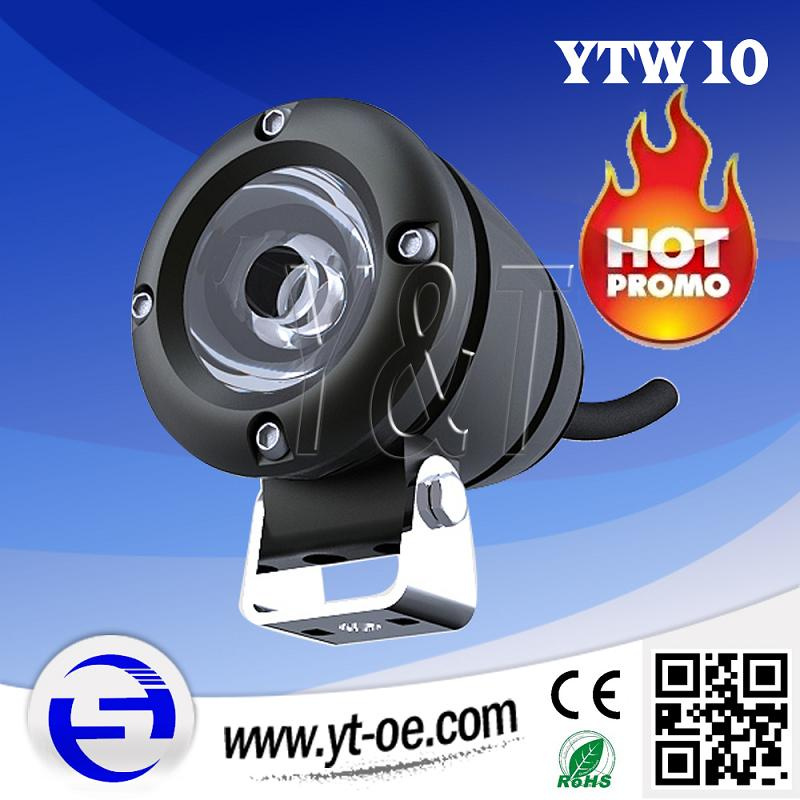

2014 Hot New Waterproof IP68 10W CREE LED Off Road Driving Lamp, Ytw10 Xenon off Road HID Lamp Motorcycle working lamp Cree LED Off Road Lamp
1. YTW10 SLOGAN:
"WORLD-CLASS QUALITY, HALF COMPETITORS' PRICE"
2. FEATURES:
1). Latest Product & Original Design: The YTW10 is designed as a Most Efficient Super-Mini LED Off-Road Lamp Light.
2). Wide Input Voltage: DC10~30V, which is suitable for different types of vehicles.
3). CREE High Performance LED chip: Ensure the long lifespan and superior illumination & stability.
4). High Luminous Efficiency: Output over 950 Lumen High Brightness Light, equivalent to 110W Halogen Light!
5). Materials: Pure Aluminum Housing + Virtually Unbreakable PMMA Lens + Stainless Steel Mounting Bracket with IP68 Rate, while the Aluminum face plate acts as radiant heat sink and can melts snow and ice.
6). Environmental-Friendly: Energy saving, no UV and IR radiation, Shock-Proof and Anti-Corrosion.
3. APPLICATIONS:
YTW10 New LED Working Off Road Lamps Series are widely applied in Motorcycles, Dirt bikes, ATVs, UTVs, Off-road Vehicles, Excavators, Trucks, Mining, Tunneling & Caving Equipments, Road Construction, Outdoor Emergency Lighting, Ambulance & Fire Engine, Trains and Tanks etc.
4. CERTIFICATES:
CE, RoHS, EMC, Waterproof, Shockproof, Anti-Corrosion, Anti-Vibration, Salt Fog Test, High&Low Temperatures Test. Etc
5. KEYWORDS:
KEYWORDS: Y&T New Rage CREE LED Offroad Lamps Work Light YTW10 for Dirt Bikes, Motorbikes, marine boats, 4X4 off raod vehicles, motorcycle, utvs, atvs, trucks, 4WD 4X4 auto cars, engineering vehicles(excavator, treedozer, road roller, bulldozer, crane and mining truck etc. ), special vehicle(fire engine, police cars, rescue vehicle, communication vehicle, military command vehicle), forklift, trains and tanks.
|
Technical parameters |
|
Model NO. |
YTW10 |
|
Input voltage |
DC10~30V |
|
Constant Current |
900mA@12V,400mA@24V |
|
Power consumption |
10W |
|
Luminous Flux |
950~1080lm |
|
LED Source |
Cree High Brightness LED Chip |
|
Certification |
CE, RoHS & FCC |
|
Optional Color |
Black |
|
Canning Materials |
Aluminum Alloy |
|
Lens |
Virtually Unbreakable PMMA Lens, Light Transmittance>93%, Heat Resistance>90°C. |
|
Support & Connector |
Stainless Steel mounting bracket with Deutsch socket connector |
|
CCT |
6,000~7,000K |
|
Optional Light Type |
Flood Beam(45deg) / Spot Beam(25deg) |
|
IP rate |
IP68 |
|
Dimension ( mm ) |
51.2(D)* 61.0(W)* 66.7(H) |
|
Working temperature |
-45~105 degree centigrade |
|
Working humidity |
10%~98% |
|
Electrostatic Discharge Threshold (HBM) |
CLASS 2 |
|
Warranty |
1 Year in Normal Use |
|
Applications |
Off Road Vehicles, Motorcycles, Motorbikes, Dirt bikes, Marines, Trucks, Offroad Racing, Automotive, Mining, Agricultural, Forestry, Engineering Vehicles. |
