Features
.Philips-Lumileds LEDs, flip chip technology, single unit's damage won't affect others' normal work;
.Honeycomb briquette effect heat dissipation principle, best thermal management system;
.Designed to last at least 50,000 hours at L70;
.Multiple lighting distributions available;
.Wide power range: 30W~120W;
.Standard color temperatures: 3000K, 4000K, 5000K, 5700K;
.Minimum 70 CRI;
.IP68 modules: highest waterproof level, hot-pluggable, easy for installation and replacement;
.Aluminum housing;
.Multiple housing colors: black, white, grey, blue;
.Easy tool onsite maintenance and repair;
.5-year limited warranty.
Applications
Street lighting, park lighting, roadway lighting, path lighting...

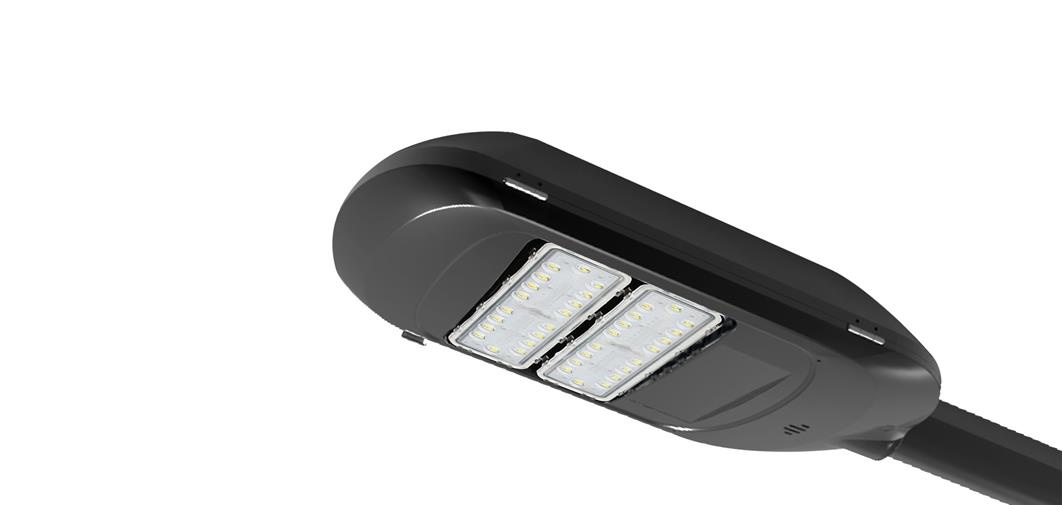

LED Street Light |
Input Voltage | Power Efficiency | Power Factor | Junction Temperature | Batwing Angle | CRI | Working Environment | Storage Temperature |
AC100V-277V | 88-91% | 0.95 | <80°C | ISO-Brightness/Batwing | Ra>70 | -40°C to 50°C 10%-90%RH | -40°C to 50°C |
LED life Spam | Surge Voltage | CCT | LED Chips | Installation Diameter | Body and Shell Material | IP rating |
>50000H | 10KV | 3000k, 4000k, 5000k,5700k | Philips Lumileds | 57-63mm | Aluminium Alloy | LED Module IP68, Power Supply IP67 |
Item | system power | lm/W(Ultra High) | lm/W(High) | Initial Lumens(Ultra High) | Initial Lumens(High) | Product Size(mm) | Packing(cm) | N.W.(kg) | G.W.(kg) | EXW Price |
AR1B-1 | 40 | 105 | 100 | 4200 | 4000 | 500X295X88 | 60X38X18 | 4 | 5.1 |
|
50 | 100 | 95 | 5000 | 4750 |
|
60 | 95 | 90 | 5700 | 5400 |
|
AR1B-2 | 80 | 105 | 100 | 8400 | 8000 | 500X295X88 | 60X38X18 | 4.9 | 6 |
|
100 | 100 | 95 | 10000 | 9500 |
|
120 | 95 | 90 | 11400 | 10800 |
|
1. Prices based on Exw price.Valid date 60 days. |
|
|
|
|
|
2. Payment Term: T/T, L/C |
|
|
|
|
|
|
|
|
|
|
4. Certificate:CE,RoHS,SAA,CB,UL,TUV,CQC,C-TICK |
|
|
|
|
|
|
|
|
|
|
5. Warranty:5 years. |
|
|
|
|
|
|
|
|
|
|
6.MOQ: 1 piece |
|
|
|
|
|
|
|
|
|
|
7.Torlerance for Lumens:±5-10% |
|
|
|
|
|
|
|
|
|
|
8.Packing: 1piece/box, neutral packing. |
|
|
|
|
|
|
|
|
|
|
