Product name:

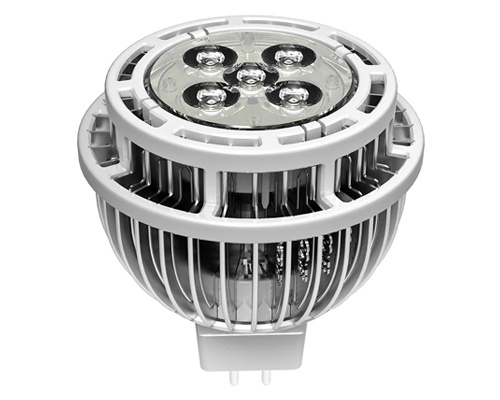

CREE 5*1w LED spotlight, dimmable led spotlight CREE LED, 5*1w spotlight high power LED
CREE 5*1w LED spotlight specifications:
Item No.:OL-MR16-C0502
Power:5W
Luminous Flux:450lm-500lm
LED Brand:Original CREE LED
Input voltage:DC12V
Lamp base:MR16
Color:Warm white,pure white,cool white
CCT:WW:2700K-3000K Pure white:4000K-4500K CW:6000-6500K
CRI:Ra80
Housing Material:Fins aluminium+5 in 1 lens
Lifespan:50,000hous
Warranty:2years
Certficate:CE&ROHS
Package:one piece per colorful box for retail,100pcs/export carton
5*1w CREE LED spotlight advantages:
1. LEDs: American high power Bridgelux LEDs, high lumen output, less light decay.
2. Thermal management: single piece pure aluminum housing has integral heat sink fins to optimize thermal management through conductive and convective cooling.
3. Optical lens: precision-molded propriety acrylic lenses are engineered for superior area lighting distribution, uniformity.
4. Driver: Rubycon driver capacitor, constant current built-in driver, high power factor.
5. Operating temp. : -20~+40 degree.
6. Mercury FREE; Ecological.
7. Estimated lifetime is 50,00hrs or more, Reduced maintenance fee, Cost effective.
8. We offer 2-year replacement warranty from date of shipment.
9. CE & RoHS certified.
5*1w CREE LED spotlight applications:
5*1W LED spotlight are widely use for Home,office,museum, Art galleries, Cosmetic
counters, Shopping malls, Supermarkets,Commercial show windows and bars airport, subway, cloverleaf junction and architecture field.
Parameter |
Input Voltage |
DC12V |
Power Consumption |
5W |
Quantity of LED |
5pcs |
Circuit Protection |
Over-Current Protection, Short-Circuit Protection |
Over-Voltage Protection |
High Voltage Surges Protection |
LED Brand |
Original Cree LED from USA |
Operating Temperature |
-30 o ~+50 o |
LED Spotlight Life |
50,000 hours |
Relevant Certificate |
CE, RoHS, |
Warranty |
2 years |
Optical Data : |
Light Color |
Warm White, White, R,G,B,Y |
Color Temperature |
2800-3000K / 4000-4500K / 6000-6500K |
Beam Angle |
38° degrees |
Lumen/Watt |
450-500lm |
CRI |
Warm white: 80,
Neutral/Cool White: 75 |
Mechanical Data |
Light Type |
MR16 LED Spotlight |
Diameter |
Dia50x49mm |
Base Type |
MR16 |
Housing Material |
Fins Aluminum |
Application Environment |
Indoors |
