Features

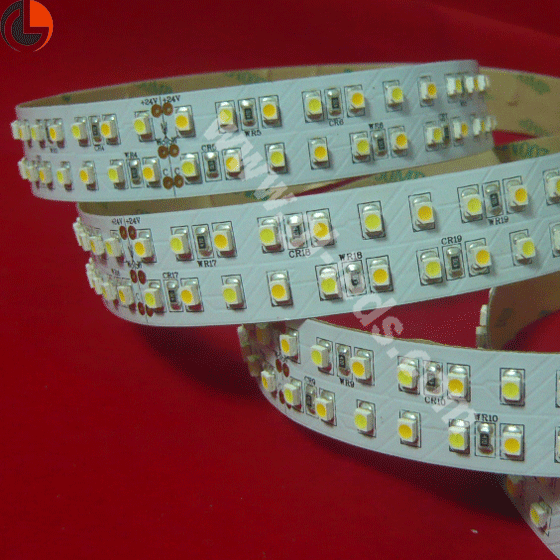

Double row and TOP-SMD 3528 LED as Light source, 120PCS every 0.5 meters.
The use of adjustable luminance and color temp; Compact structure, free bending, arbitrary fixed in bump surface.
Each of the twenty four LED to a group, you can follow any of the above tangent, not damage other truncated.
Input Voltage DC24V; Low voltage operation and high reliability.
The standard length is 5M per roll. Different lengths can satisfy your variable choosing.
Applications
DIY light for home use;
Backlight or edge lighting for sign
Decorative lights for holiday, event, show, exhibition;
Architectural lighting for window, archway, canopy and corridor;
|
Type |
G-L930-DW-000 |
|
Max Power Consumption |
19.2W |
|
Dimension |
500×20mm |
|
Lighting Source |
TOP-SMD 3528 |
|
LED Quantity |
120pcs |
|
Input Voltage |
AC85-265V,50/60Hz |
|
Drive Mode |
constant current / constant voltage |
|
Lumens of eachLED @ 20mA |
5.5~6.5lm |
|
Luminosity |
1150–1250lm |
|
Power factor |
>90% |
|
Color Temperature |
4000-5000K |
|
CRI (Ra) |
60-70 |
|
Beam Angle |
120° |
|
Lumen Attenuation |
<5%@1,000hours |
|
Life Span (LED) |
30,000H |
|
Operation temperature |
-20-40 |
|
Net Weight |
17.3g±0.3g |
