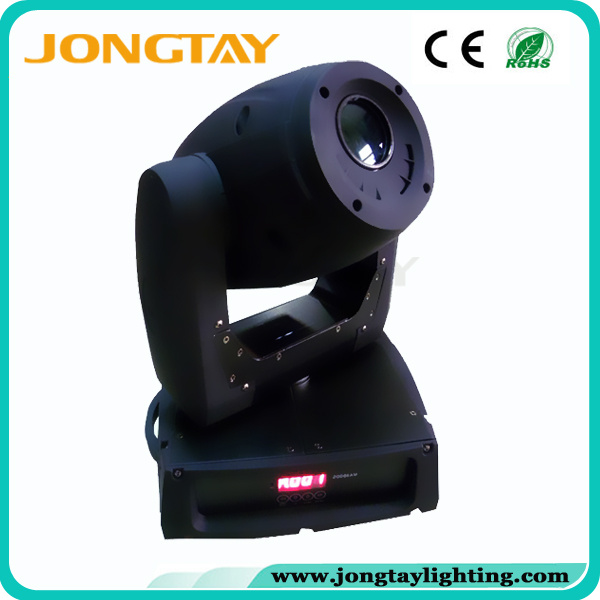

200W Spot Moving Head Light (JT-202)
Technical Parameter:
Voltage: 120V/60Hz or 230V/50Hz
Power: 300W
Dimensions: 335mm X 310mm X 448mm(4PCS/flycase)(price including one flycase)
Weight: 27 Lbs. / 12 kgs.
Fuse: 5A (120V) / 3A (230V)
Micro-Stepping Motors for Smooth Color and Gobo Transitions
2 Modes of DMX-512 Protocol Compatible (11 DMX Channel Mode or 13 DMX Channel Mode)
Independent Gobo and Color Wheels
8 Rotating Gobos + Spot All Replaceable (4 X Metal 4 X Glass)
8 Colors, Plus White - With Rainbow
RDMX - Lets you set the DMX address from any DMX Controller
3 Operating Modes - Master/Slave; Stand Alone; Sound Active
Internal Microphone
Philips® Platinum 5R Discharge
Edit and Save Scenes into the Memory
Manual Focus Lens
360/540 Pan Movement 270 Tilt Movement
Digital Display for Address and Function Setting
Lamp: Philips® Platinum 5R Discharge
Colors: 8 Plus White
Gobos: 8 Rotating + Spot - All Replaceable
14mm Outside/ 8mm Viewable
4 X Metal, 4 X Glass
Duty Cycle: None
DMX: 11 or 13 Channels
Sound Active: Yes
Working Position: Any Safe, Secure Position
Warranty: 1 Year
We shall be glad to have your specific inquiry,
Thanks for your browsing, have a nice day!
|
Channels |
Value |
Function |
|
1 |
0-255 |
Pan Movement |
|
2 |
0-255 |
16Bit Pan Movement |
|
3 |
0-255 |
Tilt Movement |
|
4 |
0-255 |
16Bit Tilt Movement |
|
5 |
0-255 |
Color Wheel |
|
6 |
0-255 |
Gobos Rotating |
|
7 |
0-255 |
Rotating Gobo |
|
8 |
0-255 |
Prism Rotating |
|
9 |
0-255 |
Rotating Prism |
|
10 |
0-255 |
Focus |
|
11 |
0-255 |
Strobe ,Shutter Close/open function |
|
12 |
0-255 |
Dimmer |
|
13 |
0-255 |
Speed Control |
|
14 |
0-255 |
Special Control |
