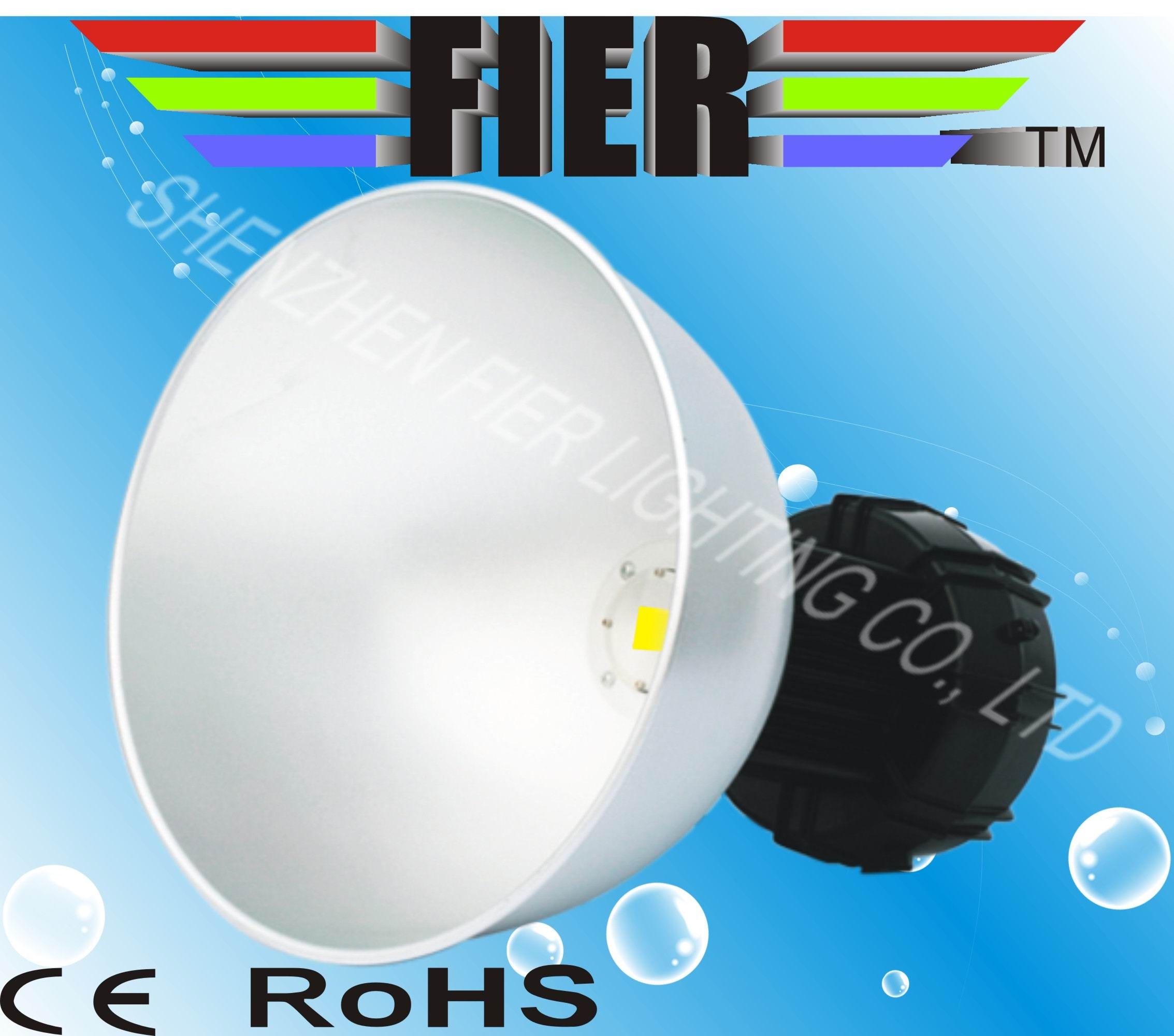

LED high bay light
We produce LED light\LED lighting\LED high bay light.
Specification:
Model: FEI103
Input Voltage: AC85V~265V
Freqency Range: 50Hz/60Hz
Total Harmonic Distortion: ≤ 9%
Power-factor: >0.9
Power Efficiency: >86%
LED Working Voltage: 30-36Vdc
LED Quantity: 1PC
LED Consumption: 80W
System Consumption: 86W
LED Efficiency: 60-100LM/W
Initial Flux: WW/5600LM; NW/5900LM; CW/5660LM
Luminaire Efficiency: >80%
Average Illuminance:
Height: 6M 243LUX
Height: 8M 137LUX
Height: 10M 88LUX
Illuminance Area (Light Spot)(Round):
Height: 6M / 4.1m
Height: 8M / 5.8m
Height: 10M / 7.3m
Illuminance Uniformity: >0.7
Color Temperature: WW/2700-3900K; NW/3900-6000K; CW/6000-7000K
Color Rendering Index: WW/Ra>68; NW/Ra>75; CW/Ra>75
Light Distribution: Symmetry / light spot (round)
Light Design: LED+reflector secondly light distribution
Juction Temperature: ≤ 80° C
Operation Temperature: -40° C~+55° C
Storage Temperature: -25° C-+55° C (25° C is best-fit)
IP Rating: IP65
Working Life Span: 50000Hours
Power Line: 0.75mm2 three-core cable
Connect Wire: Brown/L; Blue/N; Yellow, Green/G
Housing Color of Lamp Head: Black/ Silver (optional)
Certification: CE&RoHS
Shenzhen Fier Lighting Co., Ltd., is located in the beautiful and open city Shenzhen, Guangdong Province, P. R. China. The company is formerly known as Zhuzhou Fei-hong Industrial Co., Ltd., Shenzhen Branch, which was established in 2004, and successfully rooted in LED industry in Shenzhen in 2009. Shenzhen Fier Lighting Co., Ltd., is a professional manufacturer who specializes in R&D, producing and exporting indoor and outdoor high power LED lamps. The products are produced with CE & RoHS approval which include downlights, flood lights, ceiling lights, spotlights, light bulbs, gem lights, wall lights, wall washers, tunnel lights, high bay lights, market lights and so on. All the light sources have brands in CREE, SSC, LUXEON and EDISON.
The main advantages of FIER LED lights are energy-saving, environmentally-friendly, high-efficient, long lifespan, practicability and unique radiator design. Our company management system is according to ISO9001: 2008. We have also developed some die-casting LED lamps which integrated with PC and aluminum materials. All the products go through the strict quality controlling procedures and aging test process to make sure all the lamps can work well.
The great advantage of FIER products is their various types which allows to be used at various occasions, such as hotels, stores, villas, museums, business centers, etc. With excellent quality, reasonable price, rapid delivery time and all-round after-sale services, FIER lamps have been well-accepted all over the world.
We always service our customers with the guiding policy as below: "Customer Satisfaction, Customer Reliance". FIER is your top choice about lighting business and hope we will set up business relationship in the near future on the basis of mutual benefit. And the world-wide customers are warmly welcomed to contact and visit us.
