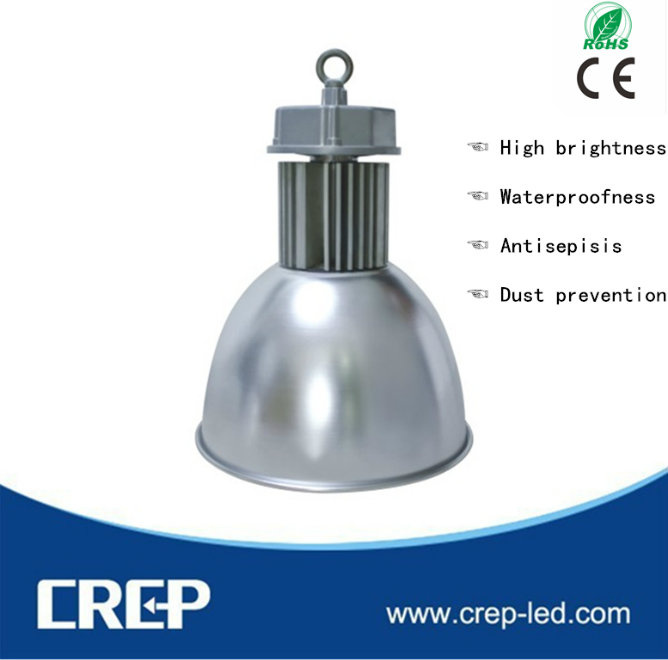

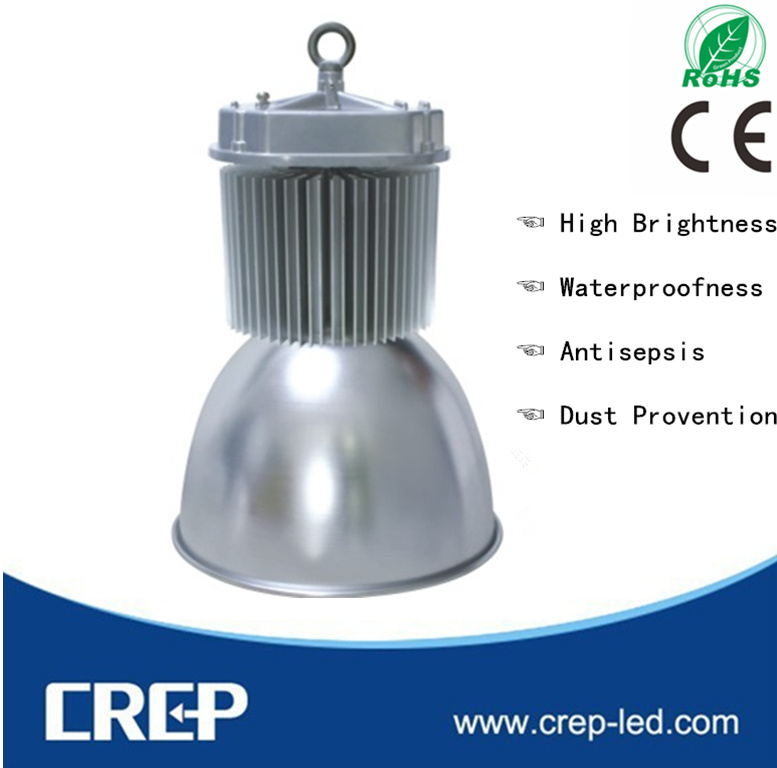

Technical parameters of 200w led high bay lights:
Item No. | CPG-GK-D200W-06 |
Power | 200W |
Luminous Efficiency | 100-120lm/W |
Input voltage | 85 to 265V AC |
LED working voltage | 30 to 36V DC |
Power factor | >0.98 |
Power efficiency | >88% |
Lamp's efficiency | >80% |
Beam angle optional | 45°/90°/120° |
Color temperature | WW: 2, 700 to 3, 200K |
PW: 3, 900 to 5, 000K |
CW: 5, 800 to 6, 200K |
Color rendering index | WW: Ra>80 |
PW/CW: Ra>82 |
LED High Bay Light Illuminance Style:
Model. | Height |
45° Average illuminance | 6m: 245 Lux |
8m: 147Lux |
10m: 95Lux |
45° Illuminance area | 6m: Round light area 8.3m |
8m: Round light area 10.5m |
10m: Round light area 14m |
Illuminance uniformity | >0.4 |
Enviroment Range:
Junction temperature | ≤ 80° |
Working temperature | -45 to +55° |
Storage temperature | -25 to +65°, 25° the best |
IP grade | IP65 |
Working life-span | >40, 000 hours |
Power line | 0.75mm2 three wires |
Connect wire | L\N\G |
Colors of lamp shell | Black and silver |
Certifications | CE and RoHS marks |
Advantages of CREP LED High Bay Light:
1. Using high power LED light sources, multichips integrated single-module design, and imported high brightness semiconductor chips, the lamp is with high thermal conductivity, low brightness declines, pure light color, no shadow etc.
2. with unique heat dissipation and integrative designs to conduct and diffuse heat, thereby reducing the lamp temperature to ensure 40, 000 hours' lifespan. No need to replace lamp for 5 years by using 12-18 hours every day.
3. Obviously energy saving. High-power LED light source equipped with imported high-efficiency power supply to save 60% more than sodium light.
4. Green and eco-friendly, no lead, no mercury, no pollution to the environment.
5. High color rendering. More real display. Colors optional to meet the needs of different environments. Eliminating depression caused by too high or too low color temperature from traditional lights. More comfort for vision to improve working efficiency.
6. Constant current and driver controlling. Wide power supply range (AC85V-265V) to overcome electrical net generated by ballast, noise pollution and light instability, and to avoid stimulation and fatigue to eyes.
7. Excellent decorative effect. Special surface treatment. Colors optional. Easy installation and disassembly. Wide applications.

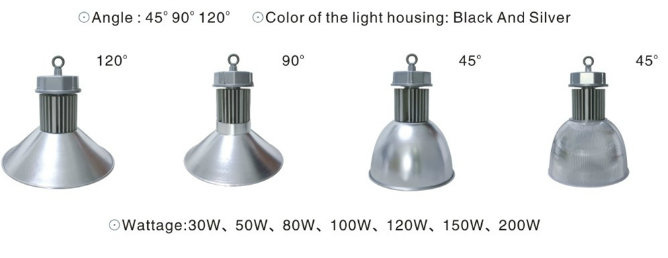

Other optional specs of CREP LED High Bay Lighit:
S/N | Item no. | Size of the product (mm) | Material | Power Consmp-tion (W) | LED QTY (pcs) | LED type | Luminous flux |
|
|
1 | CPG-GK-D30W-01 | φ420*467 | Aluminum alloy+PC (Black/silver covers are available) | 36 | 1 | Bridgelux 30W COB | 2850Lm |
2 | CPG-GK-D50W-02 | φ500*393 | 58 | 1 | Bridgelux 50W COB | 4750Lm |
3 | CPG-GK-D80W-03 | φ420*557 | 92 | 1 | Bridgelux 80W COB | 7000Lm |
4 | CPG-GK-D100W-04 | φ500*473 | 116 | 1 | Bridgelux 100W COB | 9500Lm |
5 | CPG-GK-D150W-05 | φ500*533 | 168 | 1 | Bridgelux 150W COB | 11700Lm |
6 | CPG-GK-D200W-06 | φ420*667 | 220 | 1 | Bridgelux 200W COB | 15600Lm |
Our service1. After sale service
CREP takes the principle of "Customer First, Service Superior" to satisfy our customers in after-sale services. According to different types of our products,we promise to offer 3 years warranty period (except special agreement), in which we provide either free or paid guarantee repairs, detailed items as followed.
If our products have some existence quality problems within 3 months since the date of purchasing, customer can change new product or free components to replace.
2. Warranty period after the 4th month of purchasing date.
Within 24 months, if the LED light power occurs some abnormal issues to make our products can not work normally, we will offer free new power to renew and repair. Changing method can be consulted and determined by particular cases.
Within 36 months, if the LED light occur serious fades or can not work, freely offered newly light source to renew and repair by us. Changing method can be consulted and determined by particular cases.
Note: LED depreciation ratio and other parameters related evaluation should consider the working conditions of LED light and working time calculated within 12 hours per day under a usual working environment.
Company Information:CREP ,a high-tech enterprise & vice-chairman in Shenzhen LED industry association,which is specialized in R & D,production and marketing of LED lighting.We keep working to make breakthrough on LED lighting and till now,achieved more than ten new structure patents and one China invention patent.The main product in application lighting includes LED commercial lighting,LED industrial lighting,LED decorative lighting and LED outdoor lighting.Contact:
We look forward to get an interesting business dialogue with you.
Attn: Jian Cui
Cell: +86 13600170997
Web: www.crep-led.com
Thanks for your time and welcome to inquiry our led indoor lighting products.
CREP, a high-tech enterprise & vice-chairman in Shenzhen LED industry association, which is specialized in R & D, production and marketing of LED lighting. We keep working to make breakthrough on LED lighting and till now, achieved more than ten new structure patents and one China invention patent. The main product in application lighting includes LED commercial lighting, LED industrial lighting, LED decorative lighting and LED outdoor lighting.
Our company passed and strictly enforces the requirements of ISO9001 Quality management system to promote all products through CE, RoHS and FCC and other international safety certification. Some products have passed UL, DLC, TUV, SAA, ETL and PSE certification. We have consistently adhered to the operating principle of "market-orientation, quality-assurance, efficiency-improvement, innovation-motivation, resource-integration, service-first and competitive edge-enhancement", continue to improve corporate operations and product innovation to serve customers. We provide solutions for China domestic market, as well as for overseas countries like Europe, America, Japan, Southeast Asia and so on.
We welcome talents with open mind, fully exert their subjective initiative, and pursue continuous innovation and perfection. Gradually, we set up a highly qualitied team with more than 30 members who are junir and senior R&D professional in LED driver, indutial design, optial design, esthetics and industrial design. Meanwhile, introducing the advanced technology, components, production and testing equipment from Jupan, Germany, the United States and other countries to promote the company's productry-leading level.
CREP will always persist "Sincere Cooperation, Continuous Innovation and Future-challenging" to enhance competitive edge, to provide high quality products and good services for all our customers, and to stick to social returns and social responsibility.
