Features New
phase-change heat sinks rapidly reduce the temperature of the LED chips.,. Philips LUXEON 3030
LED(LM80) , high luminous efficiency, high color rendering index.LUXEON 3030LED
(LM80
),,.
New external driver, easy to heat dissipation, improve driver service life.
.,,. Light health, the light does not contain UV and IR, do not produce the ray radiation.,,.
Green pollution-free, no lead, mercury or other elements of environmental pollution.,,. High performance constant current driver, no stroboscopic, be helpful for protecting eyesight.,,.
Prevent water, clear fog, avoid liquid condensation, waterproof class reached IP65. | Input Voltage/Frequency / | 90-295VAC/47-63Hz |
| Input Current | 0.86 A(230VAC) |
| Output Voltage | 60V |
| Output Current | 0~4A |
| Power Efficiency | >93% |
| Power Factor | PF>0.98/±115VAC PF>0.95/230VAC PF>0.93/277VAC |
Lighting parameters| LED Chips Quantity LED | 208 PCS(Philips LUXEON 3030-8C26B ) |
| LED Consumption LED | 180W |
| System Consumption | 205±5W |
| LED Luminous Efficiency LED | >120Lm/W |
| Lamp's Initial Flux | >24000Lm |
| Color Temperature | 2700K,3000K,3500K,4000K,5000K,5700K,6500K |
| Lamp's Luminous Efficiency | ≥105Lm /W |
| Lumen Maintenance | 70%(50,000Hrs) |
| Color Rendering Index | Ra≥70 |
| Light Design | LED+ reflectors with twice light distribution
LED+ |
| Light Distribution | Please refer to attached Light
distribution curve |
| View Angle | 45°,70°,120°at the beam angle 50% |
| Driver Working Temperature | -40ºC ~ +60ºC |
| Storage Temperature | -40ºC ~ +70ºC |
| IP Rating | IP65 |
| Life-span | >=50,000Hrs(Note4) |
| Materials | Aluminum |
| The color of the lamp shell | Black/Sliver / |
| Mounting | Lifting type |

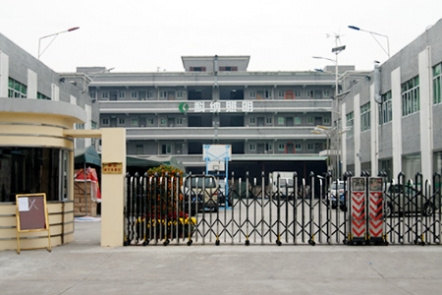

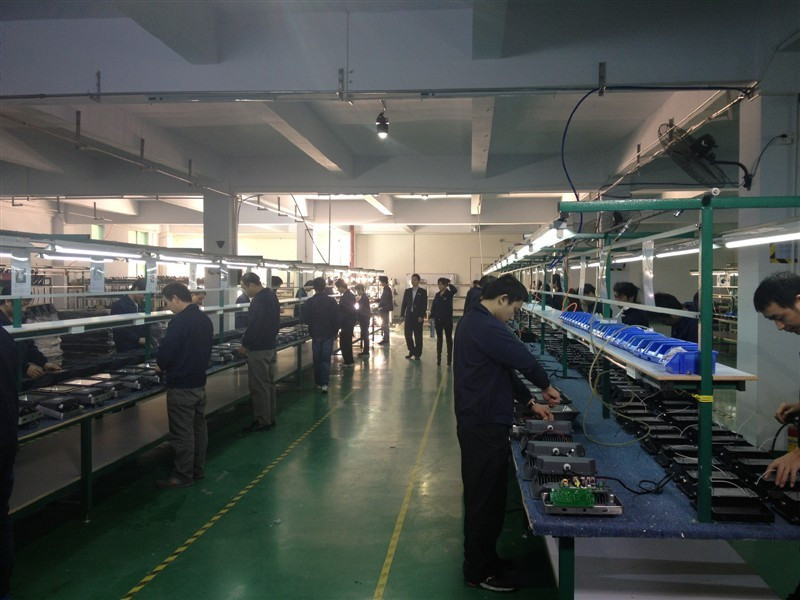

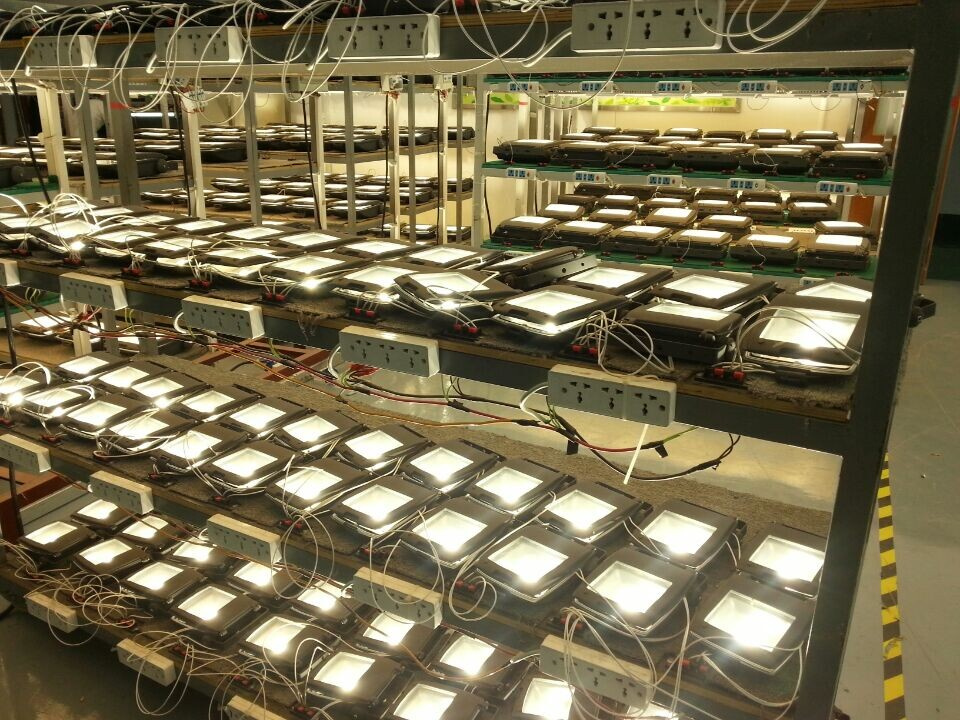

Shenzhen Kena Industry Co., Ltd. is a leader in the high-tech design, R&D and manufacture of LED encapsulation, project lights and aluminum casting for lamp fixtures. With our semiconductor lighting technology, we aim to provide our customers with high efficiency, energy-saving and stable encapsulated LEDs, as well as the perfect design for a wide variety of needs. Our encapsulated LED product line uses DIP LED, SMD and high power LED technologies. Our various products range from street lights, flood lights, spot, high bay and tunnel lights, as well as tube, strip and ceiling lights all the way down to a basic LED bulb. We also design, produce and process related products and made-to-order encapsulated LEDs.
Kena, with innovation and R&D at its core, believes that providing professional LED lighting solutions is its duty. The Kena brand has benefited greatly through its leadership in LED manufacturing and advances in independent intellectual property, following many years of development and interacting closely with customers. Kena has researched and designed LEDs to meet and exceed market demands. With LEDs rapidly becoming the much-needed replacement for traditional incandescent lamps, Kena's cost-effective manufacturing process allows competitive prices for competitive customers.
Kena is known for its ability to innovate in the LED industry; Its strong brand image; Complete industry chain advantage; Advanced production and business cooperation experience; And its professional, scientific and operational management teams. Together these advantages allow for efficient, energy saving, and stable encapsulated LEDs and LED projects lights for our customers, and allowing investors to feel confident in consistently strong returns.
