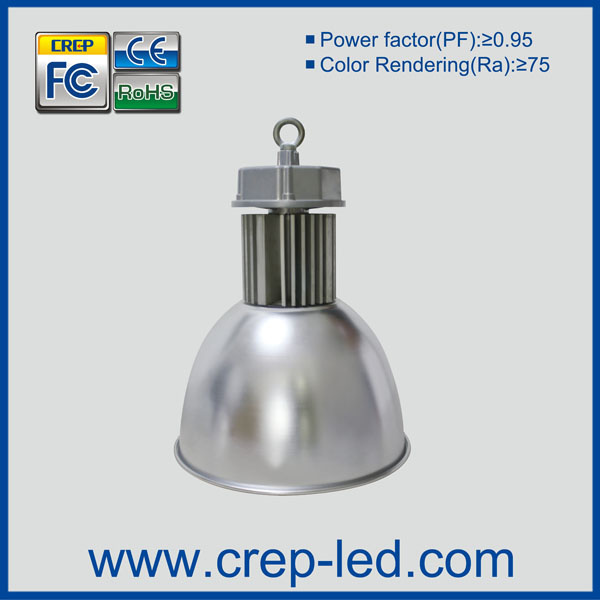

200W LED high bay lamps/lights IP65
LED Power: 200W
Total power: 220W
Input voltage: AC85-265V
LED working voltage: DC30-36V
LED quantity: 1PCS 200W LEDs
LED brand: Bridgelux
LED driver: MEANWELL from Taiwan
Power efficiency: >92%
Power factor: >0.98
Light efficiency: 75-85lm/W
LED high bay lamp material: Aluminium alloy and integrated LED
IP rating: IP65
CE, RoHS certificate with 3 years' warranty
Application of LED high-bay lights:
LED high bay light is also called LED mining light, high brightness, waterproofness, antisepsis and dust prevention.
It is widely used in Industrial and Landscape Lighting places, like factories, workshops, warehouses, store houses, toll stations, filling stations, supermarkets, exhibitions, gymnasiums, parking areas, and other locations.
|
Product name |
200w led high bay lamps/lights |
|
Model NO. |
CPG-GK-D200W-06 |
|
Input voltage |
AC85-265V |
|
Total power |
220W |
|
LED power |
200W |
|
LED working voltage |
DC30-36V |
|
LED quantity |
1pcs |
|
LED brand |
BRIDGELUX |
|
Lumen efficiency |
75-85lm/W |
|
Lamp efficiency |
≥ 87% |
|
Power efficiency |
≥ 92% |
|
Power factor |
≥ 0.98 |
|
Total Harmonic Distortion |
≤ 9% |
|
Beam angle optional |
45, 90, 120° |
Beam angle 45°
Average illuminance |
6m |
245lux |
|
8m |
147lux |
|
10m |
95lux |
Beam angle 45°
Illuminance area |
6m |
ø 8.3m round light area |
|
8m |
ø 10.5m round light area |
|
10m |
ø 14m round light area |
|
Illuminance uniformity |
≥ 0.4 |
|
Color temperature |
WW |
2700-3500K |
|
PW |
4000-5000K |
|
CW |
6000-6500K |
|
Color rendering |
WW |
Ra≥ 68 |
|
PW, CW |
Ra≥ 75 |
|
Working temperature |
-45º C- 55º C |
|
Storage temperature |
-25º C- 65º C |
|
IP rating |
IP65 |
|
Certificate |
CE, RoHS |
|
Warranty |
3 years |
